PRODUCT DETAILS

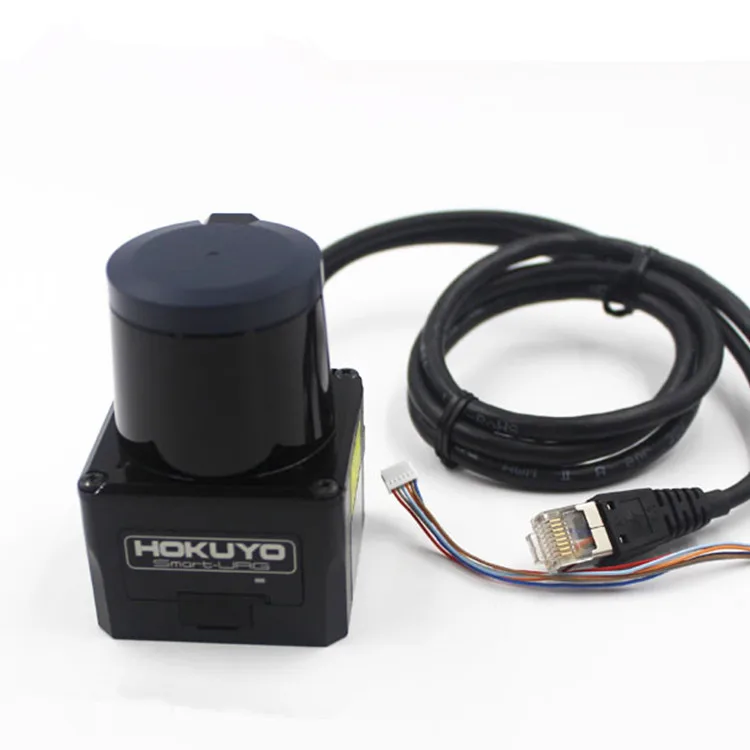

HOKUYO's UST-20LX 2D laser scanning rangefinder product has 20m, 270° measurement range, maximum measurement distance is 60m, DC12V/24V input, 25ms scan time, IP65 protection grade, non-contact measurement. It can be used for obstacle avoidance and position recognition of high-speed motion robots; high-precision, high-resolution, wide-field-of-view designs provide a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight, and low power consumption.
Description
Small, accurate, high-speed scanning laser range finder
Obstacle detection and localization of autonomous robots
Light source: Laser semiconductor (905nm)
Scan speed: 25ms (Motor speed 2400rpm)
Detection distance: 60m (maximum)
Features
Scanning Range : 20m on white sheet and 8m black sheet. (possible up to 60m scanning Range depending on object surface)
270º scan angle, 25ms/scan
12 / 24VDC
Repeated accuracy: σ< 30mm
Application
Navigation and obstacle detection (Guide path planning for mobile robots and autonomous systems)
Object positioning (control docking processes of AGVs, AGCs)
Object Profiling (cargo containers, pallets for loading & unloading)
Object measurement and detection (volume of packages, pallets, flow measurement of bulk materials)
Area monitoring (building security and entrance ways)

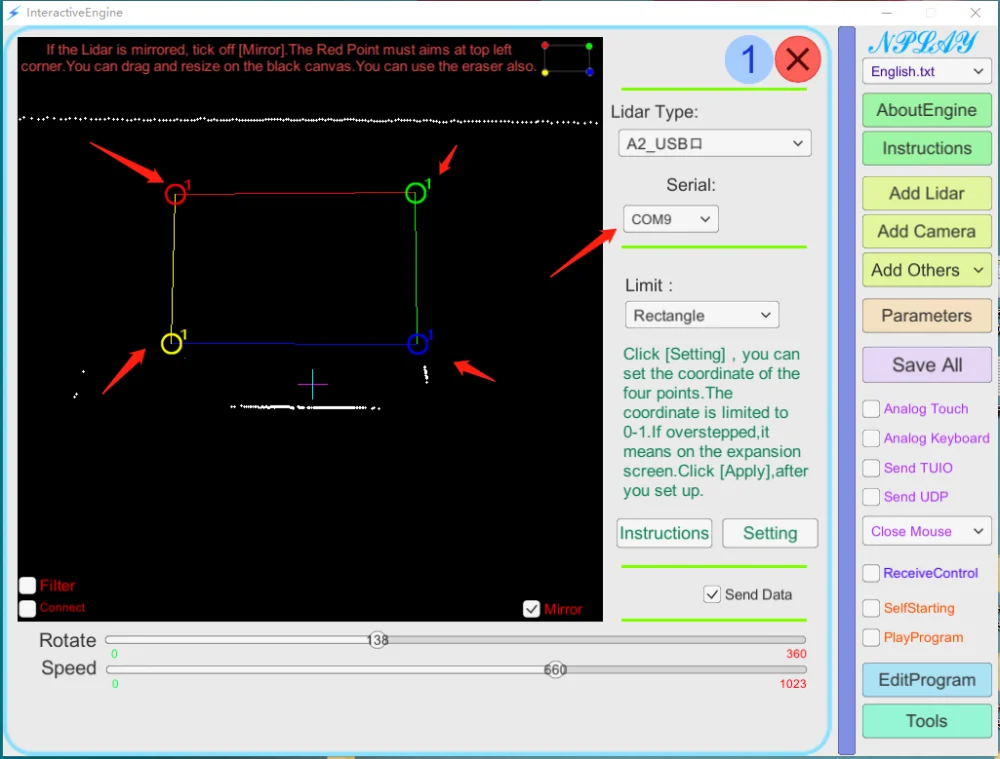

Large screen interactive display
Laser Scanning image
Description
Small, lightweight and accurate sensor
Ranges up to 20m and able to scan a 270° arc
Perfect for indoor applications
Outputs data on an Ethernet 100Base-TX interface
Features
20-meter range with ±40mm accuracy
270º scan angle, 25ms/scan
12 / 24VDC
Ethernet 100Base-TX interface
Measurement Data type - SCIP Protoco
