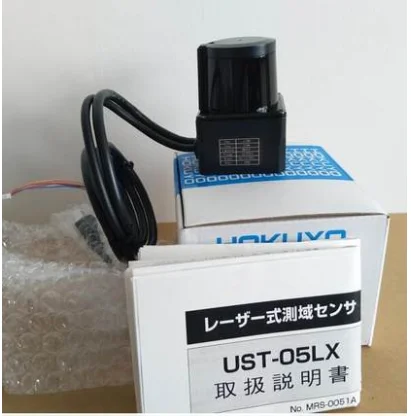

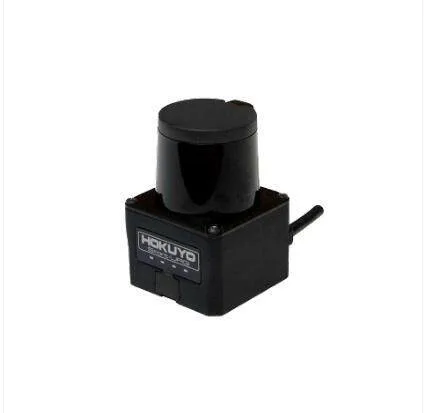

Hokuyo 5 meters UST-05LX Scanning Laser Rangefinder lidar for robot Navigation obstacle avoidance and large screen interaction/wall groud interaction
Model | UST-05LX |
Voltage | DC12/24V （Normal range 10-30V） |
Light source | 905nm，Safety Class 1 (human eye safety) |
Measured distance | 0.06m-5m（90%reflectivity |
Precision | 60 to 5000mm: ±40mm; 1000 to 2000mm: ±3%measured distance |
Repeat accuracy | <30mm |
Scanning Angle | 270° |
Scanning cycle | 25ms |
Scanning frequency | 40Hz |
Angular resolution | 0.25° |
Startup time | Less 10s |
Communication interface | Ethernet 100BASE-TX |
Indicator light | Blue indicator light always on: normal operation blue indicator light flashing: start or failure state |
Working temperature | -10℃-50℃ |
Environmental humidity | Less than 85%RH (no condensation, no frost) |
Resist ambient light interference | Less 15000lx |
Storage temperature | -30℃-70℃ |
Vibration test | Double amplitude 1.5mm 10 to 55Hz, 2 hours per axis |
Impact | 196m/s2, 10 次, X, Y, Z direction |
Protection grade | IP65 |
Weight | 130g |
Size | 50X50X70mm |
