UST-05LX

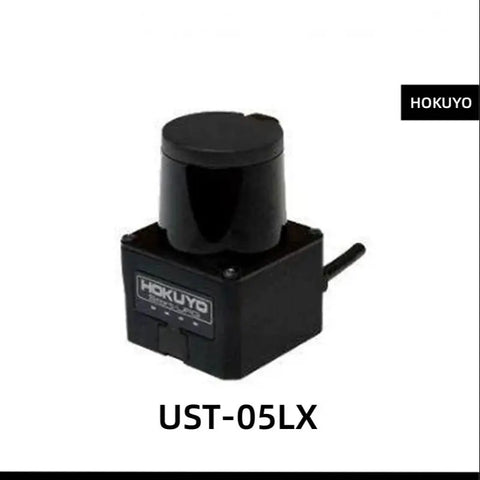

HOKUYO ust-05lx is a 2D laser scanning ranging product newly launched by HOKUYO. It has a measurement range of 5m, 270°, DC12V/24V input, 25ms scanning time, IP65 protection level and non-contact measurement.It can be used for obstacle avoidance and position identification of high-speed moving robot.Large screen projection interaction;The design of high precision, high resolution and wide field of view provides the autonomous navigation robot with good environmental recognition ability.Compact design saves installation space, low weight and low power consumption.

Model	UST-05LX
Voltage	DC12/24V （Normal range 10-30V）
Light source	905nm，Safety Class 1 (human eye safety)
Measured distance	0.06m-5m（90%reflectivity ） 0.06m-5m（10%reflectivity ）；The maximum measured distance is 15m
Precision	60 to 5000mm: ±40mm; 1000 to 2000mm: ±3%measured distance
Repeat accuracy	<30mm
Scanning Angle	270°
Scanning cycle	25ms
Scanning frequency	40Hz
Angular resolution	0.25°
Startup time	Less 10s
Communication interface	Ethernet 100BASE-TX
Indicator light	Blue indicator light always on: normal operation blue indicator light flashing: start or failure state
Working temperature	-10℃-50℃
Environmental humidity	Less than 85%RH (no condensation, no frost)
Resist ambient light interference	Less 15000lx
Storage temperature	-30℃-70℃
Vibration test	Double amplitude 1.5mm 10 to 55Hz, 2 hours per axis
Impact	196m/s2, 10 次, X, Y, Z direction
Protection grade	IP65
Weight	130g
Size	50X50X70mm

UST-10LX

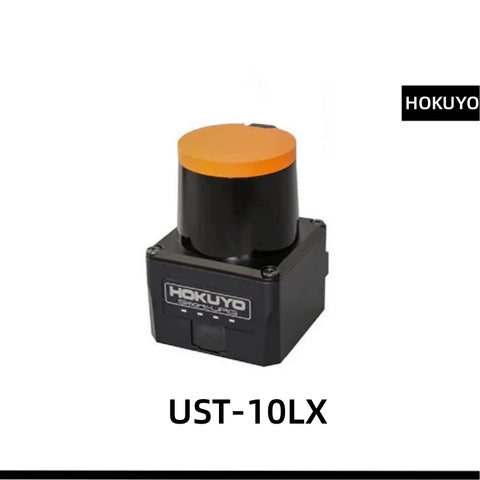

UST-10LX 2D Lidar products have a 10m, 270° measurement range, DC12V/24V input, 25ms scan time, IP65 protection, non-contact measurement. It can be used for high-speed motion robot obstacle avoidance and position recognition; high-precision, high-resolution, wide-field design provides a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight and low power consumption.

l Conventional measuring distance 10m

l Maximum measuring distance 30m

l Angle resolution 0.25°

l Scan cycle 25ms

l Ethernet communication interface

UST-20LX

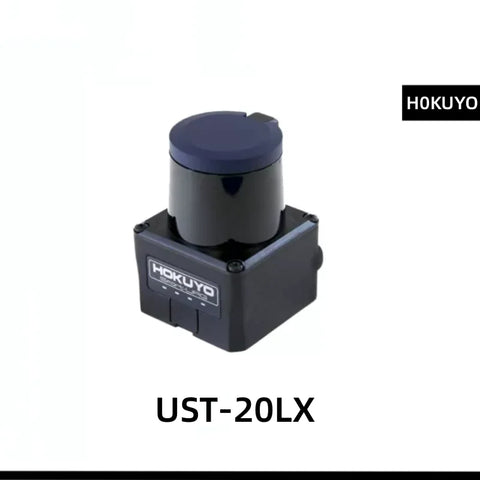

HOKUYO's UST-20LX 2D laser scanning rangefinder product has 20m, 270° measurement range, maximum measurement distance is 60m, DC12V/24V input, 25ms scan time, IP65 protection grade, non-contact measurement. It can be used for obstacle avoidance and position recognition of high-speed motion robots; high-precision, high-resolution, wide-field-of-view designs provide a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight, and low power consumption.

Description

Small, accurate, high-speed scanning laser range finder
Obstacle detection and localization of autonomous robots
Light source: Laser semiconductor (905nm)
Scan speed: 25ms (Motor speed 2400rpm)
Detection distance: 60m (maximum)

Features

Scanning Range : 20m on white sheet and 8m black sheet. (possible up to 60m scanning Range depending on object surface)
270º scan angle, 25ms/scan
12 / 24VDC
Repeated accuracy: σ< 30mm

Application

Navigation and obstacle detection (Guide path planning for mobile robots and autonomous systems)
Object positioning (control docking processes of AGVs, AGCs)
Object Profiling (cargo containers, pallets for loading & unloading)
Object measurement and detection (volume of packages, pallets, flow measurement of bulk materials)
Area monitoring (building security and entrance ways)
Large screen interactive display

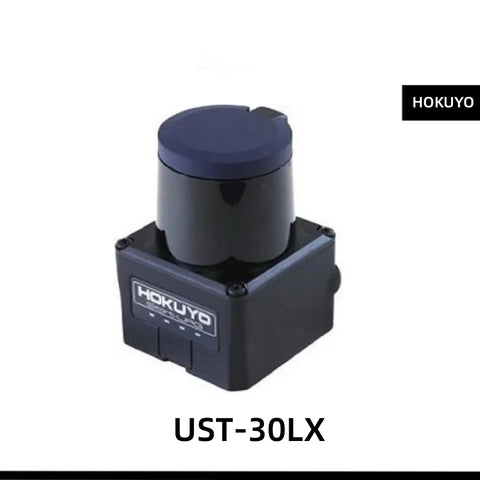

UST-30LX

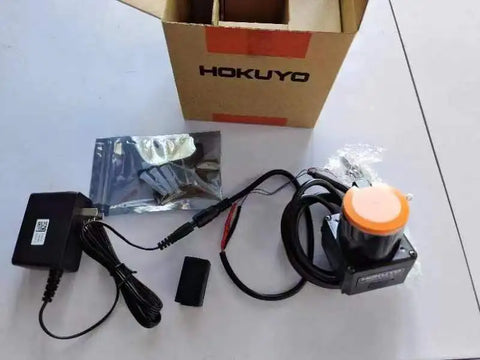

Shipping List:

Shipping List:

HOKUYO lidar UST-05LX UST-10LX UST-20LX UST-30LX for Multi touch screen interaction and Robot AGV Navigation Obstacle Avoidance
