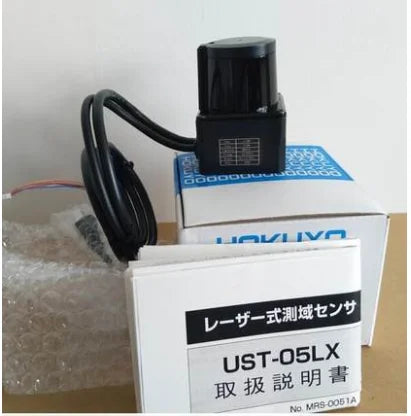

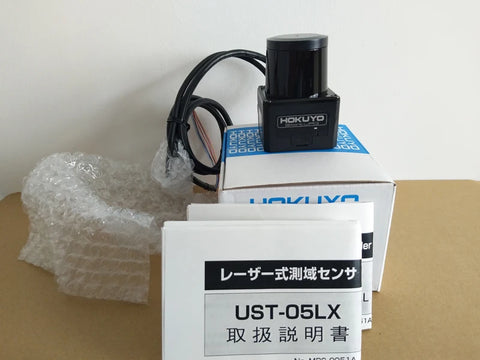

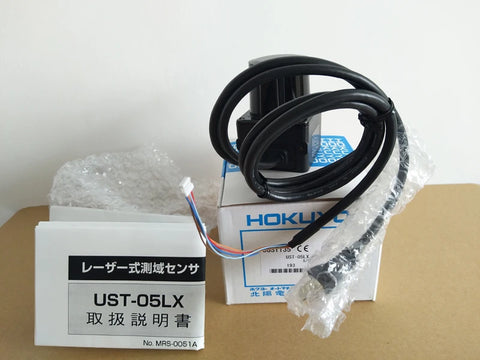

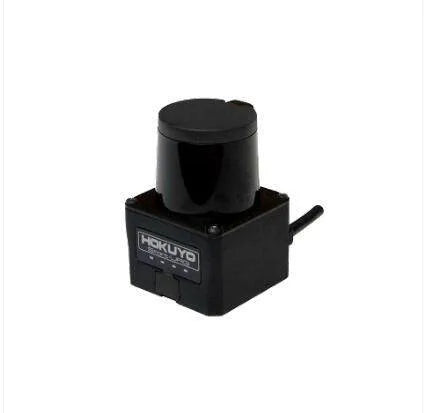

Hokuyo 5 meters UST-05LX Scanning Laser Rangefinder lidar for robot Navigation obstacle avoidance and large screen interaction/wall groud interaction

HOKUYO ust-05lx is a 2D laser scanning ranging product newly launched by HOKUYO. It has a measurement range of 5m, 270°, DC12V/24V input, 25ms scanning time, IP65 protection level and non-contact measurement.It can be used for obstacle avoidance and position identification of high-speed moving robot.Large screen projection interaction;The design of high precision, high resolution and wide field of view provides the autonomous navigation robot with good environmental recognition ability.Compact design saves installation space, low weight and low power consumption.

Model	UST-05LX
Voltage	DC12/24V （Normal range 10-30V）
Light source	905nm，Safety Class 1 (human eye safety)
Measured distance	0.06m-5m（90%reflectivity ） 0.06m-5m（10%reflectivity ）；The maximum measured distance is 15m
Precision	60 to 5000mm: ±40mm; 1000 to 2000mm: ±3%measured distance
Repeat accuracy	<30mm
Scanning Angle	270°
Scanning cycle	25ms
Scanning frequency	40Hz
Angular resolution	0.25°
Startup time	Less 10s
Communication interface	Ethernet 100BASE-TX
Indicator light	Blue indicator light always on: normal operation blue indicator light flashing: start or failure state
Working temperature	-10℃-50℃
Environmental humidity	Less than 85%RH (no condensation, no frost)
Resist ambient light interference	Less 15000lx
Storage temperature	-30℃-70℃
Vibration test	Double amplitude 1.5mm 10 to 55Hz, 2 hours per axis
Impact	196m/s2, 10 次, X, Y, Z direction
Protection grade	IP65
Weight	130g
Size	50X50X70mm

for ROBOT Navigation obstacle avoidance and large screen interaction HOKUYO UST-05LX Scanning Laser 5 meters Rangefinder lidar
