PRODUCT DETAILS
UST-05LX
HOKUYO ust-05lx is a 2D laser scanning ranging product newly launched by HOKUYO. It has a measurement range of 5m, 270°, DC12V/24V input, 25ms scanning time, IP65 protection level and non-contact measurement.It can be used for obstacle avoidance and position identification of high-speed moving robot.Large screen projection interaction;The design of high precision, high resolution and wide field of view provides the autonomous navigation robot with good environmental recognition ability.Compact design saves installation space, low weight and low power consumption.
Model | UST-05LX |
Voltage | DC12/24V （Normal range 10-30V） |
Light source | 905nm，Safety Class 1 (human eye safety) |
Measured distance | 0.06m-5m（90%reflectivity |
Precision | 60 to 5000mm: ±40mm; 1000 to 2000mm: ±3%measured distance |
Repeat accuracy | <30mm |
Scanning Angle | 270° |
Scanning cycle | 25ms |
Scanning frequency | 40Hz |
Angular resolution | 0.25° |
Startup time | Less 10s |
Communication interface | Ethernet 100BASE-TX |
Indicator light | Blue indicator light always on: normal operation blue indicator light flashing: start or failure state |
Working temperature | -10℃-50℃ |
Environmental humidity | Less than 85%RH (no condensation, no frost) |
Resist ambient light interference | Less 15000lx |
Storage temperature | -30℃-70℃ |
Vibration test | Double amplitude 1.5mm 10 to 55Hz, 2 hours per axis |
Impact | 196m/s2, 10 次, X, Y, Z direction |
Protection grade | IP65 |
Weight | 130g |
Size | 50X50X70mm |

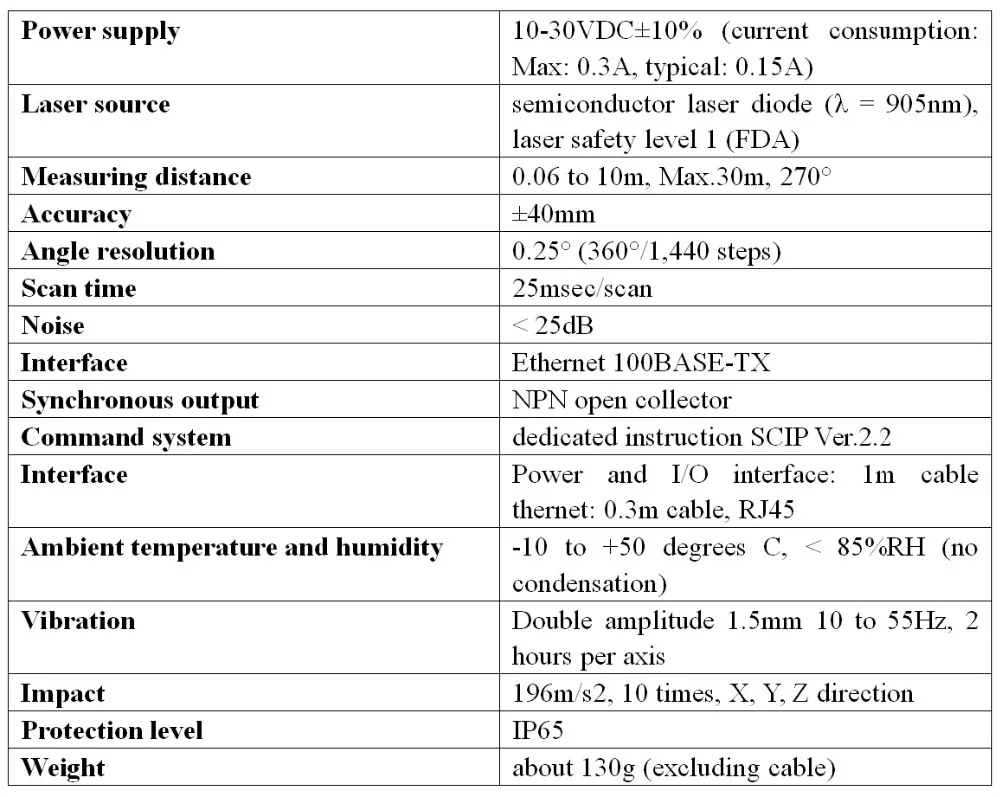

UST-10LX
UST-10LX 2D Lidar products have a 10m, 270° measurement range, DC12V/24V input, 25ms scan time, IP65 protection, non-contact measurement. It can be used for high-speed motion robot obstacle avoidance and position recognition; high-precision, high-resolution, wide-field design provides a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight and low power consumption.
l Conventional measuring distance 10m
l Maximum measuring distance 30m
l Angle resolution 0.25°
l Scan cycle 25ms
l Ethernet communication interface

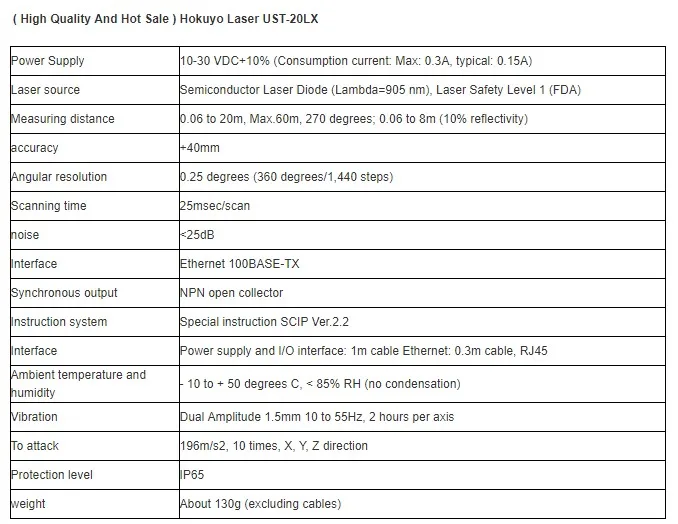

UST-20LX
HOKUYO's UST-20LX 2D laser scanning rangefinder product has 20m, 270° measurement range, maximum measurement distance is 60m, DC12V/24V input, 25ms scan time, IP65 protection grade, non-contact measurement. It can be used for obstacle avoidance and position recognition of high-speed motion robots; high-precision, high-resolution, wide-field-of-view designs provide a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight, and low power consumption.
Description
Small, accurate, high-speed scanning laser range finder
Obstacle detection and localization of autonomous robots
Light source: Laser semiconductor (905nm)
Scan speed: 25ms (Motor speed 2400rpm)
Detection distance: 60m (maximum)
Features
Scanning Range : 20m on white sheet and 8m black sheet. (possible up to 60m scanning Range depending on object surface)
270º scan angle, 25ms/scan
12 / 24VDC
Repeated accuracy: σ< 30mm
Application
Navigation and obstacle detection (Guide path planning for mobile robots and autonomous systems)
Object positioning (control docking processes of AGVs, AGCs)
Object Profiling (cargo containers, pallets for loading & unloading)
Object measurement and detection (volume of packages, pallets, flow measurement of bulk materials)
Area monitoring (building security and entrance ways)
Large screen interactive display

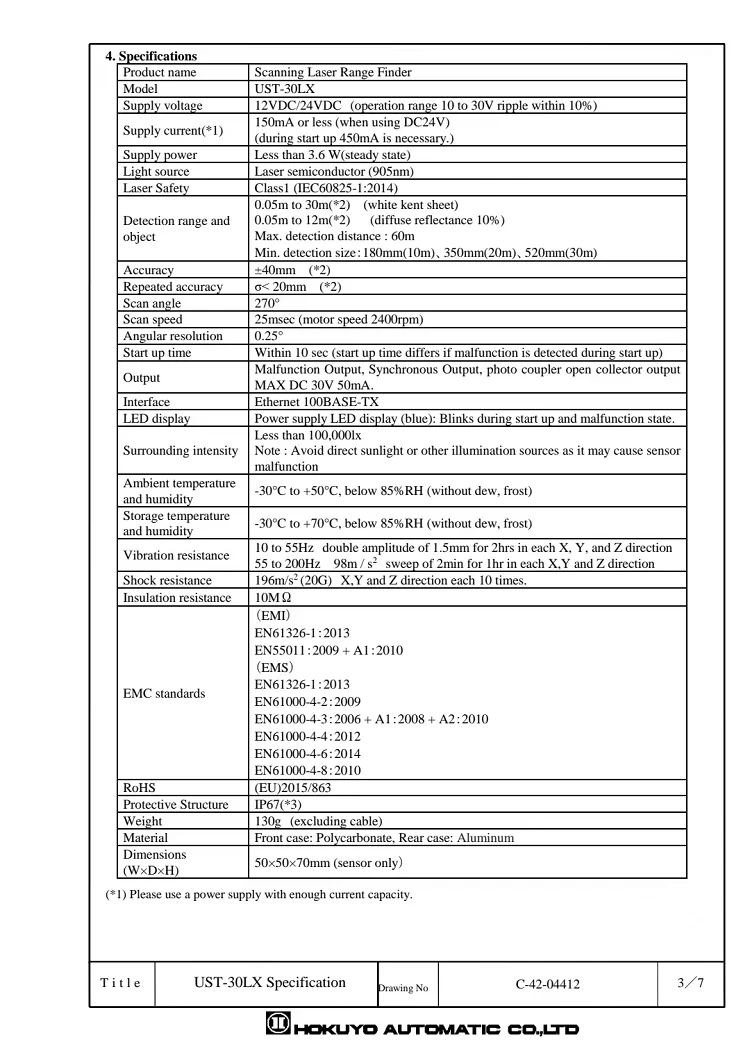

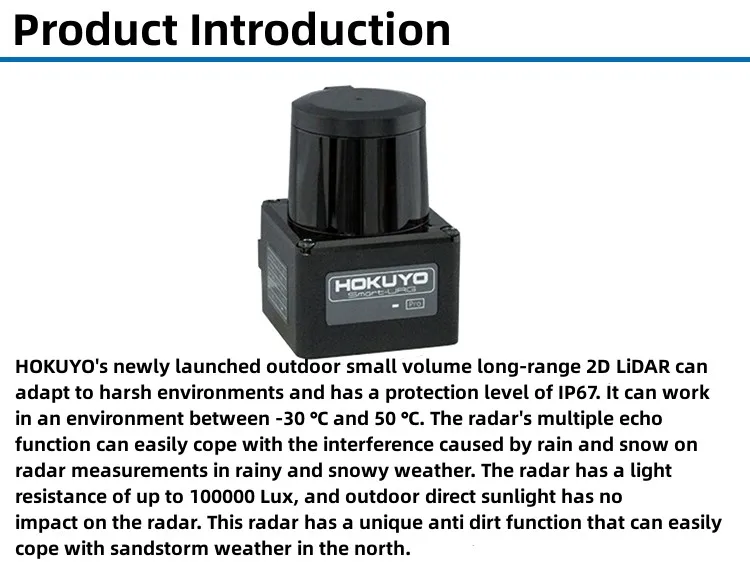

UST-30LX

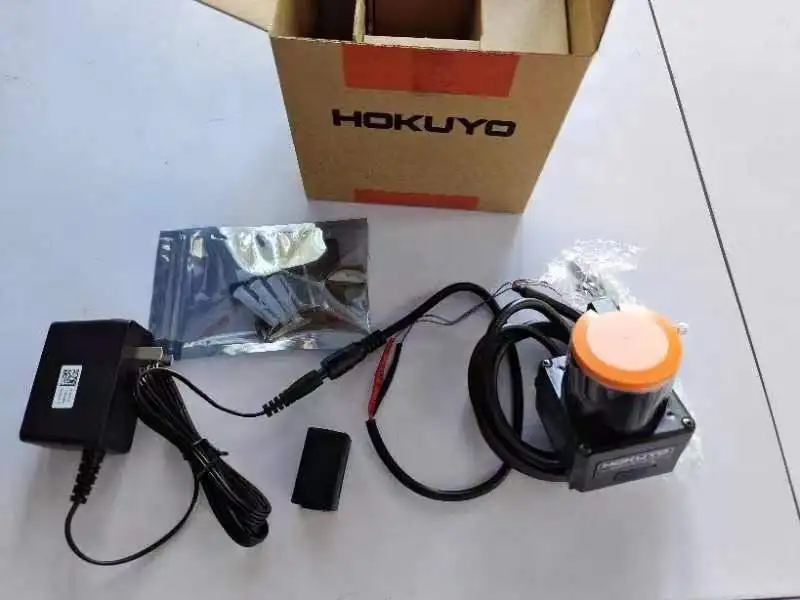

Shipping List:
