60 meter 120 ° intrusion detection area security radar Power plant oil depot substation security alarm detection radar

Model Description

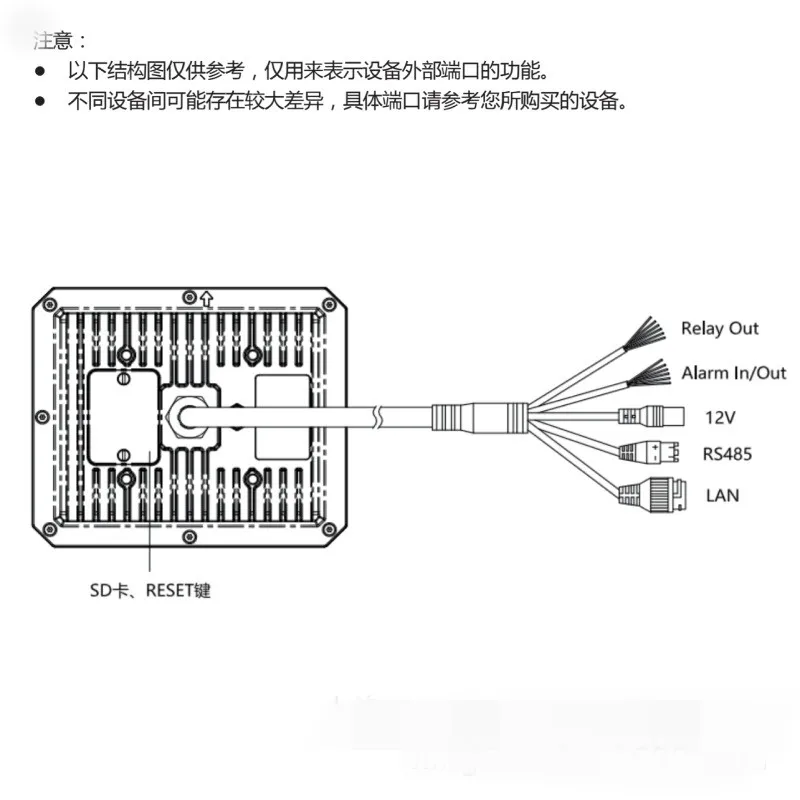

Model 1. Detection distance 60 meters/detection range 120 °/network interface RJ45 digital quantity/+2-way alarm switch values

Model 2. Detection distance 60 meters/detection range 120 °/signal RS485 digital quantity/+2-way alarm switch values

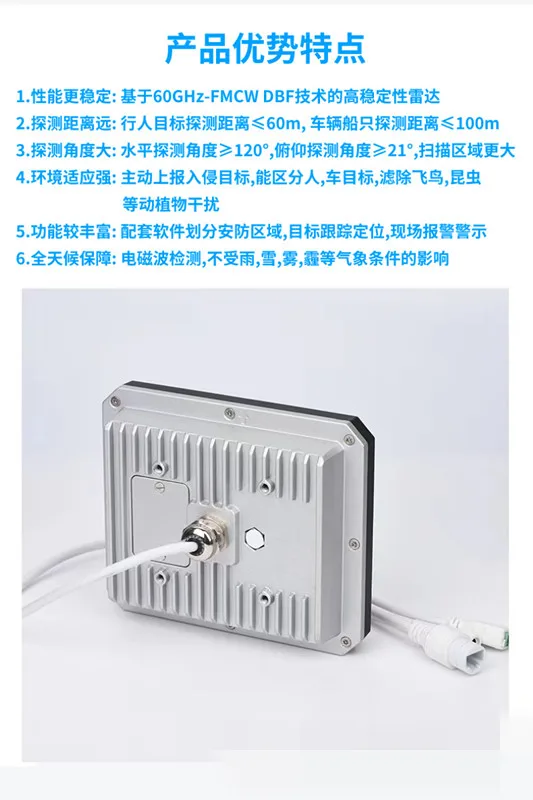

The regional security radar XW-SF-SR-3M is widely loved by customers due to its excellent performance and high cost-effectiveness:

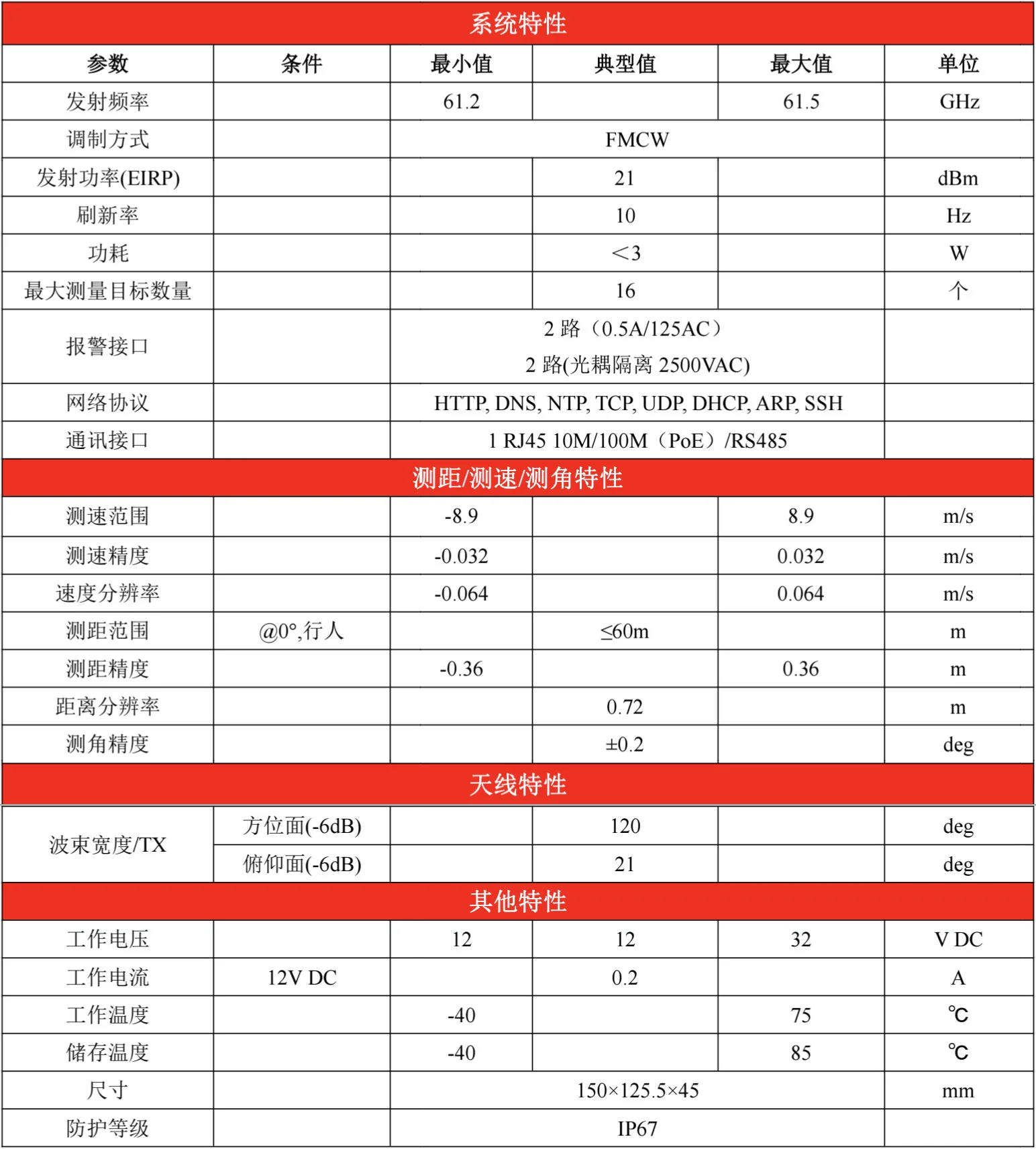

1. More stable performance: High stability radar based on 60GHz FMCW DBF technology

2. Long detection distance: pedestrian target detection distance ≤ 60m, vehicle and vessel detection distance ≤ 100m

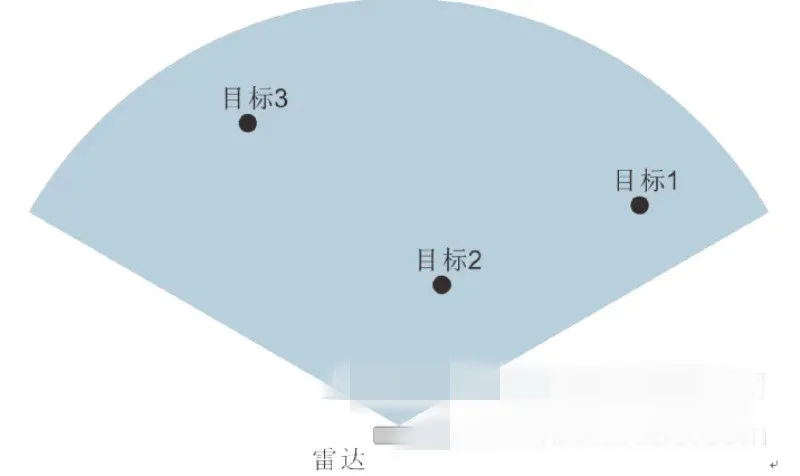

3. Large detection angle: horizontal detection angle ≥ 120 °, elevation detection angle ≥ 21 °, and larger scanning area

4. Strong environmental adaptability: actively reporting intrusion targets, able to distinguish between human and vehicle targets, and filtering out interference from birds, insects, and other animals and plants

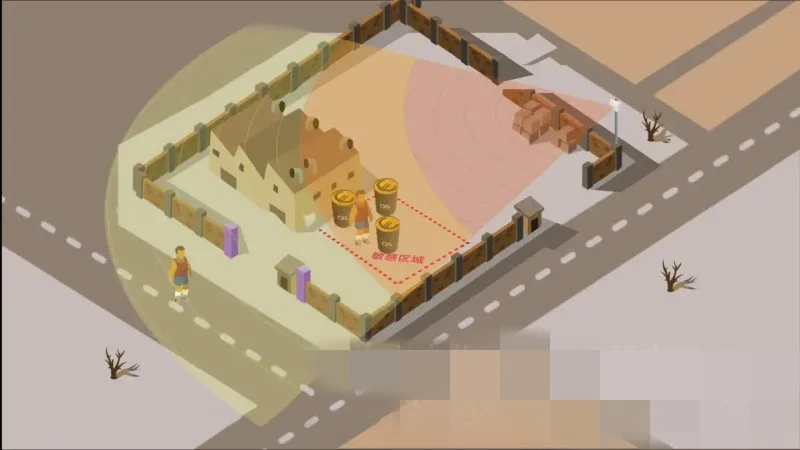

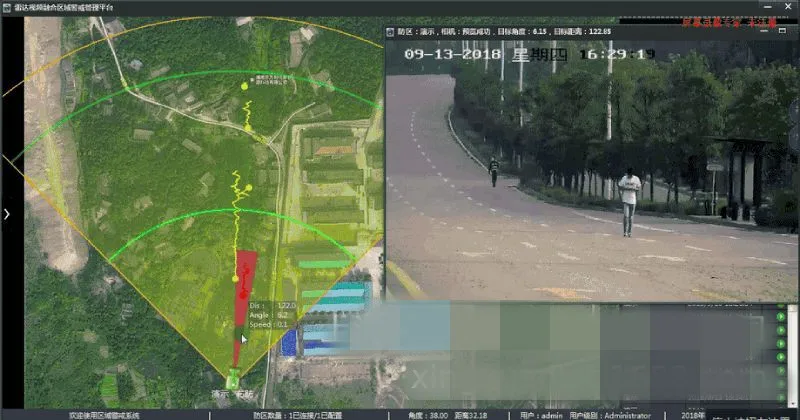

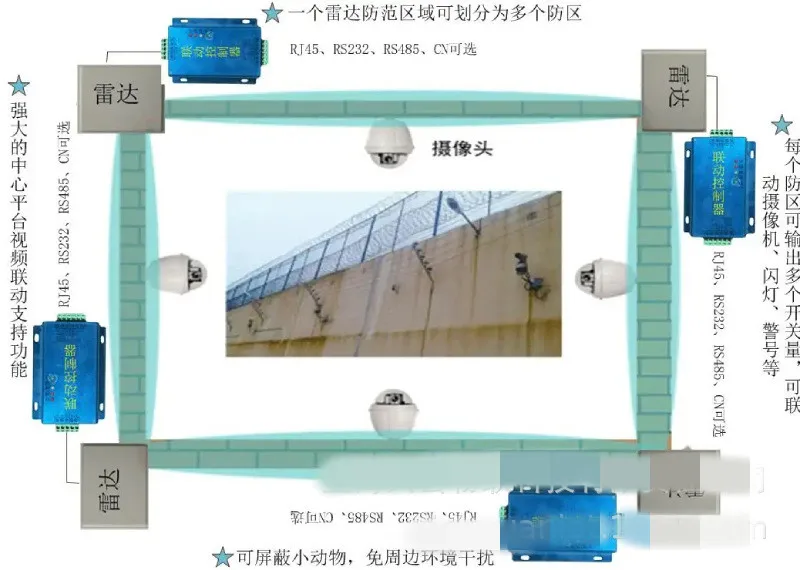

5. Rich functions: supporting software for dividing security areas, target tracking and positioning, on-off output, and on-site alarm and warning

6. All weather support: Electromagnetic wave detection, unaffected by meteorological conditions such as rain, snow, fog, haze, etc

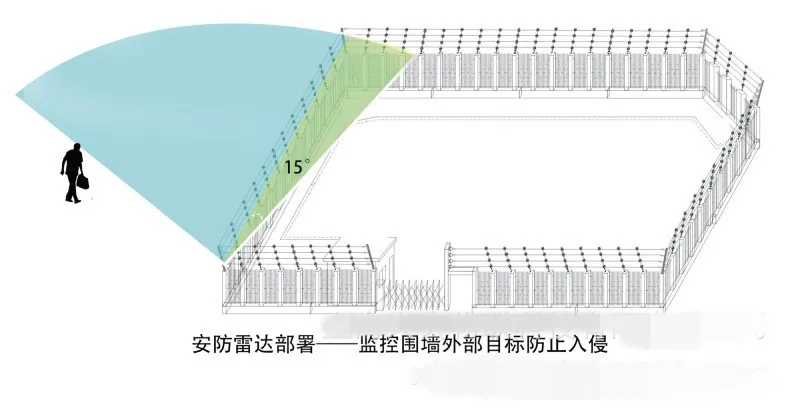

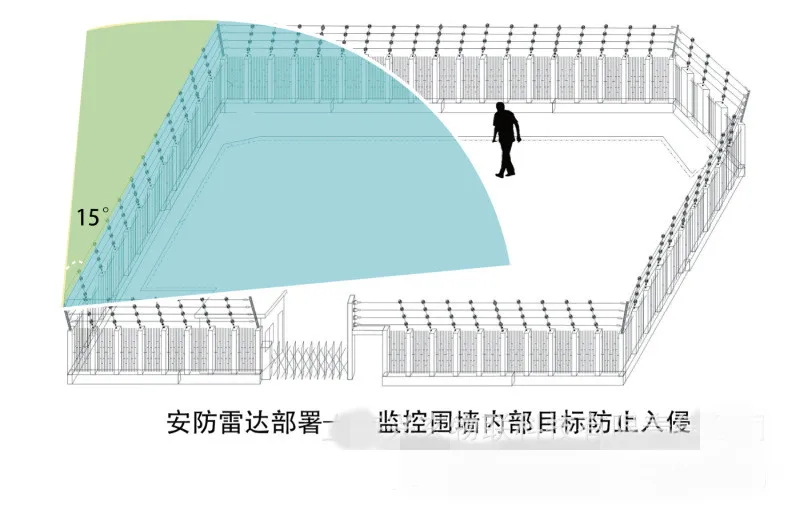

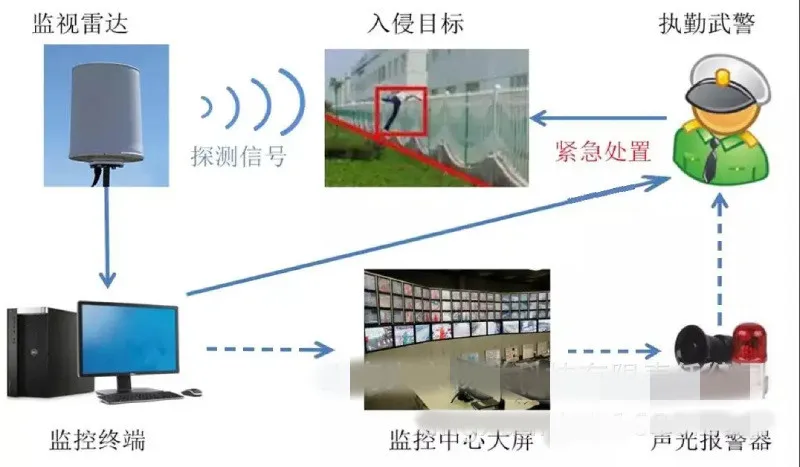

7. Cooperate with the camera: a larger field of view angle to compensate for the problem of large blind spots and undetectable issues in the camera, while triggering camera tracking and capturing

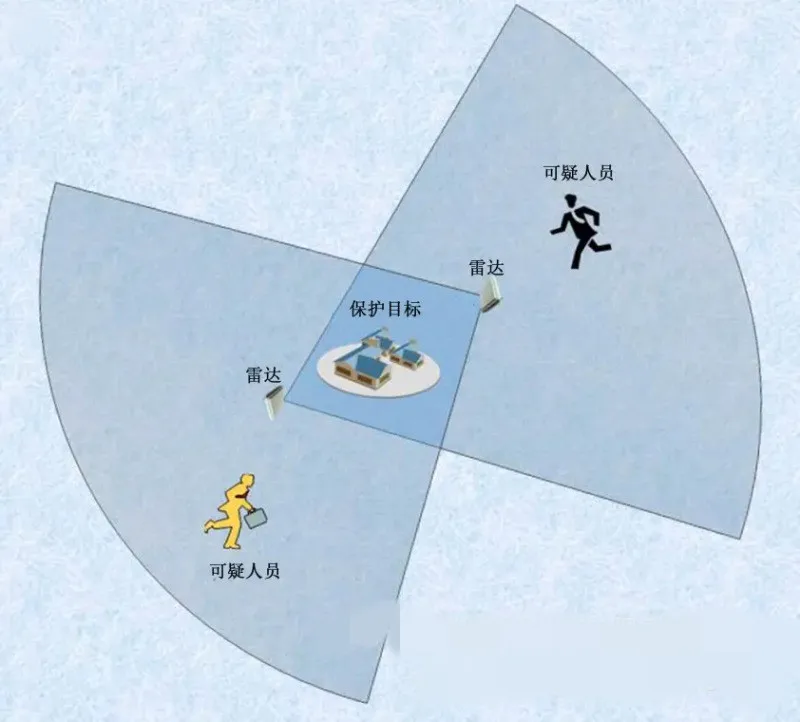

8. Widely used: Widely used in power plants, substations, high-voltage tower areas, oil depots, docks, military areas and other scenarios that require intrusion detection and security warning
