The characteristics of the 24G band regional security millimeter wave radar XW-SF-S1-4M product are as follows:

1. The intelligent security high-precision radar adopts modern microwave technology and high-speed digital signal processing technology, as well as 24GHz MMIC technology, with superior performance;

2. It can accurately locate moving targets within the coverage range, output their relative position, direction of movement, speed, and other information, and provide warning functions

3. The radar integrates advanced signal processing technology with ranging function, which can locate and track multiple targets and provide triggering signals for early warning

Effectively improving prevention capabilities and handling capabilities in response to emergencies

4. Accurate positioning and speed measurement, with characteristics such as high accuracy, debugging free, and high stability

5. It can accurately locate the relative position of multiple targets, report their position, direction of movement, and speed

6. Outdoor or indoor open areas can replace UWB positioning systems, reducing the trouble of establishing base stations and wiring for UWB

7. Digital phased array radar using DBF technology, with a wide detection range

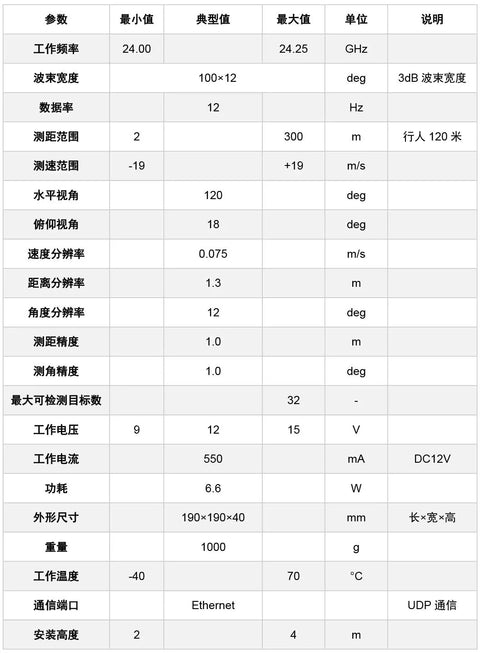

8. Pedestrian detection distance ≥ 120 meters, ship large targets ≥ 300 meters, detection angle ≥ 120 °

9. Rich communication interfaces, radar data communication supports communication interfaces such as RS485 or RJ45, Ethernet, etc

10. Provide dedicated supporting radar visualization software for monitoring and warning of large areas, with convenient debugging, installation, and maintenance

11. Strong environmental adaptability, and detection performance is not affected by external environmental interference such as light, dust, rain, and snow.

12. The product can be widely used for the protection of key core areas. When suspicious personnel enter the protection area, the product can timely monitor and trigger an alarm. Wide product coverage,

And it can accurately locate, further cooperate with the camera to confirm the identity of the target, and improve the security alert level. Applied to various important facilities and locations, providing 24-hour and all-weather security protection for border security, airport security areas, power plant substation areas, oil field important location warning, harbor and dock area security, safe berthing of port ships, mine security, rivers, lakes, rivers, and surrounding environments

300 meter range 120 ° large angle area security millimeter wave radar Port power plant intrusion detection radar
