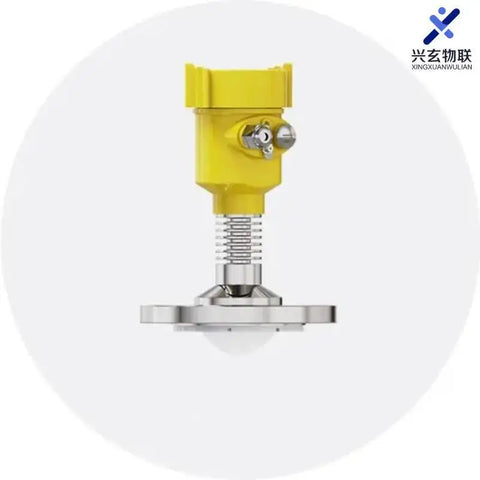

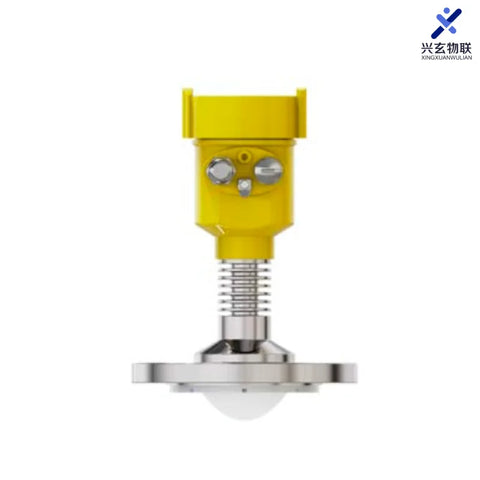

150m pressure resistance, high temperature resistance, corrosion resistance, explosion-proof level gauge, high-frequency 80G guided wave intelligent radar level level level gauge

Replacing the imported Vega radar, the level gauge radar (XRD1-1L-150TFA) has low beam energy and can be installed in various metal, non-metal containers or pipelines to continuously measure the level of liquids, slurries, and particles in a non-contact manner. Suitable for occasions with large changes in dust, temperature, corrosion, pressure, and the presence of inert gases and vapors. The level meter radar is harmless to both the human body and the environment, and has the advantages of not being affected by the specific gravity of the medium, not being affected by changes in dielectric constant, and not requiring on-site calibration.

① Adopting 80GHz MMC technology, with higher resolution and more stable detection performance;

② Pressure resistance, heat resistance, anti-corrosion, and explosion-proof;

③ Suitable for non-contact measurement of liquids, solids, slurries, particulate materials, dust materials, etc;

④ Small beam angle, concentrated energy, stronger anti-interference ability, greatly improving measurement accuracy and reliability;

⑤ The measurement range can reach up to 150m, covering large reservoirs, material depots, and other measurements;

⑥ The emission power of the level meter radar is extremely low, and there is no harm to the human body and environment;

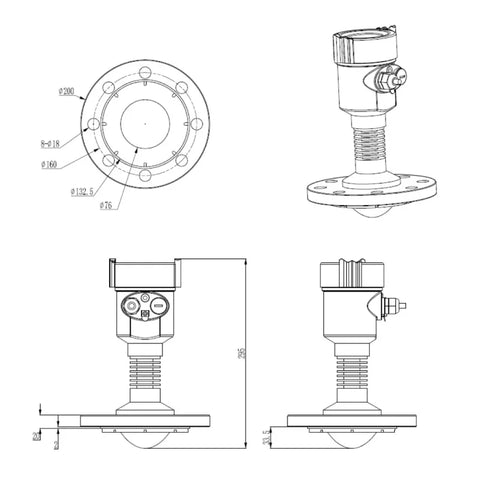

⑦ Standard flange connection;

⑧ 4-20mA/HART/2-wire standard interface output

150m pressure, high temperature, corrosion, and explosion-proof level gauge 80G intelligent radar 4~20mA/HART
