Model Description

Model 1. 30 ± 5mm/Repetitive accuracy 5um, RS485 digital quantity/+PNP/NPN switching value

Model 2. 30 ± 5mm/Repetitive accuracy 5um, 4-20mA analog quantity/+PNP/NPN switching value

Model 3. 50 ± 15mm/Repetitive accuracy 20um, RS485 digital quantity/+PNP/NPN switching value

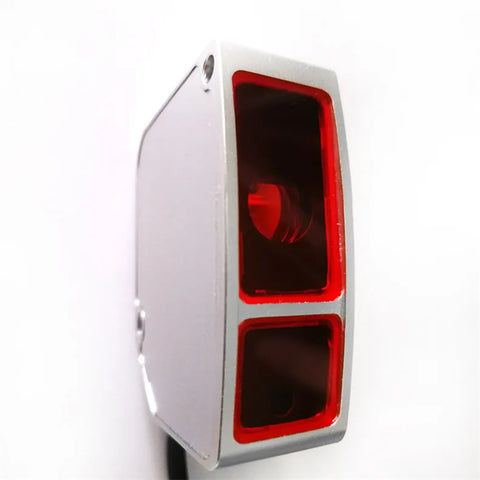

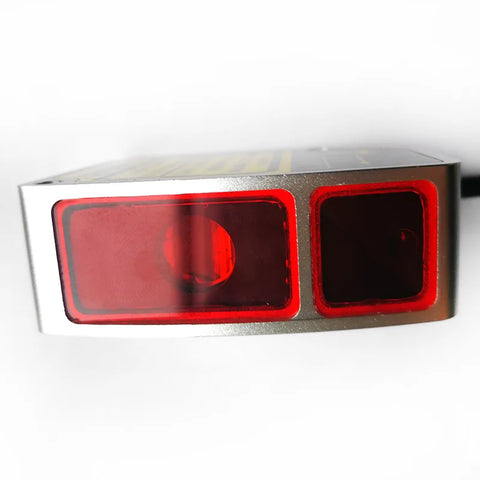

The performance characteristics of the high-precision laser displacement sensor XW-DT11 series products are as follows:

1. The XW-DT11 series of laser displacement sensors are based on the laser triangulation method and are suitable for high-precision displacement measurement,

Widely used in precision instruments/circuit boards/product micro deformation/sheet thickness/material thickness measurement and other scenarios

2. Support intelligent display and external display screen, directly display displacement value data values, and can also measure product sheet thickness

3. Measurement distance can be selected, supporting different measurement distances such as 25-35mm (center 30mm, range 10mm), 35-65mm (center 50mm, range 30mm), 60-110mm (center 85mm, range 50mm), etc

4. Compact size, easy installation, fast response, high sensing accuracy, dynamic target sensing, measuring frequency up to 500Hz, capable of measuring fast moving targets

5. Easy to operate, directly connected to a 10~30V DC voltage, which can achieve measurement of sheet thickness/target displacement

6. Ultra high precision, with repetitive accuracy up to 5um/20um/60um, and more different specifications of precision available for selection

7. With output signals, digital RS485, analog 4-20mA, switching NPN, PNP, etc., convenient for connecting to different control devices

8. Metal protective shell, supporting IP67 level protection, dustproof and waterproof, protecting equipment, can be used in complex industrial sites

9. Small light spot, bright light spot, used for precise aiming and positioning of object targets

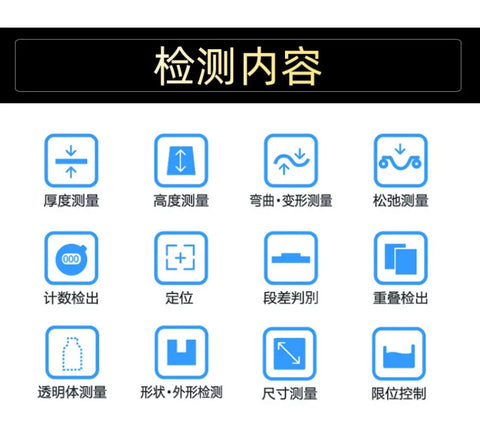

10. Widely used: mobile phone detection, mechanical processing, automotive manufacturing, precision instruments, dispensing machines, sheet thickness measurement, object deformation monitoring, assembly line acrylic plate thickness measurement, railway rail detection, scientific research and teaching, and other fields

High precision 0.005mm laser displacement sensor analog 485 output Switch analog value Thickness height sensor
