500 meter range intrusion detection microwave fence millimeter wave radar replaces electronic fence perimeter security radar

XW-SF-S1-7SK microwave fence is a perimeter radar product independently developed by Xingxuan IoT Technology and has complete independent intellectual property rights. The product is based on 24GHz microwave technology and can emit electromagnetic waves, completing target detection and positioning by detecting the reflected electromagnetic waves of objects. The product can monitor moving targets within the field of view (such as people and cars), report their distance, azimuth, and speed information, and support simultaneous reporting of multiple targets.

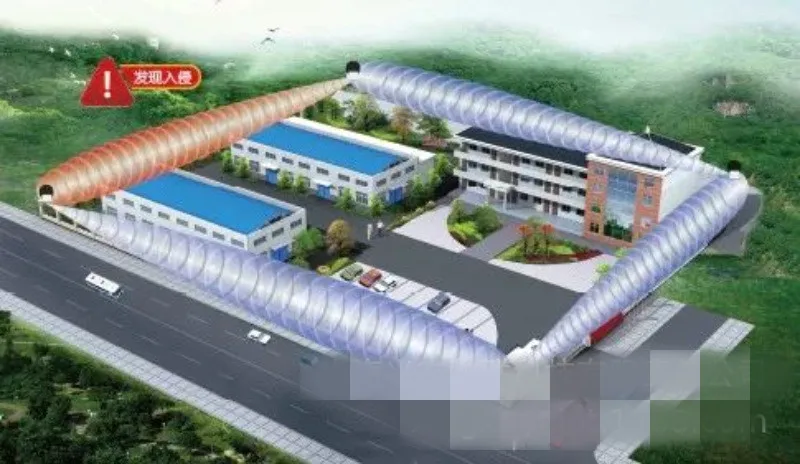

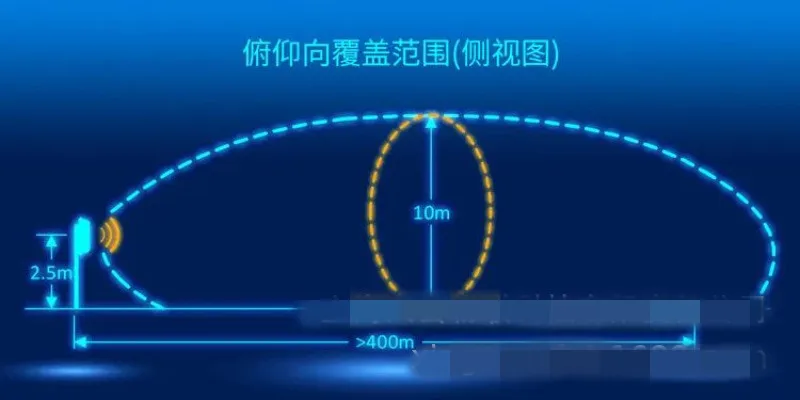

The XW-SF-S1-7SK microwave fence product has a narrow beam, and within a limited range, the emitted microwave forms a "radar wall" with a certain height and width. When an object passes through this wall, it can be reported in a timely manner, playing a role in safety prevention. At the same time, the product can adjust the working bandwidth as needed, and the wide and narrow beams can be switched to solve the problem of blind spot monitoring, ensuring full coverage and no blind spots in the monitoring space

The main features of the 24G band microwave barrier radar XW-SF-S1-7SK product are as follows:

1. The intelligent security high-precision radar adopts modern microwave technology and high-speed digital signal processing technology, as well as 24GHz MMIC technology, with superior performance;

2. It can complete intrusion detection of moving targets within the coverage range, output information such as their relative position, direction of movement, and speed, and provide early warning function

3. The radar integrates advanced signal processing technology with ranging function, which can locate and track multiple targets and provide triggering signals for early warning

Effectively improving prevention and emergency response capabilities, replacing electronic fences, and compensating for the shortcomings of blind spots in cameras

4. Support multiple working frequency bands to avoid interference with the same frequency;

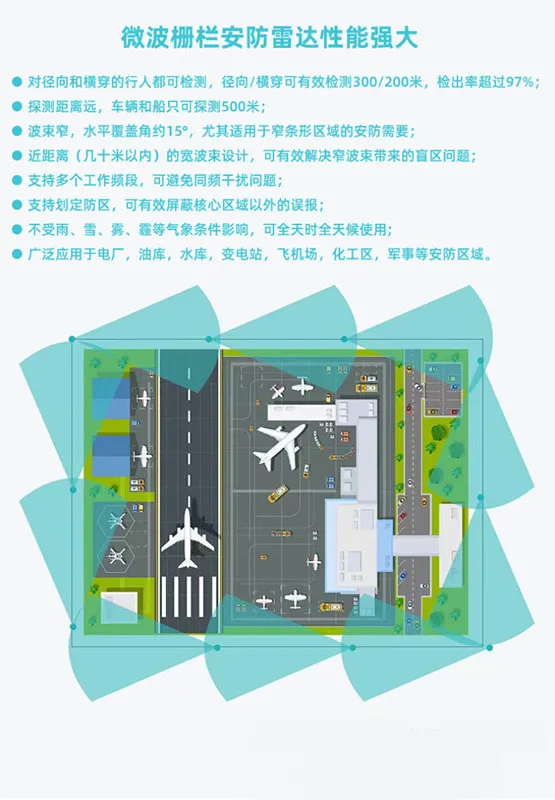

5. Wide beam design at close range (within tens of meters) can effectively solve the blind spot problem caused by narrow beams;

6. It can detect pedestrians in both radial and transverse directions, effectively detecting 300/200 meters in radial and transverse directions, with a detection rate of over 97%;

7. The detection distance is far, and vehicles and ships can detect 500 meters;

8. The beam is narrow, with a horizontal coverage angle of about 15 °, especially suitable for security needs in narrow strip areas;

9. Rich communication interfaces, radar data communication supports communication interfaces such as RS485 or RJ45, Ethernet, etc

10. Provide dedicated supporting radar visualization software to support the delineation of defense zones and effectively shield false alarms outside the core area;

11. Strong environmental adaptability, with detection performance not affected by external environmental interference such as light, dust, rain and snow;

12. The product can be widely used for the protection of key core areas. When suspicious personnel enter the protection area, the product can timely monitor and trigger an alarm. We can further cooperate with the camera to confirm the target's identity and enhance the security alert level. It is used in various important facilities and places to provide all-weather and all-weather security guarantee for the surrounding environment of border alert, airport security area, power plant and substation area security, early warning of important places in oil fields, security of seaports and docks, safe berthing of port ships, mine security, rivers, lakes, rivers and seas, etc.
