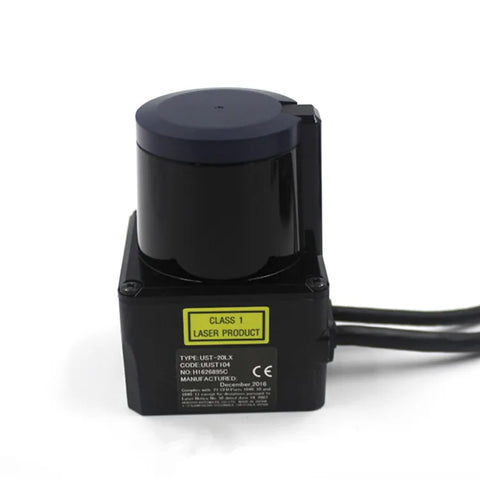

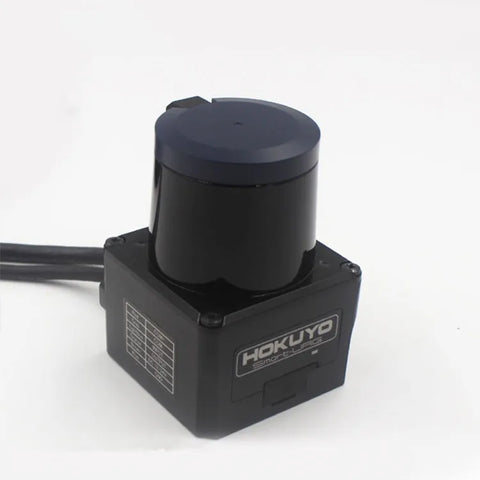

HOKUYO's UST-20LX 2D laser scanning rangefinder product has 20m, 270° measurement range, maximum measurement distance is 60m, DC12V/24V input, 25ms scan time, IP65 protection grade, non-contact measurement. It can be used for obstacle avoidance and position recognition of high-speed motion robots; high-precision, high-resolution, wide-field-of-view designs provide a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight, and low power consumption.

Description

Small, accurate, high-speed scanning laser range finder
Obstacle detection and localization of autonomous robots
Light source: Laser semiconductor (905nm)
Scan speed: 25ms (Motor speed 2400rpm)
Detection distance: 60m (maximum)

Features

Scanning Range : 20m on white sheet and 8m black sheet. (possible up to 60m scanning Range depending on object surface)
270º scan angle, 25ms/scan
12 / 24VDC
Repeated accuracy: σ< 30mm

Application

Navigation and obstacle detection (Guide path planning for mobile robots and autonomous systems)
Object positioning (control docking processes of AGVs, AGCs)
Object Profiling (cargo containers, pallets for loading & unloading)
Object measurement and detection (volume of packages, pallets, flow measurement of bulk materials)
Area monitoring (building security and entrance ways)
Large screen interactive display

Laser Scanning image

Description

- Small, lightweight and accurate sensor
- Ranges up to 20m and able to scan a 270° arc
- Perfect for indoor applications

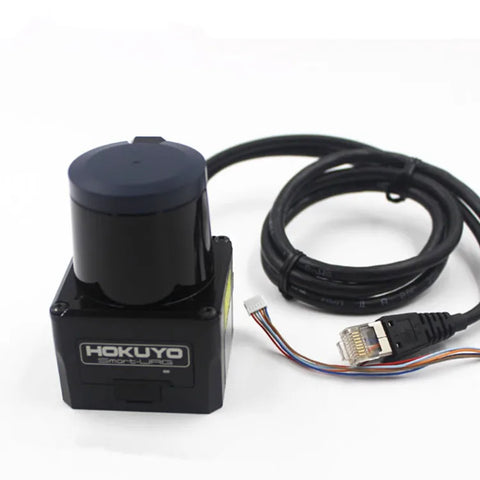

- Outputs data on an Ethernet 100Base-TX interface

Features

- 20-meter range with ±40mm accuracy
- 270º scan angle, 25ms/scan
- 12 / 24VDC
- Ethernet 100Base-TX interface
- Measurement Data type - SCIP Protoco
