M1C1-Mini / Mini-T4 / COIN-D4A Samll 8m Laser radar range scanner Navigation obstacle avoidance lidar sweeper special lidar

Warm Tips:

Dear buyer, after placing an order, if you need all the information and software of LIDAR, please contact the seller.

M1C1_Mini lidar

M1C1_Mini is a single line two-dimensional scanning laser radar based on the principle of triangulation ranging.With optical, electrical, algorithm and structural design, the high frequency and high precision distance measurement and Angle matching can be achieved within the range of 0.1~6m, and the external environment 360° two-dimensional point cloud information can be generated, which can be used for map construction and mapping, intelligent equipment obstacle avoidance, autonomous positioning and navigation of robots, etc.

Product Feature

1.360° omni-directional scanning ranging

2. The measuring range is over 6 meters, and the actual maximum distance is up to 8 meters

3. The scanning frequency can reach 10Hz and the angular resolution can reach 0.9°

4. High ranging accuracy and good stability

5. Strong resistance to ambient light interference

6. Small size, low power consumption, stable performance and long life

7. Meet the Class I laser safety standards

Product appearance and size

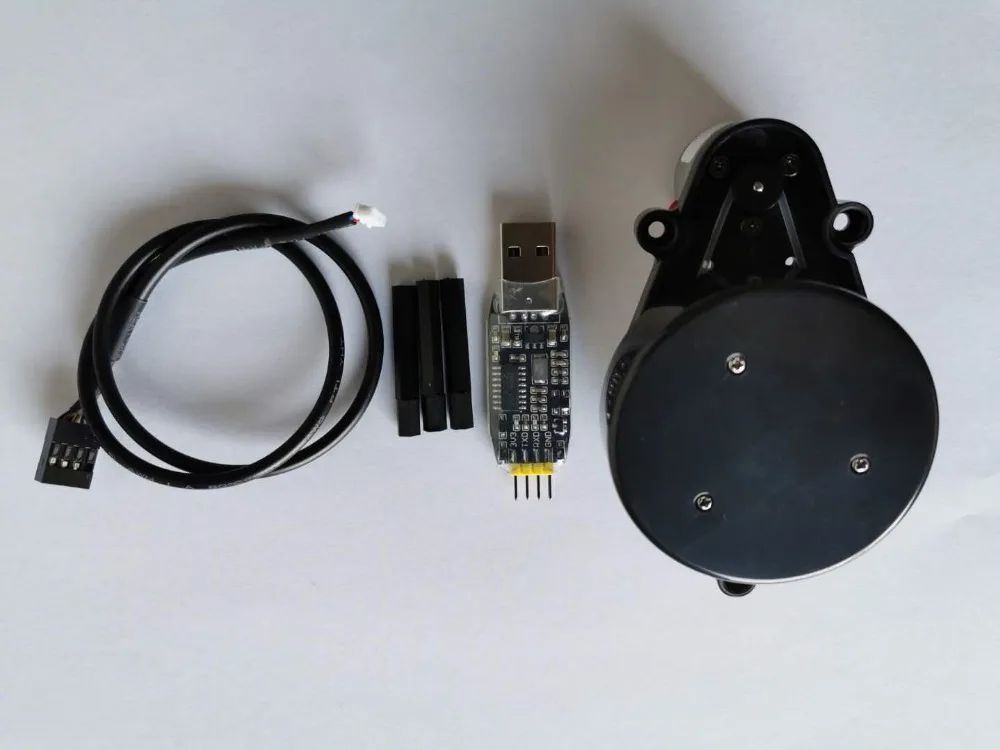

Packing List

Mini T4 lidar

Mini T4 is a new generation of 360 ° scanning ranging laser radar developed by Guoke Optical Core. The product is based on the direct time of flight (dToF) ranging principle. The internal rotating parts use Wireless power transfer and photoelectric communication technology, together with optical, electrical and algorithm design, to achieve high-frequency high-precision distance measurement, with a maximum measuring radius of 10m. This product is suitable for practical application scenarios such as map surveying, intelligent device navigation and obstacle avoidance, and environmental modeling.

Product characteristics

1.Maximum measurement range: 0.05m-10m (90% diffuse reflectance); 0.05m-8m (10% diffuse reflectance).

2.Adopting the direct time of flight (dToF) ranging principle.

3.The scanning range is 360 °, and the angle resolution is 0.9 °.

4.The accuracy within a distance of 0.05m-2m is ± 10mm.

5.High reflective material with separate flag bit output.

6.There is no difference in accuracy among the three materials of high reflection, white card, and black card.

7. Resistant to sunlight of 60000 lux  @6m

Performance parameter

COIN-D4A lidar

COIN-D4A is a new generation of coaxial 360 ° scanning ranging laser radar developed by Guoke Optical Core. The product is based on the direct time of flight (dToF) ranging principle. The internal rotating parts use Wireless power transfer and photoelectric communication technology, together with optical, electrical and algorithm design, to achieve high-frequency high-precision distance measurement, with a maximum measuring radius of 12m. This product is suitable for practical application scenarios such as map surveying, intelligent device navigation and obstacle avoidance, and environmental modeling.

Product characteristics

1.The maximum measurement range is 0.05m-12m.

2.Adopting the direct time of flight (dToF) ranging principle.

3.The scanning range is 360 °, and the angle resolution is 0.9 °.

4.Coaxial design, small size, and can be installed internally.

5.Brushless motor is used, with a long service life of over 10000 hours.

Performance parameter
