Product introduction

M1C1_Mini is a single line two-dimensional scanning laser radar based on the principle of triangulation ranging.With optical, electrical, algorithm and structural design, the high frequency and high precision distance measurement and Angle matching can be achieved within the range of 0.1~6m, and the external environment 360° two-dimensional point cloud information can be generated, which can be used for map construction and mapping, intelligent equipment obstacle avoidance, autonomous positioning and navigation of robots, etc.

Product Feature

1.360° omni-directional scanning ranging

2. The measuring range is over 6 meters, and the actual maximum distance is up to 8 meters

3. The scanning frequency can reach 10Hz and the angular resolution can reach 0.9°

4. High ranging accuracy and good stability

5. Strong resistance to ambient light interference

6. Small size, low power consumption, stable performance and long life

7. Meet the Class I laser safety standards

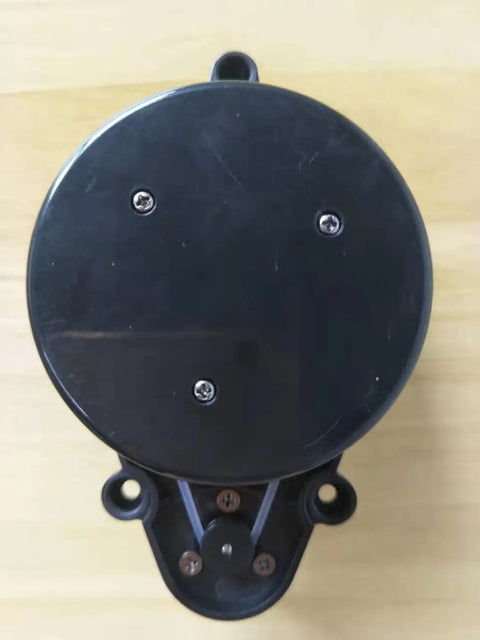

Product appearance and size

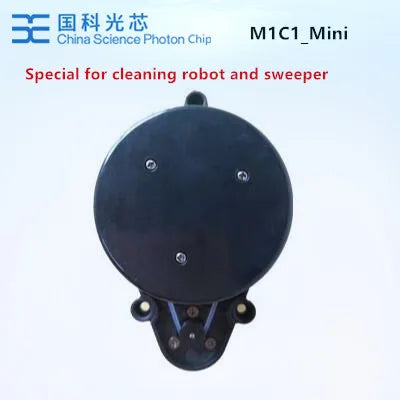

M1C1 Mini Laser radar range scanner Navigation obstacle avoidance lidar cleaning robot For robot development platform
