Warm Tips:

Dear buyer, after placing an order, if you need all the information and software of LIDAR, please contact the seller.

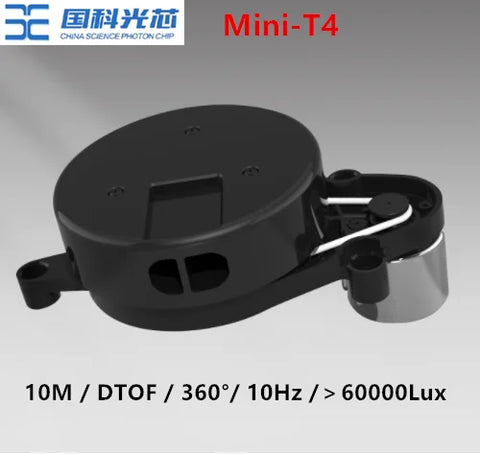

Mini T4 is a new generation of 360 ° scanning ranging laser radar developed by Guoke Optical Core. The product is based on the direct time of flight (dToF) ranging principle. The internal rotating parts use Wireless power transfer and photoelectric communication technology, together with optical, electrical and algorithm design, to achieve high-frequency high-precision distance measurement, with a maximum measuring radius of 10m. This product is suitable for practical application scenarios such as map surveying, intelligent device navigation and obstacle avoidance, and environmental modeling.

Product characteristics

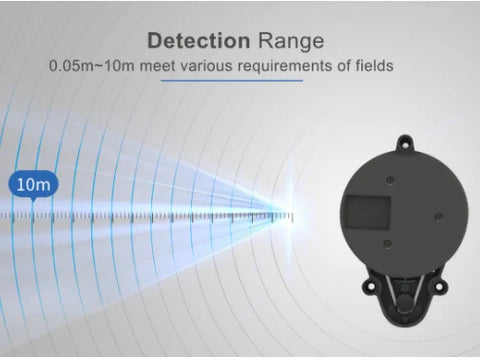

1.Maximum measurement range: 0.05m-10m (90% diffuse reflectance); 0.05m-8m (10% diffuse reflectance).

2.Adopting the direct time of flight (dToF) ranging principle.

3.The scanning range is 360 °, and the angle resolution is 0.9 °.

4.The accuracy within a distance of 0.05m-2m is ± 10mm.

5.High reflective material with separate flag bit output.

6.There is no difference in accuracy among the three materials of high reflection, white card, and black card.

7. Resistant to sunlight of 60000 lux @6m

Performance parameter

Mini-T4 10m DTOF 360 ° scanning ranging LiDAR sensor for map surveying mapping robot navigation obstacle avoidance
