PRODUCT DETAILS

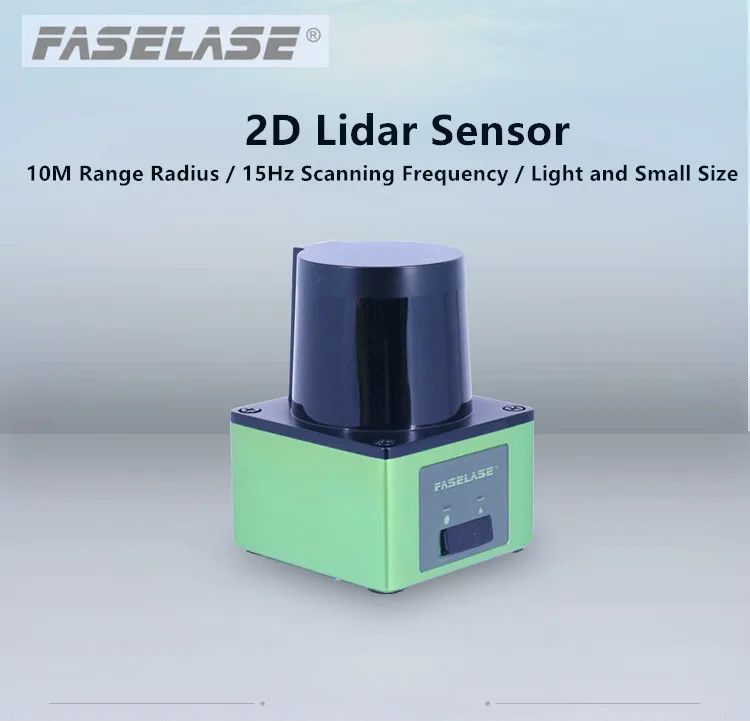

The F series lidar is a new compact, affordable 2-d lidar with FsaeLase laser radar .The main features of the products are fast measurement, small size, light weight, small power consumption, low cost.It is mainly used in industrial/commercial robot obstacle avoidance and navigation, screen interaction, safety gate, human flow detection and other fields.
Technical parameters
Model： F10
Measuring distance：0.15～10m@10%
Angle resolution：0.27°
Scanning speed：15Hz
Output Interface：Ethernet/2*IO OUT(customizable)
Power supply：DC9V-36V

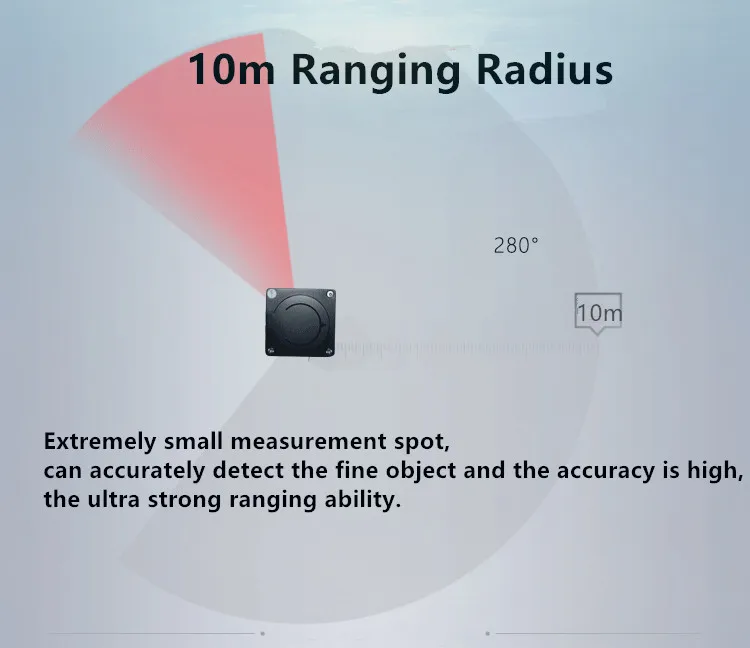

Scanning area：280°
Repeatability：±3cm
Distance resolution：1cm
light source：Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements
Dimensions：62x62x82 mm
Operating temperature：－10℃～＋50℃
storage temperature：－20℃～＋70℃
Protection level：IP65
Weight：210g
型号（Model） | F3 | F6 | F10 | F20 |
测量距离 Measuring distance | 0.05～3m@3% | 0.05～6m@5% | 0.15～10m@10% | 0.15～20m@10% |
角度分辨率 Angle resolution | 0.27° | 0.27° | 0.27° | 0.3° |
扫描速度 Scanning speed | 15Hz | 15Hz | 15Hz | 25Hz |
输出接口 Output Interface | 4NPN OUT,4NPN IN/USB | 4*NPN OUT,4*NPN IN | Ethernet/2*IO OUT(Can be customized) | Ethernet/2*IO OUT(Can be customized) |
供电 Power supply | DC9V-36V | |||
扫描区域 Scanning area | 280° | |||
重复精度 Repeatability | ±3cm | |||
距离分辨率 Distance resolution | 1cm | |||
光源 light source | 激光二极管905nm，≤1mW；符合GB7247.1-2001；I类激光人眼安全要求 Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements | |||
机械尺寸 Dimensions | 62x62x82 mm | |||
操作温度范围 Operating temperature | －10℃～＋50℃ | |||
存储温度范围 storage temperature | －20℃～＋70℃ | |||
防护等级 Protection level | IP65 | |||
重量 Weight | 210g | |||
