Introduction

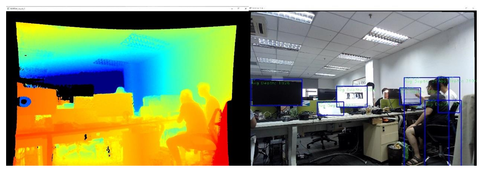

CS40Pro equipped with a PToF image sensor and RGB image sensor with
a resolution of 640*480, it uses PToF technology to obtain three
dimensional information of objects and space, and has excellent
performance such as high frame rate and Gigabit Ethernet transmission,
providing users with convenient and efficient 3D perception capabilities.
This product adopts a high-performance (quad-core 64 -bit Cortex-A55)
hardware processing platform. and is equipped with a 1TOPS NPU. Users
can integrate a variety of application algorithms to reduce dependence
on the back-end application platform. It supports CAN, TCP/IP, and
RS485 protocols to achieve long-distance data transmission.

Features
• Gigabit Ethernet transmission, high frame rate, low latency

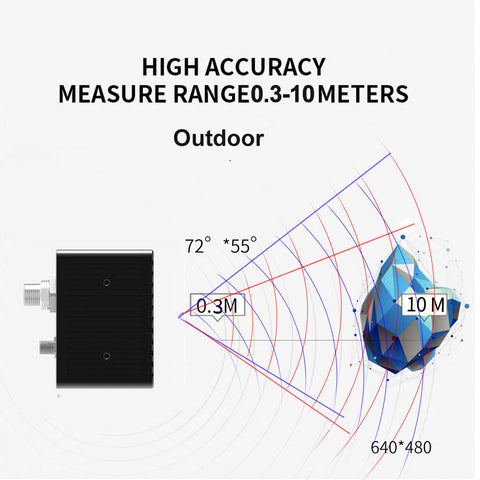

• High dynamic measurement range (0.5~10m@Ref 90%)
• Outdoor & Indoor

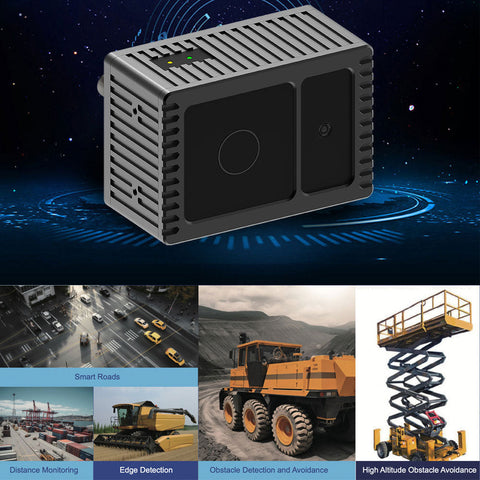

Applicable scenarios
• Outdoor obstacle avoidance
• Security protection
• Industrial visual positioning and guidance
• Route guidance, edge detection

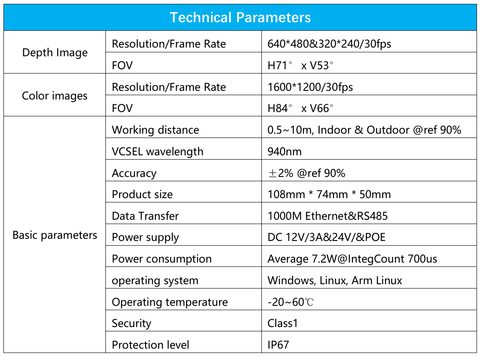

Technical Parameters

Precautions

Do not use other heat sources to heat this product;
Do not drop, hit, or disassemble this product to prevent damage to internal components and reduced accuracy;

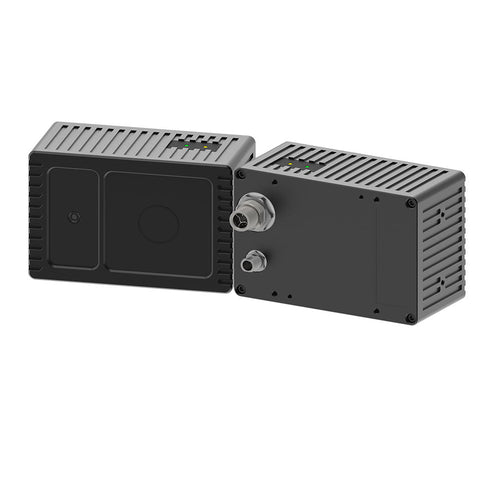

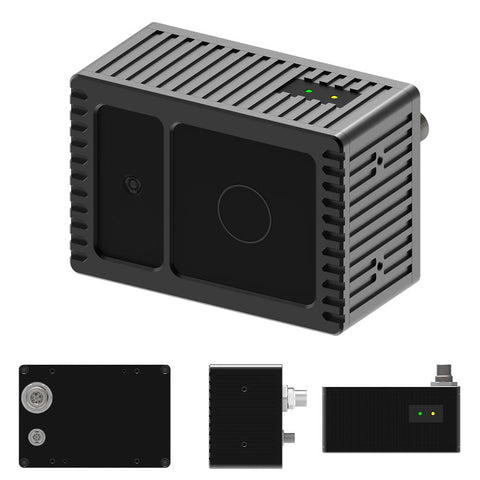

Synexens Industrial Outdoor 10m TOF Sensor Depth 3D camera Rangefinder-CS40Pro
