High-Performance Laser Scanning for Long-Range Navigation and Obstacle Avoidance.

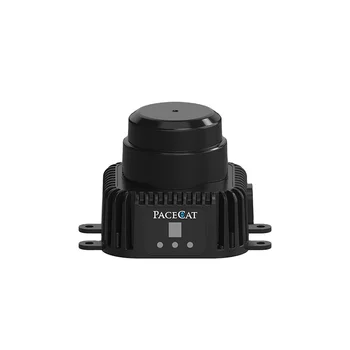

The LSS-40S LiDAR sensor is a robust, industrial-grade 2D laser scanner engineered for high-stakes automation environments. With a reliable 40-meter detection range and a wide 270° field of view, it provides the precision and durability required for AGV navigation, smart port logistics, and outdoor security monitoring. Built with advanced TOF (Time of Flight) technology, the LSS-40S ensures stable performance even under challenging ambient light conditions.

Reliable Performance, Versatile Usage, User-Friendly

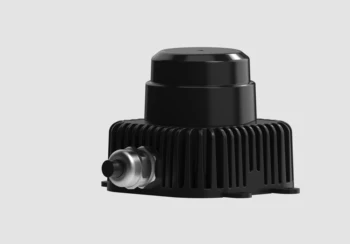

Robust metal casing with IP67 protection ensures durability.
360-degree panoramic scanning for comprehensive environmental awareness.
Ultra-long detection range up to 40 meters for long-distance sensing needs.
Outputs both point cloud and area information for flexible detection configurations.
Multiple interface options for high compatibility and easy integration.

Specs

Model	LSS-10A-C30E44	LSS-40S-B20E44	LSS-40D-C30E	LSS-40D-C20E
Laser Wave Length	905nm±15nm	905nm±15nm	905nm±15nm	905nm±15nm
Distance	0.1–20m@90% 0.1~8m@10%	0.1–40m@90% 0.1~10m@10%	0.1–40m@90% 0.1~10m@10%	0.1–40m@90% 0.1~10m@10%
Measure Frequency	18kHz	18kHz	18kHz	30kHz
Scan Frequency	10HZ，15HZ	10HZ，15HZ	10HZ，15HZ	10HZ，15HZ
Echo Mode	Single Pulse	Single Pulse	Single Pulse	Single Pulse
Echo intensity	0-254	0-254	0-254	0-254
Drive	Built-in dc brushless motor	Built-in dc brushless motor	Built-in dc brushless motor	Built-in dc brushless motor
Measure Angle	360°	360°	360°	360°
Angle Resolution	0.2°@10HZ 0.3°@15HZ	0.2°@10HZ 0.3°@15HZ	0.2°@10HZ 0.3°@15HZ	0.12°@10HZ 0.2°@15HZ
Ranging Accuracy	±30mm	±30mm	±30mm	±30mm
Range Resolution	mm	mm	mm	mm
Communication Interface	USB/Ethernet 100Mbit/s	USB/Ethernet 100Mbit/s	USB/Ethernet 100Mbit/s	USB/Ethernet 100Mbit/s
Optical Interference Resistance	>80000LX	>80000LX	>80000LX	>80000LX
Weight	330g	330g	330g	330g
Supply Voltage	10VDC~26VDC	10VDC~26VDC	10VDC~26VDC	10VDC~26VDC
Working Temperture	-10℃～ +50℃	-10℃～ +50℃	-10℃～ +50℃	-10℃～ +50℃
Power Dissipation	≤ 4W	≤ 4W	≤ 3W	≤ 3W
Protective Class	IP65/IP67	IP65/IP67	IP65/IP67	IP65/IP67
Size（mm）	88（68）x68x59mm	88（68）x68x59mm	88（68）x68x59mm	88（68）x68x59mm

Application Scenarios

Versatile Applications for Modern Automation

Autonomous Mobile Robots (AMR/AGV): High-speed obstacle avoidance and SLAM navigation in logistics hubs.
Industrial Safety: Perimeter monitoring and area protection for hazardous machinery.
Smart Transportation: Vehicle height detection and flow monitoring in toll stations or parking lots.
Port Automation: Reliable outdoor object detection in heavy-duty maritime environments.
