BENEWAKE TF02-i 40m IP65 Industrial LiDAR Sensor–Long Range ToF Module

In Stock
SKU: BENEWAKE TF02-i

Regular price $139.00 $139.00 | Save $0.00 (0% off)
/

100

PRODUCT DETAILS

BENEWAKE TF02-i is a powerful 40m industrial-grade ToF LiDAR sensor, designed for mid-range distance detection with high precision and reliability. Built as an upgraded version of TF02, it integrates a refined optical system and enhanced fusion algorithms to deliver stable and accurate performance across complex environments—including outdoor strong light, varied reflectivity surfaces, and changing temperatures.

With its IP65 waterproof enclosure, robust structure, and compatibility with RS-485 and CAN interfaces, TF02-i is built for demanding industrial applications, such as drone height detection, intelligent traffic systems, smart parking, and precision agriculture.

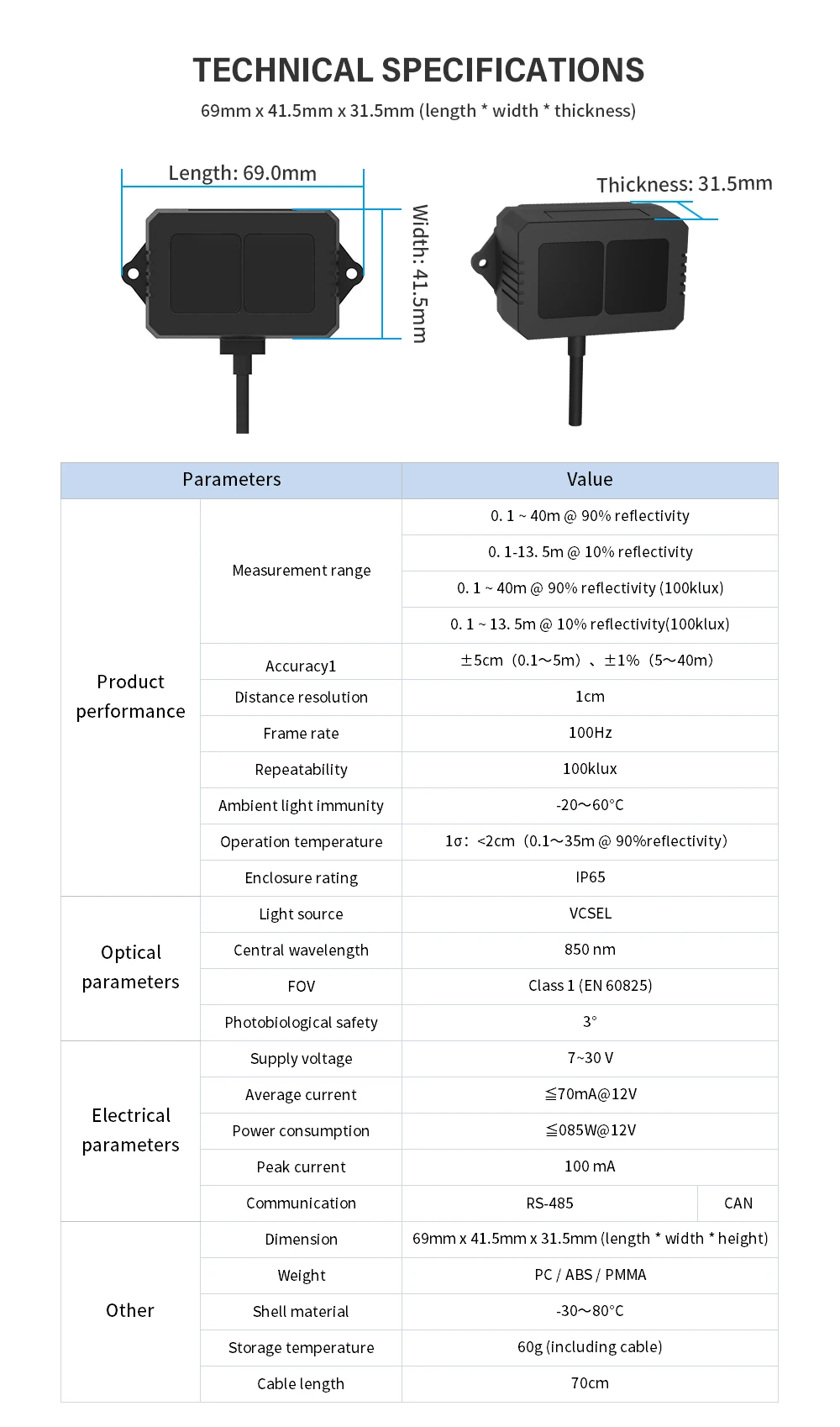

📌 Key Specifications:

  • Measuring Range: 0.1 – 40 m

  • Blind Zone: Min 10 cm

  • Accuracy: ±6 cm

  • Refresh Rate: Up to 100 Hz

  • Ambient Light Resistance: 100 KLux

  • Power Supply: Wide voltage range with reverse polarity protection

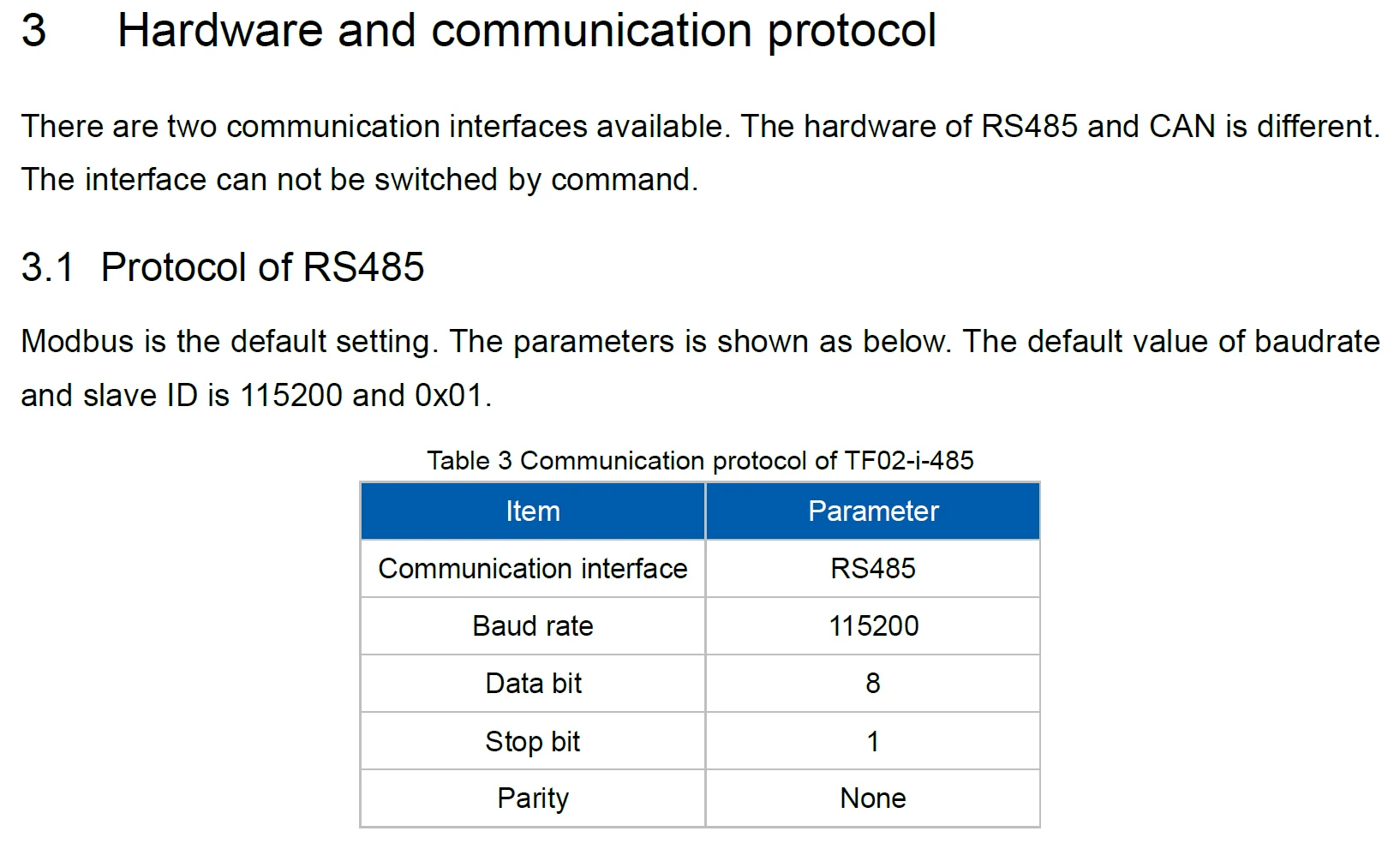

  • Interface: RS-485, CAN

  • Housing: ABS+PC, IP65 rated

  • Weight: ~52 g


Main Features:

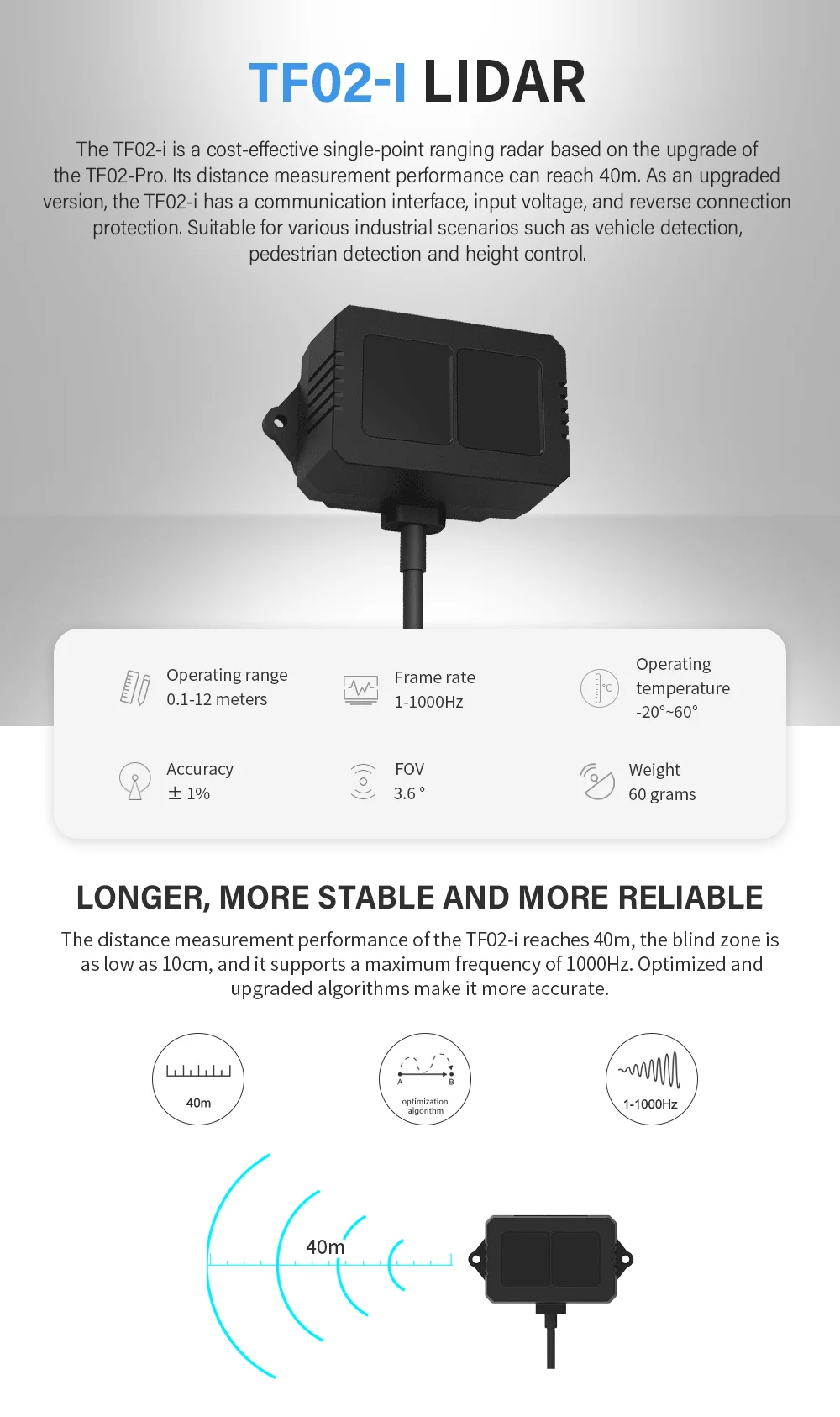

  • 40m long-range detection, optimized for outdoor use

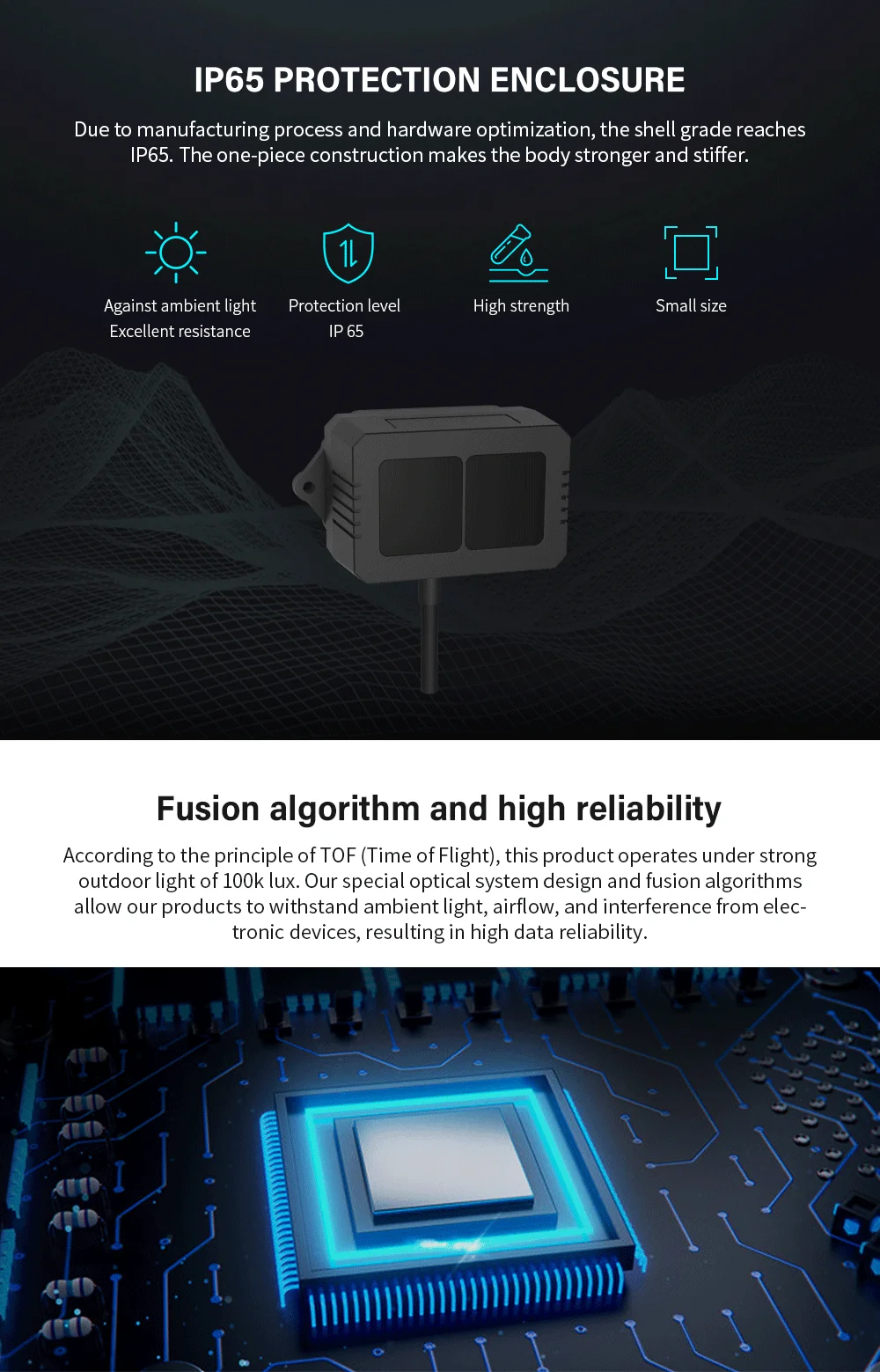

  • IP65-rated waterproof enclosure for industrial protection

  • Anti-glare performance up to 100KLux, suitable for sunlight exposure

  • Upgraded fusion algorithm ensures high accuracy and stability

  • Wide-voltage input & reverse protection, tailored for industrial power supply needs

  • Compact and lightweight design for easy integration

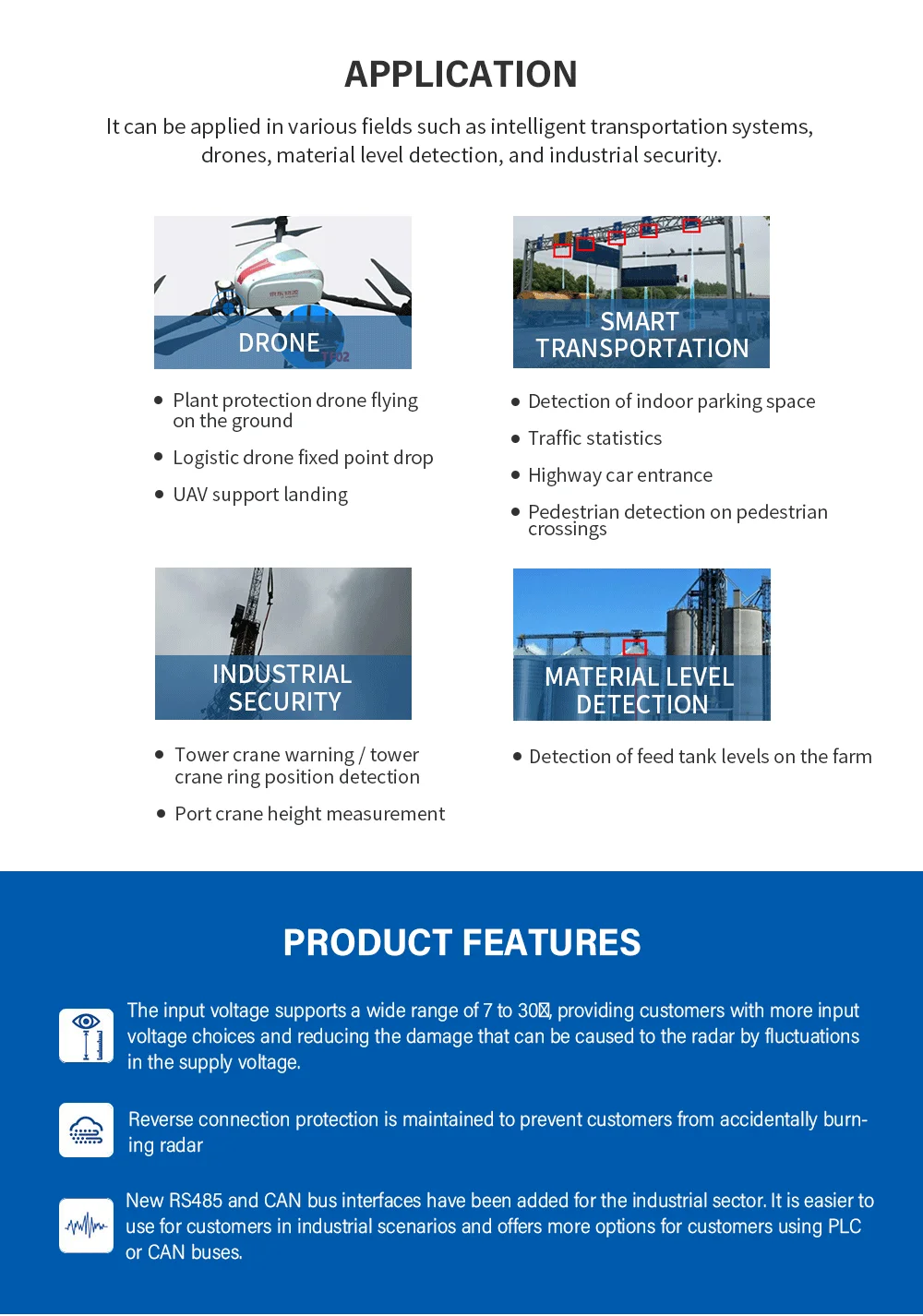

📍 Application Scenarios:

  • UAV (drone) altitude hold

  • Smart parking systems

  • Intelligent traffic monitoring

  • Agricultural automation

  • Industrial obstacle detection





Q1: Can the FOV (spot) of TF02-i be increased or decreased?



A1: Generally, this is a customized demand. You need to contact our sale colleague for further details. FOV is determined at the beginning of product design. Determination of FOV is also related to the optical system and the product structure. Therefore, it cannot be easily changed, and needs to be customized.





Q2: Can I change the frequency of data output?



A2: Yes, customization of parameter configuration is supported in TF02-i. You may consult our sales colleague or technical support for further details.

Other common questions please refer to SJ-PM-TF02-Pro A01 Product Manual on our website.
