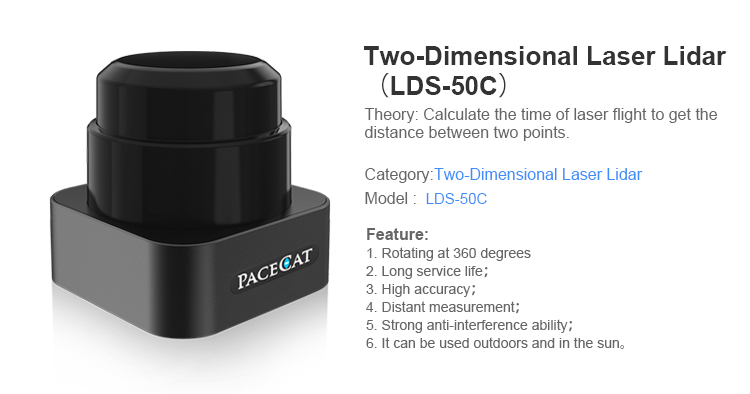

Service Robot AGV Lidar Obstacle Detectors Scanning Sensor Lidar Sensor Pacecat LDS-50C-C20E 40m Waterproof Lidar Scanner

1. High accuracy
2. Long service life
3. Distant measurement
4. Rotating at 360 degrees
5. Strong anti-interference ability
6. It can be used outdoors and in the sun

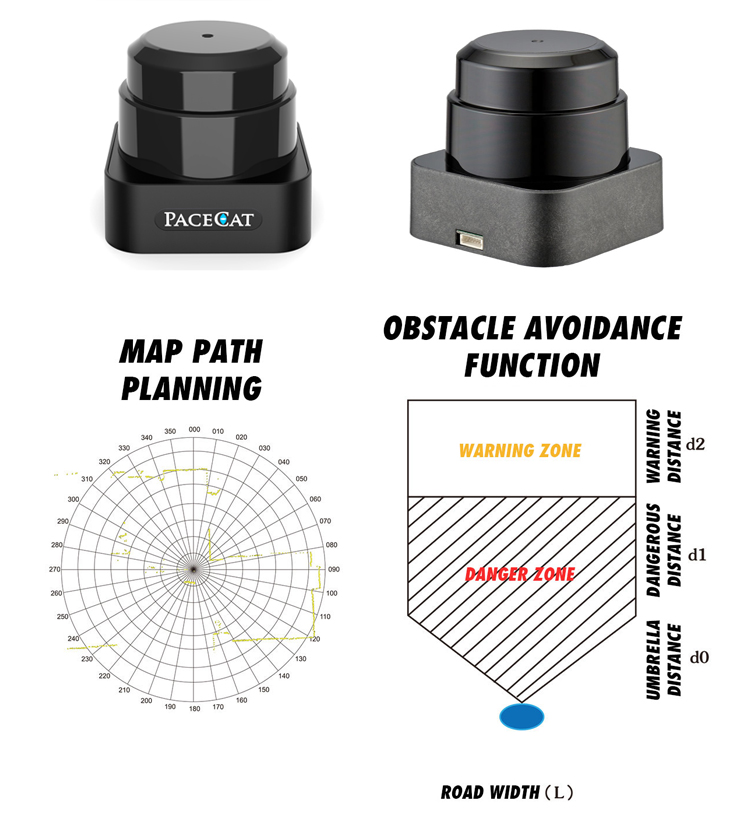

7. Ideal sensor for robot localization & mapping

Laser Sensor is as pulsed laser scanning ranging module.

It makes use of pulsed laser lauching to the target a single laser pulse, by receiving retunred from the target diffuse reflection laser pulse echo round-trip time caculation and processing, it operation target distance vis a serial port to send data and angle information to other devices.

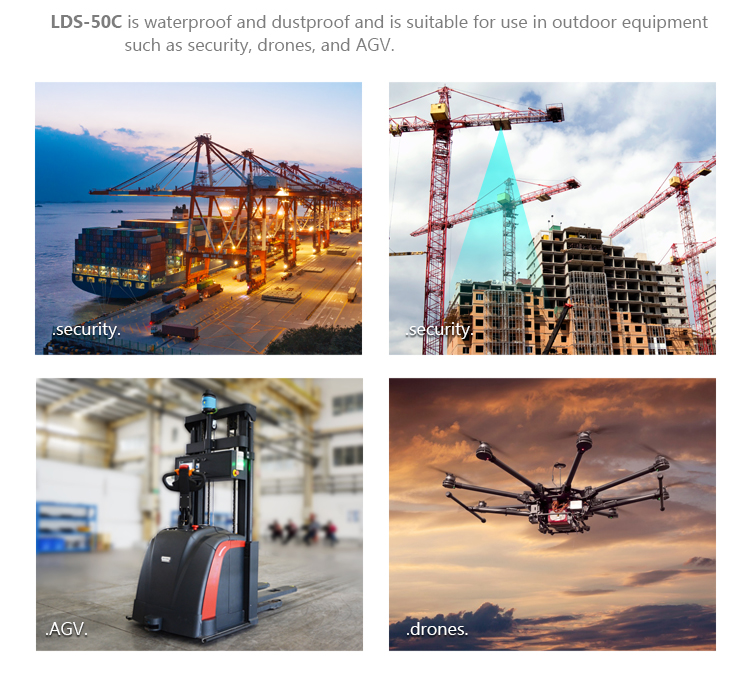

Laser scanning ranging module have been widely used in the following fileds. such as Robot sweeper , Service robot, AGV, Security and Protection, UAV and ect.

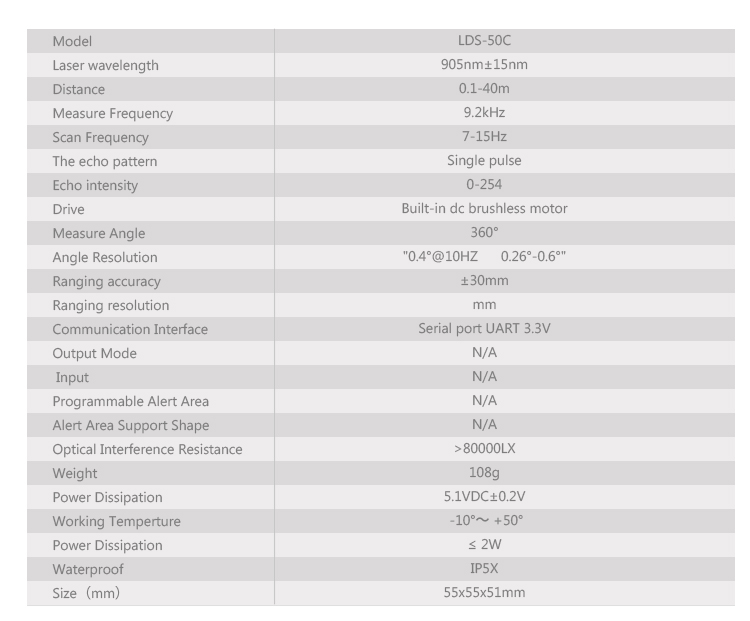

●Scanning range: 0.15m to 40m(white Kent sheet)0.1m to 10m(diffuse reflectance 10%)

Max.detection distance:50m

●Accuracy: 3-5cm

●Principle: Time of flight(pulse system)

●Laser sampling rate: 7.2 KHZ

●Angular resolution: Step angle:0.25°or -0.5°

●Scanning angle: 360°

●Scanning time: 100msec/scan(Motor speed:600rpm)200msec/scan(Motor speed:300rpm)

●Interface: UART,Other interfaces can be customized.

●Function: can set the speed through the serial port, can read the signal strength level, fault code, etc.

●Ambient temperature humidity: 0 ℃+45 ℃(-20℃to +55℃when stored),85% RH or less, not icing, not ●condensing

●Power source: DC4.8-5.5V

●Current consumption: <3W 5V@500MA

●Size: 93*66*45mm

Robot Vacuum cleaner Intelligence Sweeper

AGV

Service robot

UAV

CE, FCC, ROHS, multiple U.S. patent certification and Chinese patent certification.

Quality Guarantee - 10 Years ODM & OEM Service, also doing high-end level products for many Well     Known Brands.

professional R&D technology team to meet all clients' quality demands,CE Strict Quality Control System audited to meet for all clients' quality demands.
