Introduction to the output mode of f-series lidar:

F3 is IO output, measuring distance is 3M,

F6 is IO output and the measuring distance is 6M.

F10 is the output of network port (data type). The measuring distance is 10m.

F20 is output of network port (data type), and the measuring distance is 20m.

Note: IO output of F3 and F6 can be divided into two modes: PNP and NPN. When purchasing, please confirm whether you need NPN or PNP.

Distinction between NPN and PNP:

NPN refers to adjusting the working state by connecting high level. NPN IO state can be divided into: high level and suspension;

PNP refers to adjusting the working state by grounding. PNP IO state can be divided into low level and suspension.

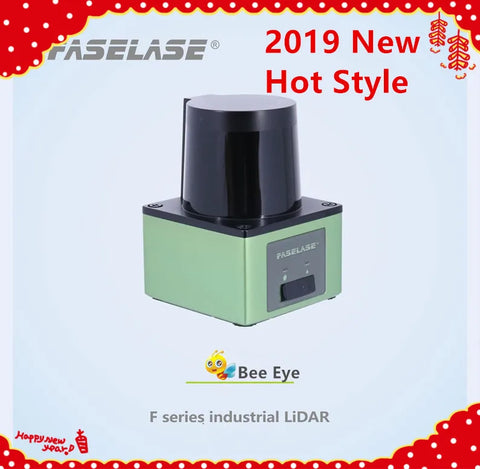

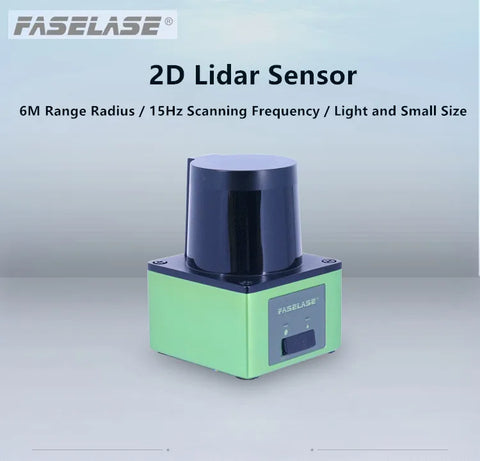

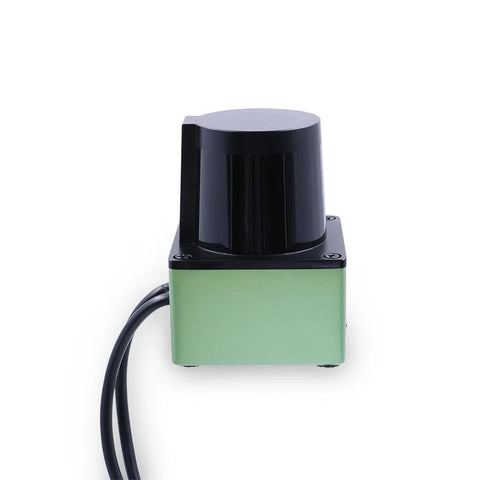

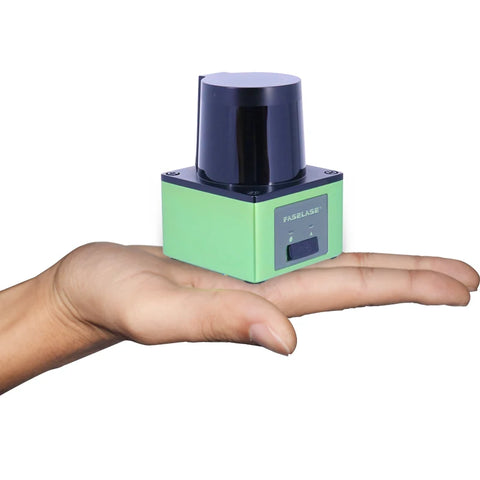

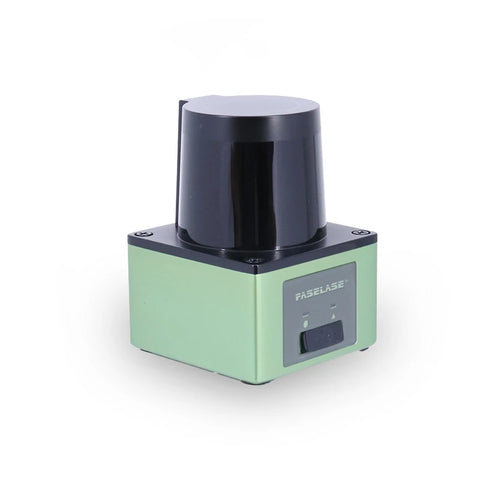

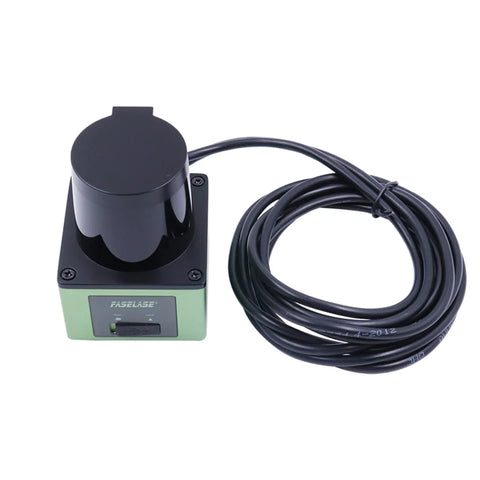

Product Introduction

The F series lidar is a new compact, affordable 2-d lidar with FsaeLase laser radar .The main features of the products are fast measurement, small size, light weight, small power consumption, low cost.It is mainly used in industrial/commercial robot obstacle avoidance and navigation, screen interaction, safety gate, human flow detection and other fields.

Technical parameters

Model：F6

Measuring distance：0.15～6m@10%

Angle resolution：0.27°

Scanning speed：15Hz

Output Interface：4NPN OUT,4NPN IN/USB

Power supply：DC9V-36V

Scanning area：280°

Repeatability：±3cm

Distance resolution：1cm

light source：Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements

Dimensions：62x62x82 mm

Operating temperature：－10℃～＋50℃

storage temperature：－20℃～＋70℃

Protection level：IP65

Weight：210g

型号（Model）	F3	F6	F10	F20
测量距离 Measuring distance	0.05～3m@3%	0.05～6m@5%	0.15～10m@10%	0.15～20m@10%
角度分辨率 Angle resolution	0.27°	0.27°	0.27°	0.3°
扫描速度 Scanning speed	15Hz	15Hz	15Hz	25Hz
输出接口 Output Interface	4NPN OUT,4NPN IN/USB	4NPN OUT,4NPN IN	Ethernet/2*IO OUT(Can be customized)	Ethernet/2*IO OUT(Can be customized)
供电 Power supply	DC9V-36V
扫描区域 Scanning area	280°
重复精度 Repeatability	±3cm
距离分辨率 Distance resolution	1cm
光源 light source	激光二极管905nm，≤1mW；符合GB7247.1-2001；I类激光人眼安全要求 Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements
机械尺寸 Dimensions	62x62x82 mm
操作温度范围 Operating temperature	－10℃～＋50℃
存储温度范围 storage temperature	－20℃～＋70℃
防护等级 Protection level	IP65
重量 Weight	210g

industrial-grade lidar AGV obstacle avoidanc robot FASELASE TOF 6m outdoor waterproof IP65 anti-collision lidar
