Product Introduction

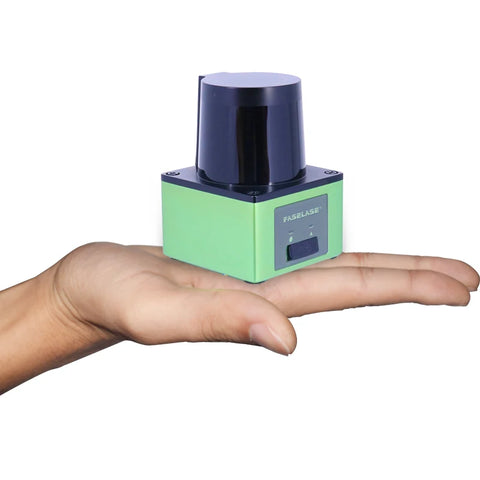

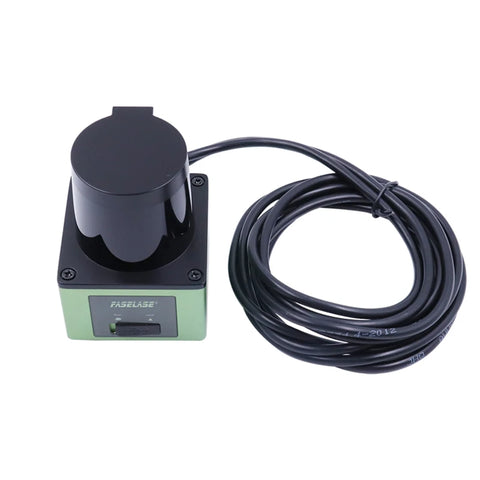

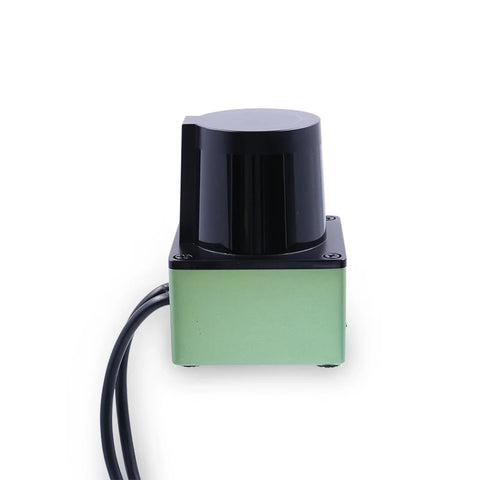

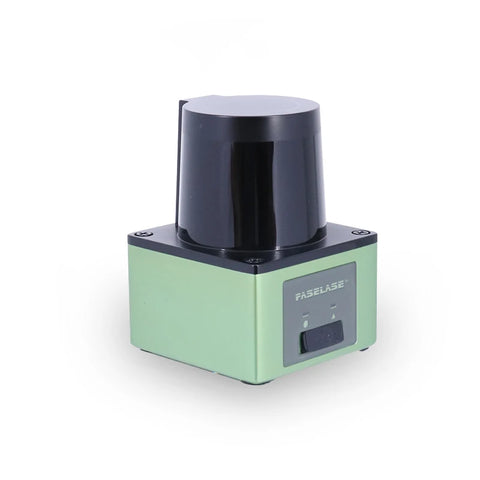

The F series lidar is a new compact, affordable 2-d lidar with FsaeLase laser radar .The main features of the products are fast measurement, small size, light weight, small power consumption, low cost.It is mainly used in industrial/commercial robot obstacle avoidance and navigation, screen interaction, safety gate, human flow detection and other fields.

Technical parameters

Model：F10T

Measuring distance：0.15～20m@10%

Angle resolution：0.27°

Scanning speed：15Hz

Output Interface：Ethernet/2*IO OUT(customizable)

Power supply：DC9V-36V

Scanning area：280°

Repeatability：±3cm

Distance resolution：1cm

light source：Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements

Dimensions：62x62x82 mm

Operating temperature：－10℃～＋50℃

storage temperature：－20℃～＋70℃

Protection level：IP65

Weight：210g

型号（Model）	F3	F6	F10	F20
测量距离 Measuring distance	0.05～3m@3%	0.05～6m@5%	0.15～10m@10%	0.15～20m@10%
角度分辨率 Angle resolution	0.27°	0.27°	0.27°	0.3°
扫描速度 Scanning speed	15Hz	15Hz	15Hz	25Hz
输出接口 Output Interface	4NPN OUT,4NPN IN/USB	4NPN OUT,4NPN IN	Ethernet/2*IO OUT(Can be customized)	Ethernet/2*IO OUT(Can be customized)
供电 Power supply	DC9V-36V
扫描区域 Scanning area	280°
重复精度 Repeatability	±3cm
距离分辨率 Distance resolution	1cm
光源 light source	激光二极管905nm，≤1mW；符合GB7247.1-2001；I类激光人眼安全要求 Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements
机械尺寸 Dimensions	62x62x82 mm
操作温度范围 Operating temperature	－10℃～＋50℃
存储温度范围 storage temperature	－20℃～＋70℃
防护等级 Protection level	IP65
重量 Weight	210g

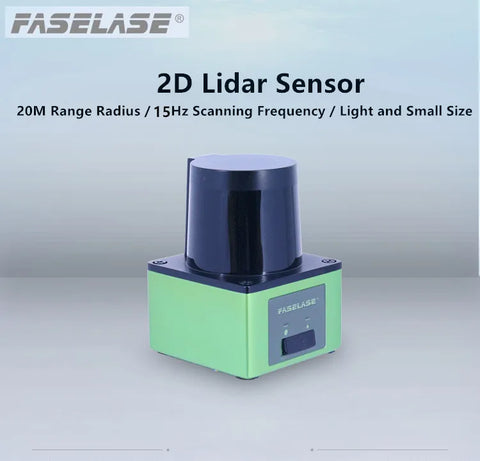

for AGV ROBOT FASELASE F10T TOF 20m indoor and outdoor waterproof dust-proof IP65 industrial-grade lidar
