WLR-718-Mini Product Description

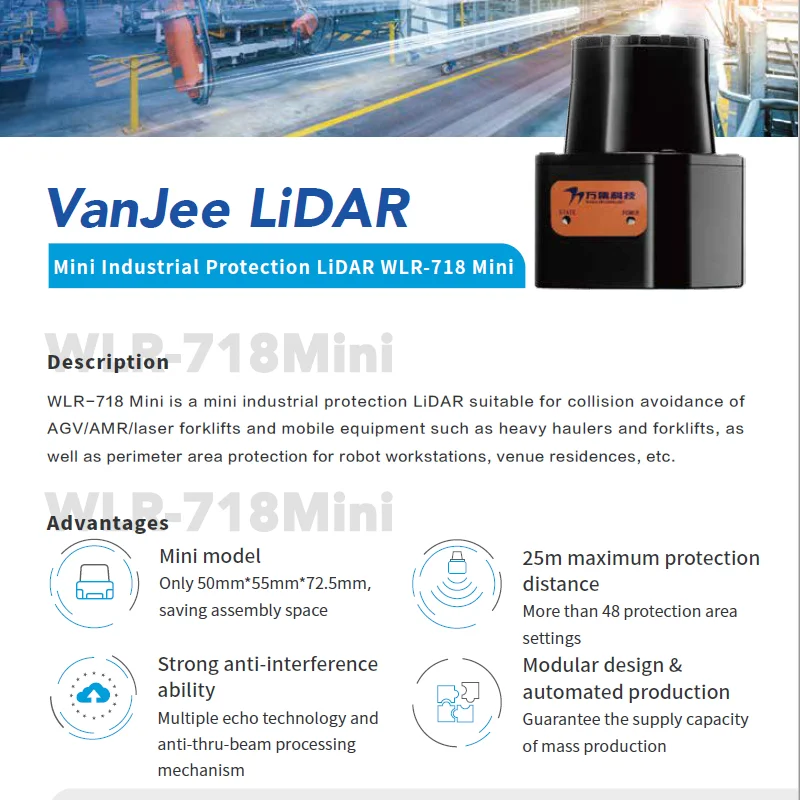

WLR-718-Mini is a measurement type mini LIDAR developed by Wuhan Wanji Optoelectronics Technology Co. Within the detection range of this LIDAR, different detection areas are set, and when the LIDAR detects an object entering the area, the detection result is outputted through the switching quantity. The LIDAR adopts the TOF principle of laser, combined with high-frequency laser pulse generation technology, precise optical scanning system and exquisite structural design, so that it can quickly and accurately achieve scanning and ranging in the range of 270°/10 meters (@10% reflectivity), and its high stability and strong anti-interference ability against ambient light. Forklifts and other types of industrial vehicles/robots for navigation and obstacle avoidance, as well as for logistics/security applications.
Equipment Features
Mini models to save assembly space.
High quality of point cloud, adapting to complex environment ranging and obstacle avoidance.
Ultra-small spot, the scatter angle can be reduced to 10 milliradians, more accurate distance measurement.
Ultra-low horizontal angle, horizontal angle control at ≤ 0.5 degrees, without fear of low installation position.
Flexible IO protection with custom adjustment of protection zones.
Modular design + automated production to guarantee mass production supply capacity.
IP66 protection level for stable operation outdoors.
-25℃~50℃ wide temperature range to meet the use of harsh environments.
The use of Class 1 lasers to ensure the safety of the human eye.
Support for multiple installation methods

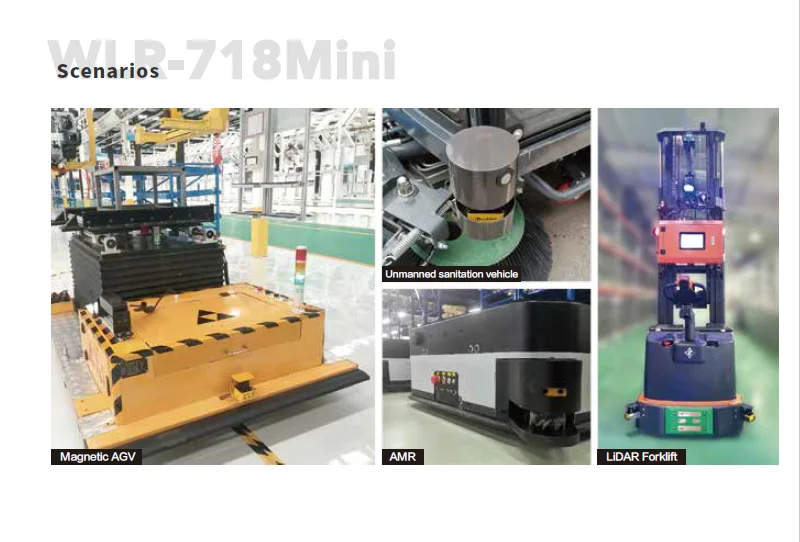

Applications
The 718-Mini's high performance features make it ideal for mobile robot chassis, unmanned forklifts and other types of industrial vehicles/robots for navigation and obstacle avoidance, as well as for logistics/security applications.
Mobile robot chassis.
Industrial vehicles/robots.
AMR intelligent logistics robot.
Unmanned handling laser forklifts.
AGV handling trolleys.
unmanned loading.
SR guiding, cleaning, extermination, inspection and delivery robots.
