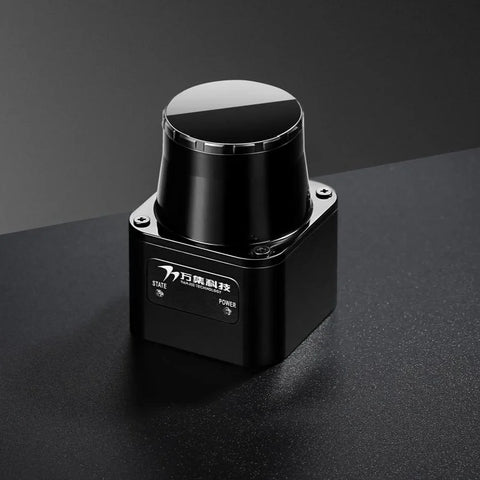

WLR-716-Mini product description

WLR-716- Mini is a measurement-type mini lidar independently developed by Wuhan VanJee Optoelectronics

Technology Co., Ltd. The lidar adopts the TOF principle of laser, combined with high-frequency laser pulse

generation technology, sophisticated optical scanning system and exquisite structural design, so that it can quickly

and accurately scan within the range of 270 °/10 meters (@10% reflectivity). Ranging, its high stability and strong

anti-interference ability to ambient light combined with its small size make it very suitable for navigation and

obstacle avoidance of mobile robot chassis, unmanned forklifts and other types of industrial vehicles/robots. It is also

suitable for logistics/security and other fields.

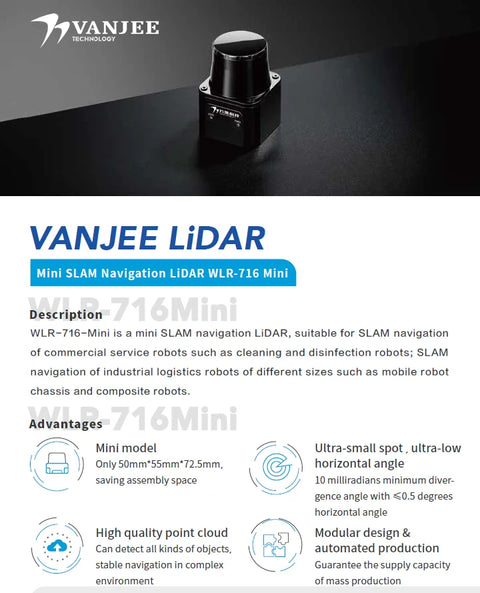

Equipment overview

 Mini model, saving assembly space;

 point cloud , suitable for complex environment navigation;

 Ultra-small light spot, the dispersion angle can be reduced to 10 milliradians, and the distance measurement is

more accurate;

 Ultra-low horizontal angle, the horizontal angle is controlled at ≤ 0.5 degrees, and is not afraid of low

installation positions;

 Flexible IO protection function, customize and adjust the protection area;

 Modular design + automated production to ensure mass production supply capacity;

 IP66 protection grade, can also operate stably outdoors;

 -25℃~50℃ wide temperature range, can meet the use of harsh environment;

 Adopt class 1 laser to ensure eye safety;

 Support multiple installation methods;

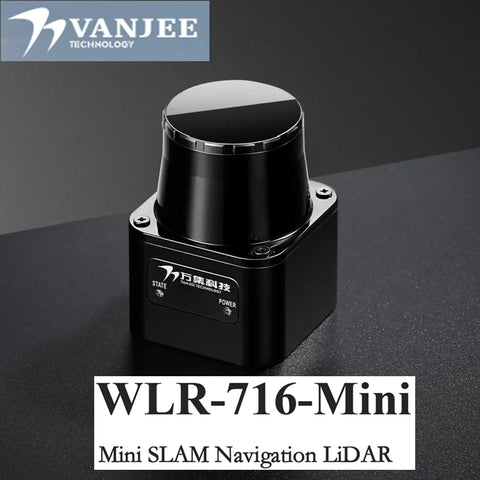

WLR-716mini 25m waterproof navigation obstacle avoidance liDAR for SR AMR outdoor high vibration, rain fog weather environment
