WLR-720 16-Line Mechanical LiDAR 3D Sensor 120M Ranging Radius For ROS Robot Mapping Navigation Autonomous Driving Robotics

WLR-720 16-line Lidar Description

WLR-720 is a 16-line mechanical lidar. It adopts the TOF ranging principle and has a scanning radius of up to 120 meters. It can obtain high-quality original point cloud data within a 30° vertical field of view. It has a built-in 6-axis IMU sensor. Angular velocity and acceleration data can be output and viewed through the host computer. This lidar is mainly used for navigation and positioning of low-speed driving vehicles and robots, as well as outdoor high-precision map drawing and obstacle detection. The lidar adopts automotive-grade production technology, built-in heating module and heat dissipation treatment, excellent light resistance and multiple echoes, etc. Functional design helps driverless vehicles be used in complex environments.

WLR-720 16-line Lidar Features

1.16-line scanning technology, scanning radius 120 meters, scanning frequency adjustable 5Hz/10Hz/20Hz, supports high-quality original point cloud data output within 30° in the vertical direction.

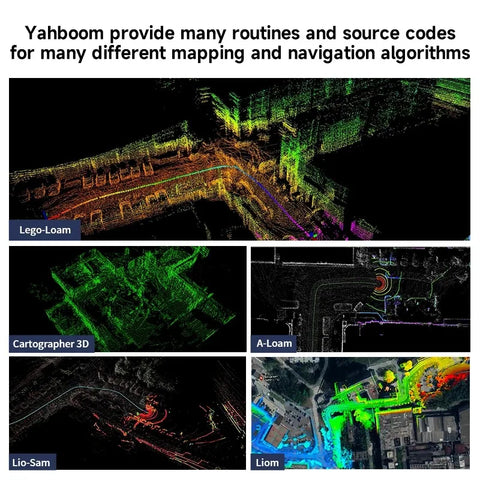

2.Yahboom provides routines for 6 3D mapping algorithms: Lego-Loam, Cartographer 3D, Lio-Sam, A-Loam, Liom, and Autoware.ai.

3.Built-in 6-axis IMU, and supports external IMU inertial navigation and GPS modules. With Yahboom's IMU inertial navigation module, it can achieve more accurate and detailed mapping navigation functions.

4.Complies with Class1 eye-safe laser and has a closed protective cover to better protect the radar and effectively reduce external interference.

WLR-720 16-line Lidar Shipping ListWLR-720 16-line Lidar Details

for AGV,AMR,laser forklifts,robot outdoor Navigation VanJee WLR-720 3D LiDAR 16-line Hybrid Navigation LiDAR sensor
