PRODUCT DETAILS

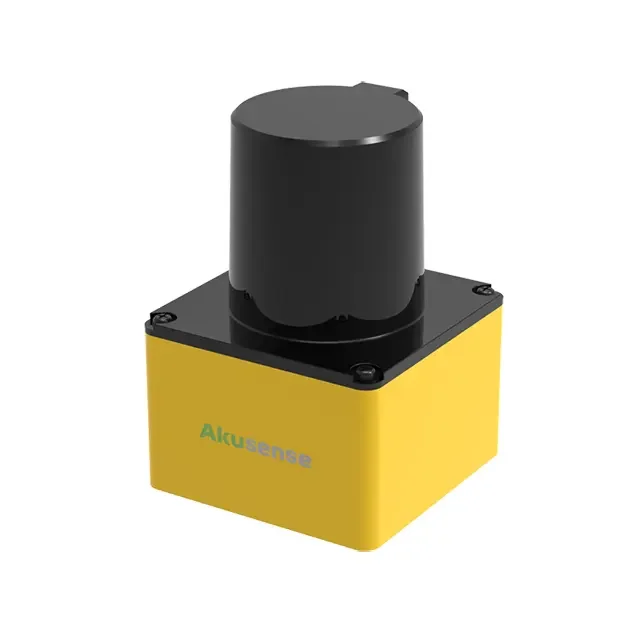

Model | AS-31C | |
Light source | Infrared(905nm) | |
Laser safety level | Class I (GB7247.1-2012, human eyes safety) | |
Scanning angle range | 270° | |
Sampling frequency | 30KHz | |
Scanning frequency | 10Hz/15Hz/20Hz/25Hz/30Hz | |
Scanning angle resolution | 0.12°/0.18°/0.23°/0.35° | |
Sensing range（with 70% reflection） | 0.1m - 20m | |
Sensing range（with 10% reflection） | 0.1m - 10m | |
Function | Nevigation | |
Working environment | indoor | |
Measurement error | Resolution | 1cm |
Linearity | 2cm | |
Communication | Ethernet | |
Working voltage | DC 12V | |
Power consumption | 5W | |
Rating | IP65(GB4208~2008) | |
Weight | 0.25kg | |

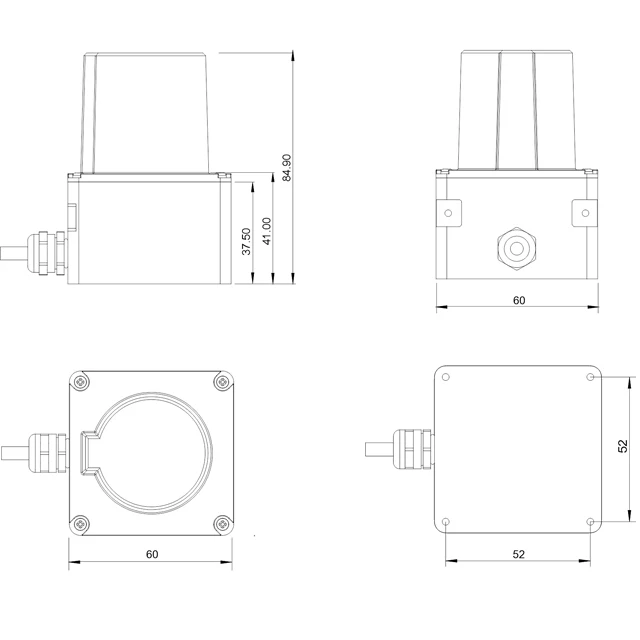

Dimension(L×W×h) | 60×60×84.9(mm) | |
Working temperature | -20℃~60℃ | |
Storage temperature | -20℃~70℃ | |
Ambient light | 80,000lux | |
