1）LiDAR Scanner for distance detection ;
2）Laser safety level: class 1, 360 degree detaction range;
3）Up to IP65 degree of protection;
4）Long time stable excellent performance with high sensitivity.
PRODUCT DETAILS
Advantages of AS-11C：
Specification
Light source | Infrared laser(905nm) | |
Laser safety level | Class 1 (GB7247.1-2012, Eye-safe IEC) | |
Laser spot diameter | 10 mm | |
Laser spot divergence angle | 10.0 (H) × 2.0 (V) mrad | |
Scanning angle | 360° | |
Scanning frequency | 12.5 Hz | |
Angular resolution | 0.5° | |
Sensing range | 0.1m ~ 20m | |
10% reflectivity range | 15m | |
Ambient environment | Indoor usage, Anti-dusty, Anti-sunlight | |
Rain fog and smoke penetration | Supported | |
Measurement error | System error (typical) | ±5 cm ( 1~15 m ) |
Statistical error (1σ) | ±2 cm ( 1~15 m ) | |
Built-in application Regional monitoring | Monitoring mode: Point number monitoring / target width monitoring / contour monitoring | |
Monitor signal type: Attention / warning / alarm | ||
Number of regional groups: 16 groups | ||
Number of concurrent work area group: 16 (max) | ||
Able to detect any shape of targets, normal target self-learning function | ||
Device self-diagnosis | Contents: Window cleanliness / blocking / high & low temperature Output mode: Indicator + TCP message | |
Ethernet | Rate: 10/100 Mbps; Network protocol: TCP/IP; Function: device configuration / measurement data output /monitoring signal output | |
I/O Input | Quantity：4; Type: Switching level input; High level range：10~28 V DC; Low level range: 0~5 V DC Preset function: Monitoring area selection (0x0 - 0xF); Regional monitoring dismiss / forced alarm, active level: high level | |
I/O Output | Quantity: 4; Type: PNP switch output ; Output voltage: Supply voltage; Power on: OFF; Device ready (OUT), active state: ON (High level), regional monitoring signal output (OUT2/OUT3/OUT4) active state: configurable | |
Indicator light | Quantity: 2; Definition: ERR (Device alarm: Fault/Abnormal ,window dirty / block, high and low temperature, Dense fog); HTR (operation status indication: monitoring signal / self-learning ） | |
Operating voltage | 12 ~ 28 V DC | |
Power consumption | 3.8W @DC 24 V | |
Outer covering protection rate | IP65(GB4208~2008) | |
Insulation resistance | 1ＭΩ(GB16796~2009.5.4.4) | |
Electrical strength | 0.5KV(GB16796~2009.5.4.3) | |
Weight | 0.5 kg | |
Dimension(L×W×H) | 86 ×85×59.5(mm) | |
Electromagnetic compatibility (EMC) | Electrostatic discharge | 6KV (GB/T17626.2~2006，class 3) |
Fast bursts | 1KV (GB/T17626.4~2008，class 2) | |
Electromagnetic field radiation immunity | GB/T17626.3~2006，class 2 | |
Surge immunity | GB / T17626.5-2008, Power interface: 1.2 / 50μs, 2KV / 1KA (Class 3) Ethernet interface: 10 / 700μs, 1KV / 25A (Class 2); I / O interface: 1.5 / 50μs, 0.5 KV / 0.25 KA (Class 1) | |
Impact | GB/T 2423.5 | |
Single impact | 15g, 11ms | |
Continuous impact | 10g, 16ms | |
Vibration | GB/T 2423.10 | |
Frequency Range | 10Hz~150Hz | |
Amplitude | 5g | |
Humidity | 93%, +40℃, 2h（GB/T 2423.3） | |
Operating temperature range | -10℃~+45℃ | |
Storage temperature range | -30℃~+70℃ | |
Ambient illumination range | ≤70,000lux | |
Model NO. | AS-11C | |
TOF LiDAR scanner
● 20M Sensing distance, the aviation aluminum
● 360°Examination range
● 0.5° resolution

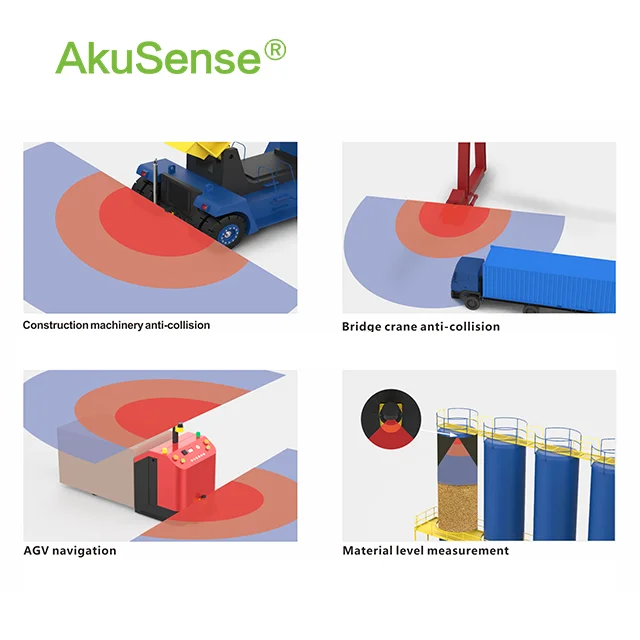

Applications
1: Collision avoidance (AGVs, mobile platforms and service robots)
2: Access protection (stationary machines, doors, gates)
3: Presence detection
4: Collision avoidance and localization for automated guided carts
