PRODUCT DETAILS

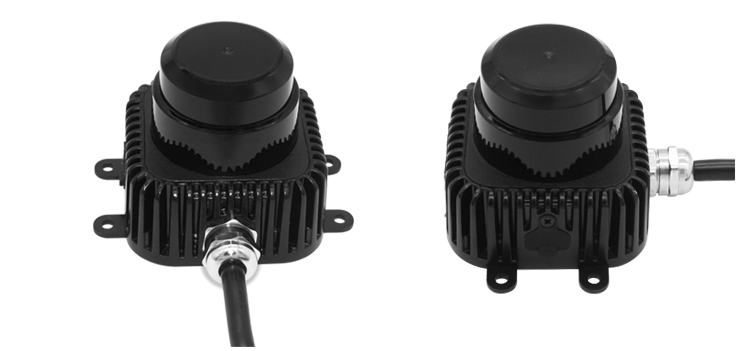

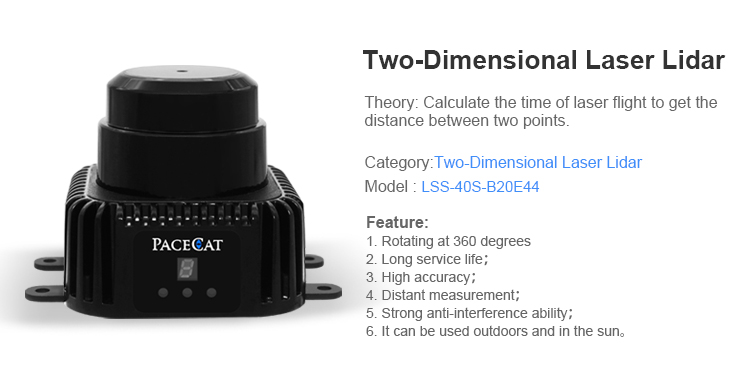

Model:LSS-40S-B20E44
Model | LDS-40S-B20E44 | |||
Distance | 0.1--40m | |||
Accuracy | ±30mm | |||
Range Resolution | mm | |||
Echo intensity | 0-254 | |||
Measure Frequency | 18KHZ | |||
Measure Angle | 360° | |||
Angle Resolution | 0.2°- 0.3° | |||
Scan Frequency | 10-15HZ | |||
Drive | Built-in dc brushless motor | |||
Communication Interface | Ethernet:TCP/IP USB:Micro-USB | |||
Output Mode | Four-way switch output | |||

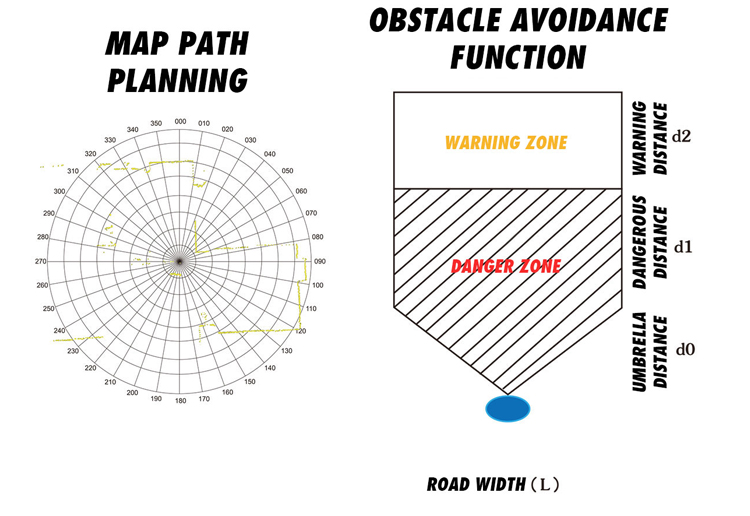

Programmable Alert Area | 16 Area Groups (Each Area Group Contains 3 Areas) | |||
Alert Area Support Shape | Supports Any Shape Such As ircle,Rectangle, Polygon,Etc | |||
Input | Four-way digital input | |||
Supply Voltage | DC10-26V | |||
Power Dissipation | <5W | |||
Optical Interference Resistance | ＞80000LX | |||
Size | 88（68）x68x59mm | |||
Weight | 500g | |||
Waterproof | IP67/IP65 | |||
Working Temperture | ﹣10~＋50℃ | |||
Warranty | 1 Year | |||
Origin | China | |||
