PRODUCT DETAILS
LSLIDAR 16-Channel LiDAR
The LS 16-Channel LiDAR independently developed by LeiShen is highly cost-effective, and can be adopted in outdoor Automatic driving vehicles for driving assistance and unmanned driving.
1. Product Profile
1.1 Overview

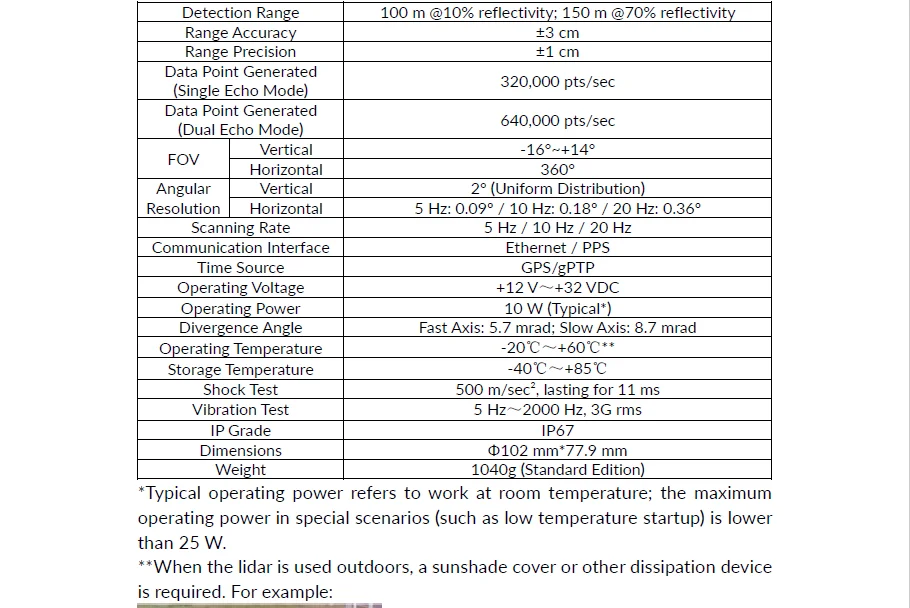

The C16 lidar realizes 360° three-dimensional high-speed scanning with 16 laser beams. It reaches a detection distance of up to 150 m, measurement accuracy of ±3 cm, and a minimum vertical angular resolution of 2°. This lidar sensor is widely used in unmanned driving, automotive ADAS, intelligent transportation, service robot, logistics, surveying and mapping, security, industry, ports and other fields.
1.2 Mechanism

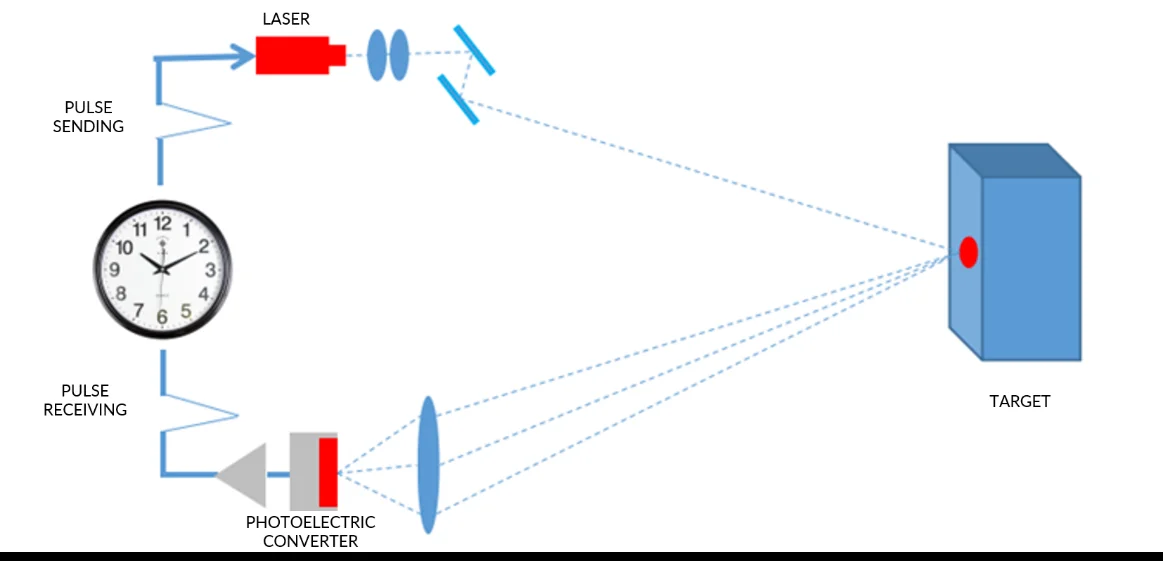

The C16 mechanical lidar adopts the Time of Flight method. The lidar starts timing (t1) when the laser pulses are sent out. And when the laser encounters the target object and the light returns to the sensor unit, the receiving end stops timing (t2).
Distance = Speed of Light*(t2 – t1)/2

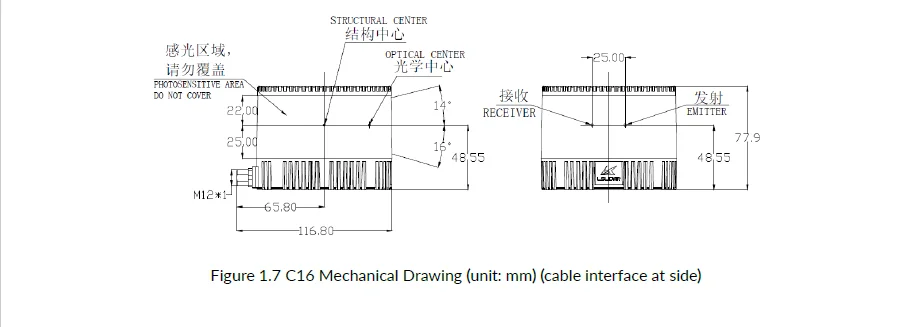

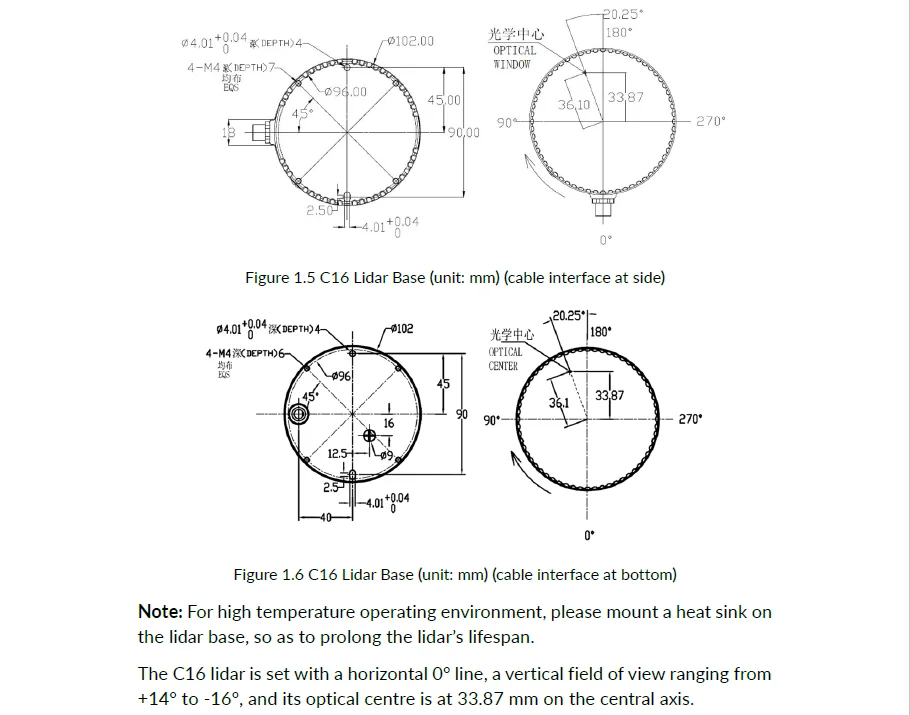

1.4 Mechanical Structure
There are 2 kinds of C16 lidars (cable interface on the bottom or on the side) for you to choose from according to actual needs.
The C16 lidar is equipped with 16 pairs of laser transmitter and receiver modules. Its motor is driven at a rotation speed of 5 Hz/10 Hz/20 Hz to cover a 360° scan range.
Automatic navigation applicable to various outdoor driverless vehicles/robots
Excellent performance and low cost make the product a great choice for driverless vehicles designed for sightseeing (in outdoor tourist areas), parcel delivering,and police patrolling, as well as EOD robots.
