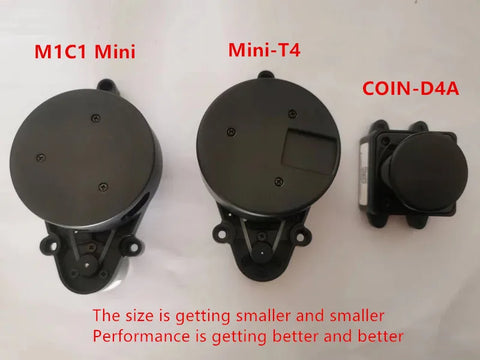

COIN-D4A lidar

Tips:

Dear buyer, after placing an order, if you need all the information and software of COIN-D4A lidar, please contact the seller.

COIN-D4A is a new generation of coaxial 360 ° scanning ranging laser radar developed by Guoke Optical Core. The product is based on the direct time of flight (dToF) ranging principle. The internal rotating parts use Wireless power transfer and photoelectric communication technology, together with optical, electrical and algorithm design, to achieve high-frequency high-precision distance measurement, with a maximum measuring radius of 12m. This product is suitable for practical application scenarios such as map surveying, intelligent device navigation and obstacle avoidance, and environmental modeling.

Product characteristics

1.The maximum measurement range is 0.05m-12m.

2.Adopting the direct time of flight (dToF) ranging principle.

3.The scanning range is 360 °, and the angle resolution is 0.9 °.

4.Coaxial design, small size, and can be installed internally.

5.Brushless motor is used, with a long service life of over 10000 hours.

Performance parameter

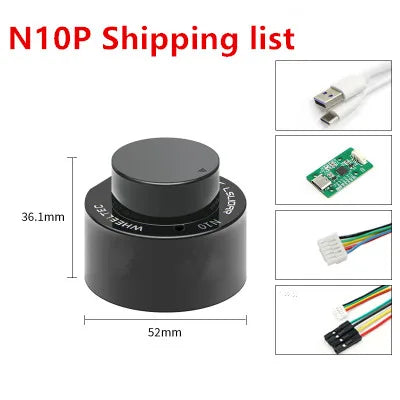

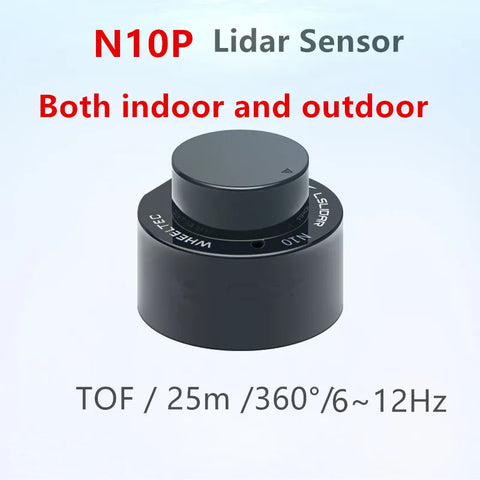

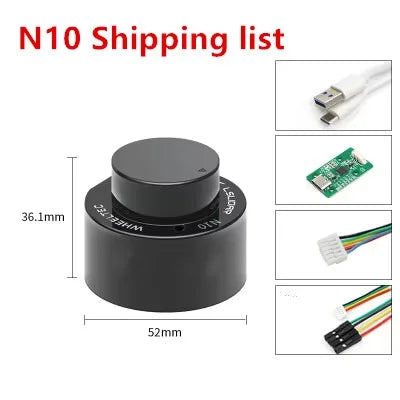

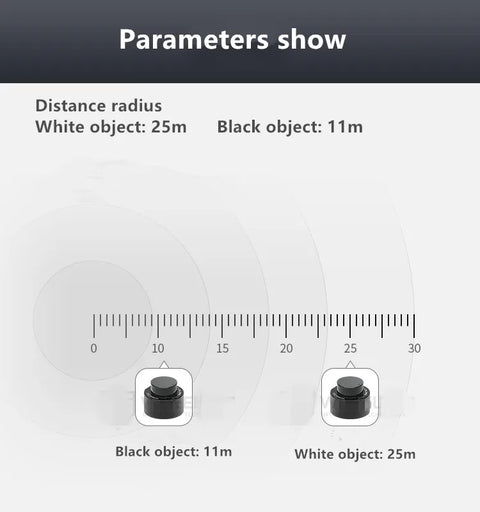

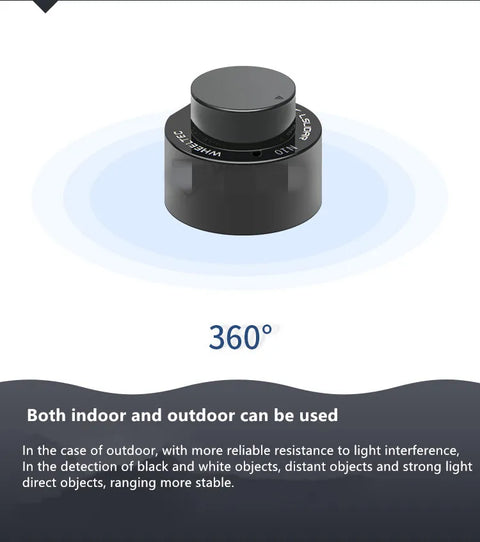

360° TOF anti-glare laser radar support ROS1 and ROS2 LSlidar N10P and N10 Indoor and outdoor waterproof 25m Lidar sensor
