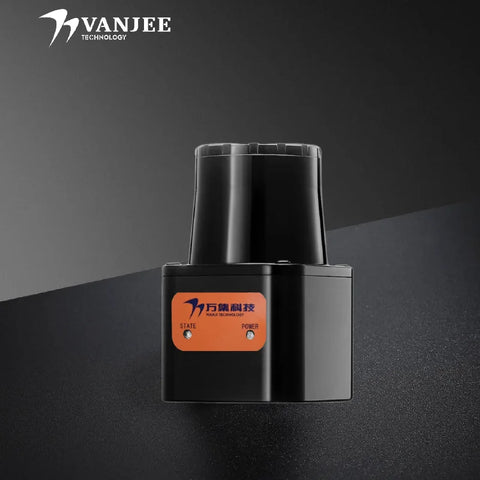

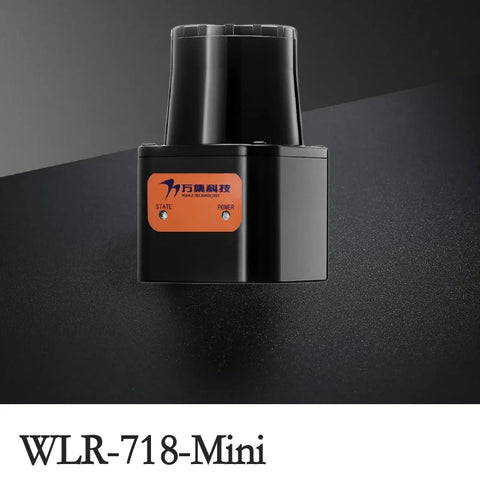

WLR-718-Mini Product Description

WLR-718-Mini is a measurement type mini LIDAR developed by Wuhan Wanji Optoelectronics Technology Co. Within the detection range of this LIDAR, different detection areas are set, and when the LIDAR detects an object entering the area, the detection result is outputted through the switching quantity. The LIDAR adopts the TOF principle of laser, combined with high-frequency laser pulse generation technology, precise optical scanning system and exquisite structural design, so that it can quickly and accurately achieve scanning and ranging in the range of 270°/10 meters (@10% reflectivity), and its high stability and strong anti-interference ability against ambient light. Forklifts and other types of industrial vehicles/robots for navigation and obstacle avoidance, as well as for logistics/security applications.

Equipment Features

 Mini models to save assembly space.

 High quality of point cloud, adapting to complex environment ranging and obstacle avoidance.

 Ultra-small spot, the scatter angle can be reduced to 10 milliradians, more accurate distance measurement.

 Ultra-low horizontal angle, horizontal angle control at ≤ 0.5 degrees, without fear of low installation position.

 Flexible IO protection with custom adjustment of protection zones.

 Modular design + automated production to guarantee mass production supply capacity.

 IP66 protection level for stable operation outdoors.

 -25℃~50℃ wide temperature range to meet the use of harsh environments.

 The use of Class 1 lasers to ensure the safety of the human eye.

 Support for multiple installation methods

Applications

The 718-Mini's high performance features make it ideal for mobile robot chassis, unmanned forklifts and other types of industrial vehicles/robots for navigation and obstacle avoidance, as well as for logistics/security applications.

 Mobile robot chassis.

 Industrial vehicles/robots.

 AMR intelligent logistics robot.

 Unmanned handling laser forklifts.

 AGV handling trolleys.

 unmanned loading.

 SR guiding, cleaning, extermination, inspection and delivery robots.

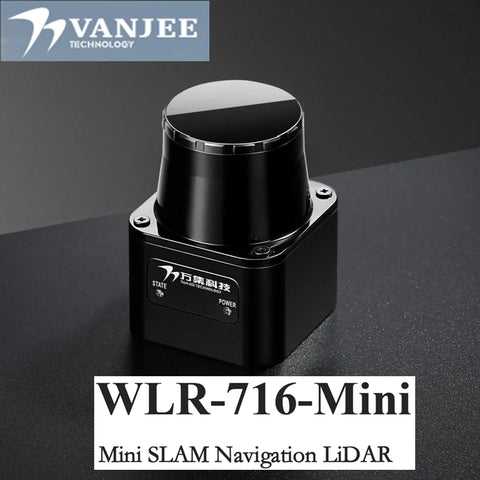

WLR-716-Mini product description

WLR-716- Mini is a measurement-type mini lidar independently developed by Wuhan VanJee Optoelectronics

Technology Co., Ltd. The lidar adopts the TOF principle of laser, combined with high-frequency laser pulse

generation technology, sophisticated optical scanning system and exquisite structural design, so that it can quickly

and accurately scan within the range of 270 °/10 meters (@10% reflectivity). Ranging, its high stability and strong

anti-interference ability to ambient light combined with its small size make it very suitable for navigation and

obstacle avoidance of mobile robot chassis, unmanned forklifts and other types of industrial vehicles/robots. It is also

suitable for logistics/security and other fields.

Equipment overview

 Mini model, saving assembly space;

 point cloud , suitable for complex environment navigation;

 Ultra-small light spot, the dispersion angle can be reduced to 10 milliradians, and the distance measurement is

more accurate;

 Ultra-low horizontal angle, the horizontal angle is controlled at ≤ 0.5 degrees, and is not afraid of low

installation positions;

 Flexible IO protection function, customize and adjust the protection area;

 Modular design + automated production to ensure mass production supply capacity;

 IP66 protection grade, can also operate stably outdoors;

 -25℃~50℃ wide temperature range, can meet the use of harsh environment;

 Adopt class 1 laser to ensure eye safety;

 Support multiple installation methods;
