Advantages of AS-11C：

1）LiDAR Scanner for distance detection ;
2）Laser safety level: class 1, 360 degree detaction range;
3）Up to IP65 degree of protection;
4）Long time stable excellent performance with high sensitivity.

Specification

Light source		Infrared laser(905nm)
Laser safety level		Class 1 (GB7247.1-2012, Eye-safe IEC)
Laser spot diameter		10 mm
Laser spot divergence angle		10.0 (H) × 2.0 (V) mrad
Scanning angle		360°
Scanning frequency		12.5 Hz
Angular resolution		0.5°

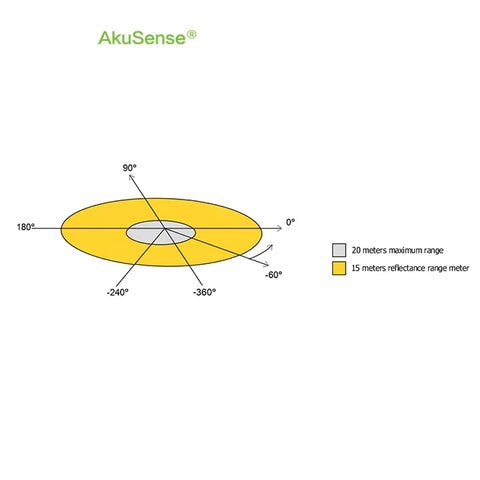

Sensing range		0.1m ~ 20m
10% reflectivity range		15m
Ambient environment		Indoor usage, Anti-dusty, Anti-sunlight
Rain fog and smoke penetration		Supported
Measurement error	System error (typical)	±5 cm ( 1~15 m )
	Statistical error (1σ)	±2 cm ( 1~15 m )
Built-in application Regional monitoring		Monitoring mode: Point number monitoring / target width monitoring / contour monitoring
		Monitor signal type: Attention / warning / alarm
		Number of regional groups: 16 groups
		Number of concurrent work area group: 16 (max)
		Able to detect any shape of targets, normal target self-learning function
Device self-diagnosis		Contents: Window cleanliness / blocking / high & low temperature Output mode: Indicator + TCP message
Ethernet		Rate: 10/100 Mbps; Network protocol: TCP/IP; Function: device configuration / measurement data output /monitoring signal output
I/O Input		Quantity：4; Type: Switching level input; High level range：10~28 V DC; Low level range: 0~5 V DC Preset function: Monitoring area selection (0x0 - 0xF); Regional monitoring dismiss / forced alarm, active level: high level
I/O Output		Quantity: 4; Type: PNP switch output ; Output voltage: Supply voltage; Power on: OFF; Device ready (OUT), active state: ON (High level), regional monitoring signal output (OUT2/OUT3/OUT4) active state: configurable
Indicator light		Quantity: 2; Definition: ERR (Device alarm: Fault/Abnormal ,window dirty / block, high and low temperature, Dense fog); HTR (operation status indication: monitoring signal / self-learning ）
Operating voltage		12 ~ 28 V DC
Power consumption		3.8W @DC 24 V
Outer covering protection rate		IP65(GB4208~2008)
Insulation resistance		1ＭΩ(GB16796~2009.5.4.4)
Electrical strength		0.5KV(GB16796~2009.5.4.3)
Weight		0.5 kg

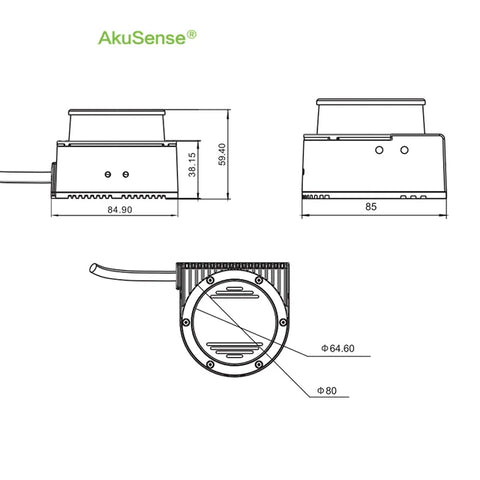

Dimension(L×W×H)		86 ×85×59.5(mm)
Electromagnetic compatibility (EMC)	Electrostatic discharge	6KV (GB/T17626.2~2006，class 3)
	Fast bursts	1KV (GB/T17626.4~2008，class 2)
	Electromagnetic field radiation immunity	GB/T17626.3~2006，class 2
Surge immunity		GB / T17626.5-2008, Power interface: 1.2 / 50μs, 2KV / 1KA (Class 3) Ethernet interface: 10 / 700μs, 1KV / 25A (Class 2); I / O interface: 1.5 / 50μs, 0.5 KV / 0.25 KA (Class 1)
Impact		GB/T 2423.5
Single impact		15g, 11ms
Continuous impact		10g, 16ms
Vibration		GB/T 2423.10
Frequency Range		10Hz~150Hz
Amplitude		5g
Humidity		93%, +40℃, 2h（GB/T 2423.3）
Operating temperature range		-10℃~+45℃
Storage temperature range		-30℃~+70℃
Ambient illumination range		≤70,000lux

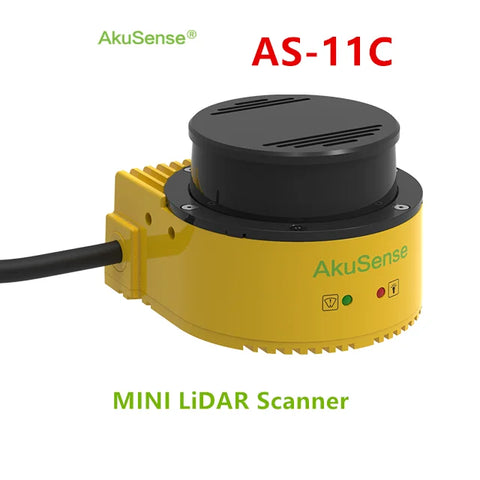

Model NO.		AS-11C

TOF LiDAR scanner

● 20M Sensing distance, the aviation aluminum
● 360°Examination range
● 0.5° resolution

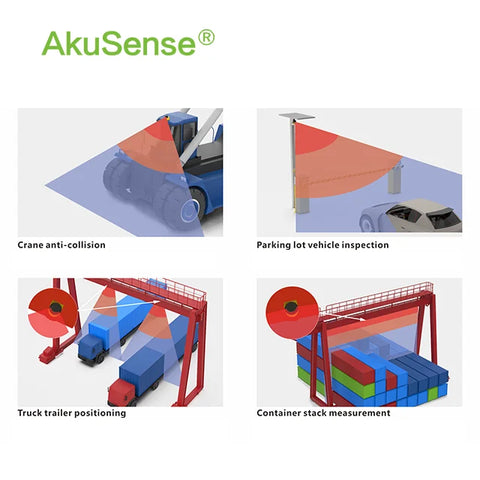

Applications

1: Collision avoidance (AGVs, mobile platforms and service robots)

2: Access protection (stationary machines, doors, gates)
3: Presence detection
4: Collision avoidance and localization for automated guided carts
