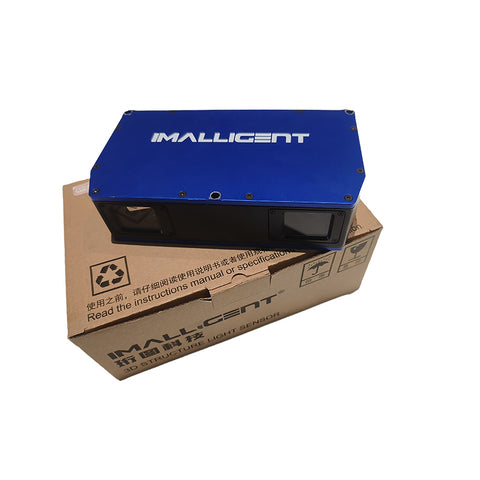

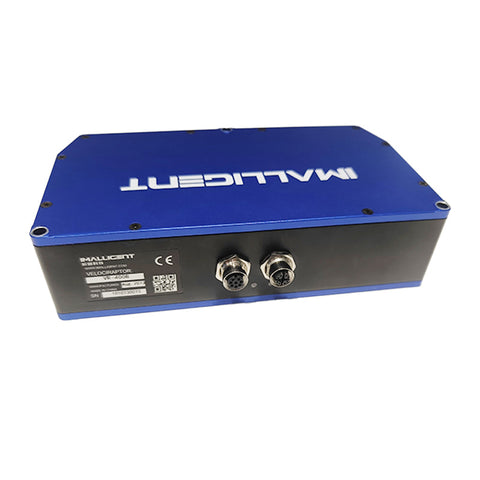

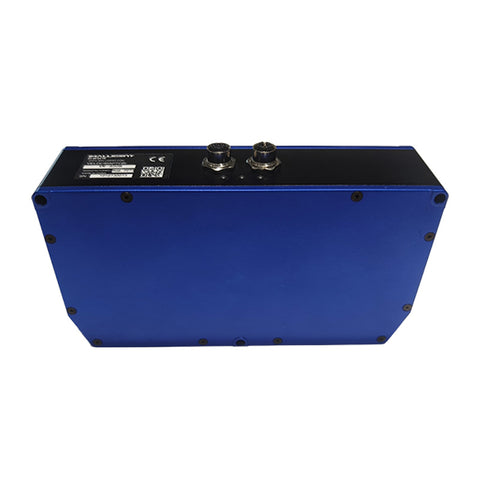

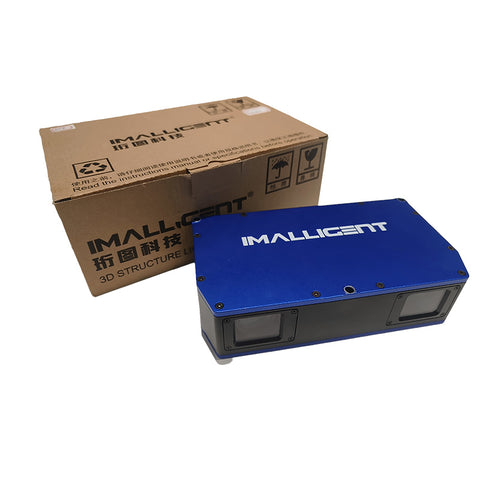

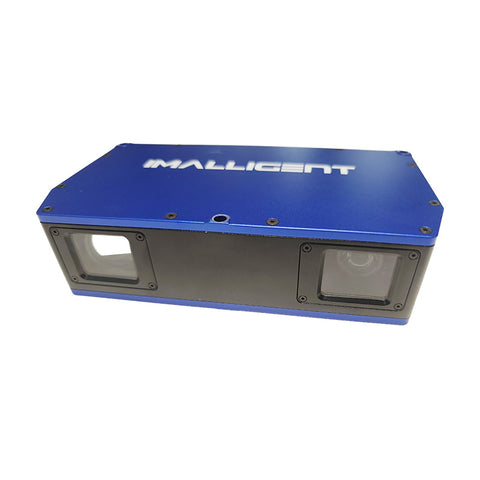

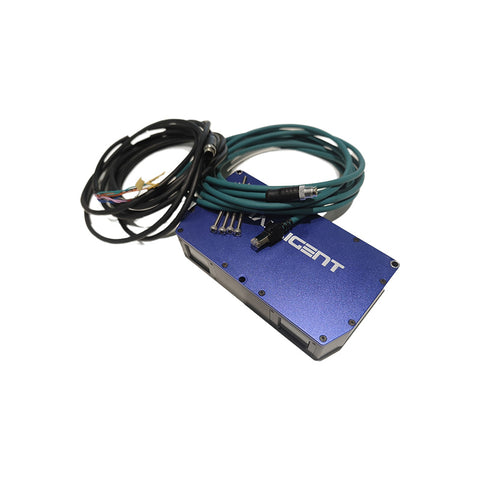

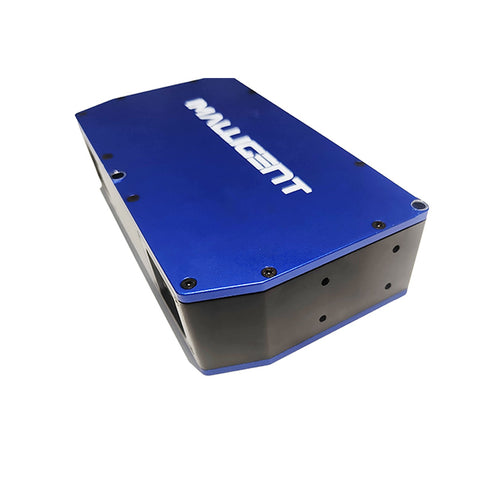

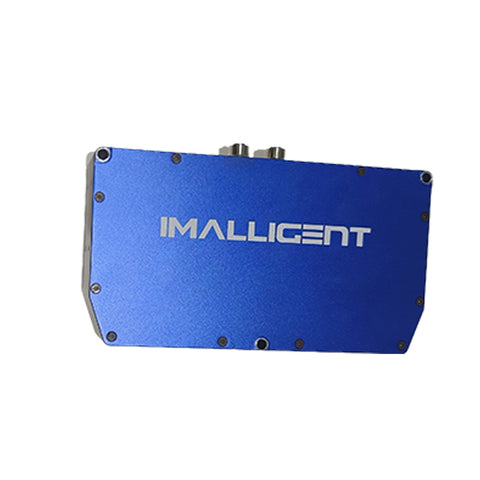

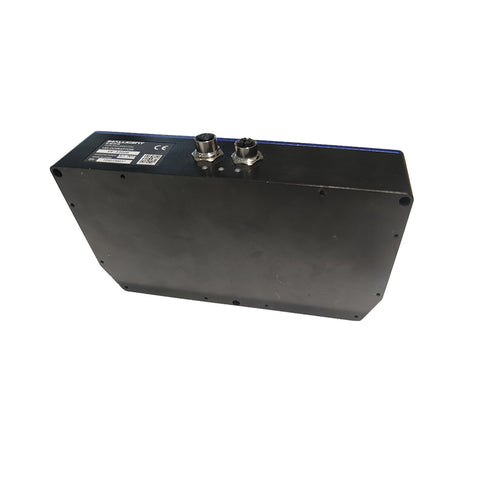

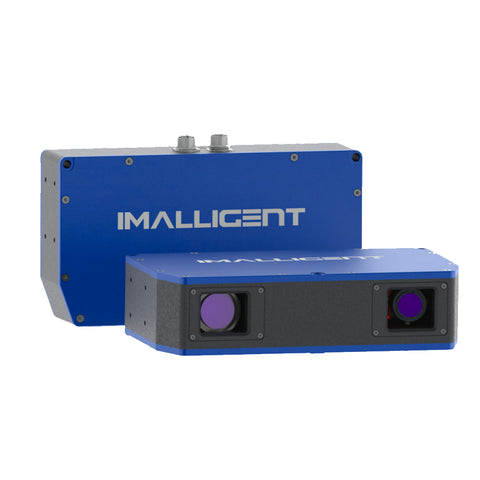

Area-scanning Structured Light 3D Camera - VR Series

Featuring NVIDIA CUDA cores and DLP projection, this system delivers a
scanning speed of up to 8 frames per second, with a field of view ranging from
210mm to 2200mm and a Z-axis repeatability accuracy of up to 51μm, making it
perfect for high-definition 3D imaging across diverse scenarios.

Core Technology Advantages

🔹 High-Speed 3D Capture

NVIDIA CUDA-accelerated processing at 3.3-8 fps
3.2 million points/scan with DLP blue light projection

🔹 Unmatched Precision

51μm Z-axis repeatability (VR-400B)
0.2-0.97mm XY resolution across models

🔹 Adaptive Field of View

4 configurable models covering 210mm-3.8m scanning range
Single-frame depth up to 1.9m (VR-2300B)

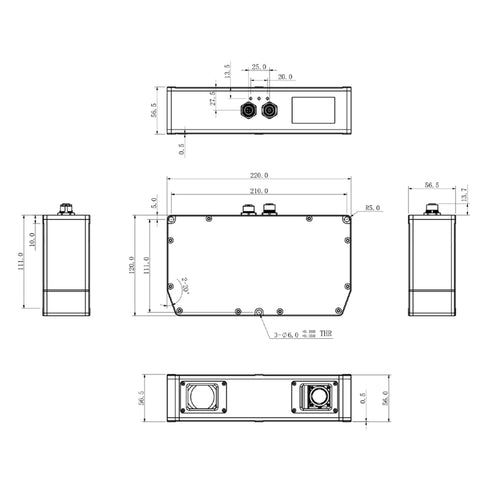

Outside dimension

VR Series PRODUCT SPECIFICATION

Model	VR-400B	VR-600B	VR-1300B	VR-2300B
Resolution			3.2M 3D Point Cloud
Scan Range (Z-axis)	350~650 mm	500~900 mm	900~2200 mm	1900~3800 mm

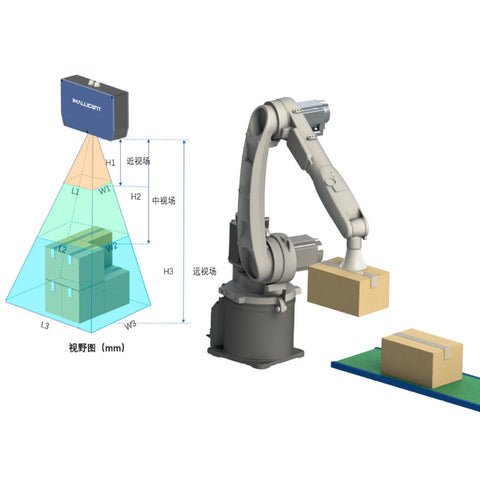

Near-field (WD)	210×160 mm(350)	300×230 mm(500)	520×380 mm(900)	1100×800 mm(1900)
Mid-field (WD)	300×230 mm(500)	420×300 mm(700)	870×640 mm(1500)	1500×1200 mm(2800)
Far-field (WD)	380×280 mm(650)	520×380 mm(900)	1260×920 mm(2200)	2200×1550 mm(3800)
XY Resolution	0.2 mm	0.27 mm	0.57 mm	0.97 mm
Z-axis Repeatability	51 µm	67 µm	144 µm	243 µm
Optimal Scanning Volume	300×230×150 mm	420×300×200 mm	870×640×700 mm	1500×1200×1200 mm
Typical Applications	Precision 3D Inspection • Micro-component measurement • Mold surface analysis	High-Speed Depalletizing • Box dimensioning • Conveyor tracking	Industrial Bin Picking • Casting parts handling • Machine parts sorting	Large-Scale Guidance • Aircraft component alignment • Shipbuilding positioning
Scan Rate	3.3 fps
Power Consumption	≤ 25 W	≤ 25 W	≤ 35 W	≤ 50 W
Input Voltage	DC 24V
Light Source	Blue Light
Data Interface	Gigabit Ethernet
Dimensions	220×120×56 mm
Weight	1800 g

Model Selection Guide:

VR-400B: Ideal for small-to-medium precision parts inspection with 0.2mm resolution
VR-600B: Perfect balance for mid-sized components with 500-900mm scanning range
VR-1300B: Designed for large industrial assemblies up to 2.2m height
VR-2300B: Heavy-duty scanning for oversized structures up to 3.8m

VR Series Case imaging

Why Choose VR Series?

✅ Industry-Leading Accuracy - Sub-100μm repeatability
✅ Configurable Platforms - 4 models for all scales
✅ Robust Construction - 1800g ruggedized design
✅ Future-Proof Interfaces - Gigabit Ethernet & CUDA support

Imalligent Bigframe Area-scanning Structured Light 3D Camera VR Series
