iHawk072 Product Description

The iHawk072 module is an advanced structured light 3D depth camera, designed for seamless integration into client products. Ideal for close-range 3D imaging, it is widely applicable in industrial control, consumer electronics, facial recognition, robotics, and automation.

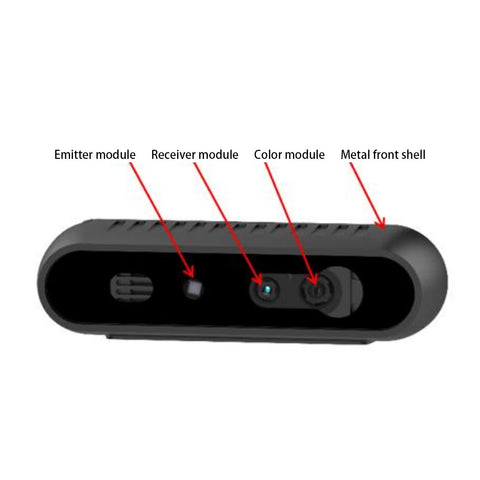

This module features a high-precision depth sensing solution comprising three key components: optical components, image processing hardware, and software algorithms. With onboard depth processing, it eliminates the need for external computational power, ensuring real-time and efficient depth mapping.

The iHawk072 comes with a self-developed, cross-platform SDK supporting Android, Windows, and Linux, enabling effortless integration into AI cameras, ToF sensors, LiDAR applications, smart security systems, and machine vision solutions. This makes it an ideal choice for robotics, 3D scanning, gesture recognition, and other AI-driven applications.

Product specification

Name	Parameters
Type	iHawk072
Baseline	16mm
Size	90x25x25 mm
Range	0.1-1.5m
Depth accuracy	<1%@0.1-1.5m
Power	2.5W
Hardware interface	Type-C 2.0
Power supply	USB 5V
Laser wavelength	940nm
Operating temperature	-10°C~50°C
Depth image	Resolution/Frame rate ：1280 x 800 @7fps / 640 x 400 @30fps FOV： 77°(±3°) x 54.7°(±3°) Format： Raw16
RGB image	Resolution/Frame rate： 640x400@30fps FOV ：77°(±3°) x 54.7°(±3°) Image coding format：MJPEG
Firmware function	Firmware upgrade, support OTA, automatic startup after the upgrade

iHawk Structured light camera 072 1.5M
