SPAD dToF Lidar Sensor，10 meters range / 240*96pixels / H120° * V48°

The VI4331 3D dTOF sensor integrates a large-area single-photon avalanche diode (SPAD) receiver array and a VCSEL laser emitter, enabling accurate distance measurement of objects irrespective of their color, reflectivity, or surface texture. This provides a compact and cost-effective solution for miniaturized 3D perception applications in diverse market segments. Leveraging independently developed SPAD technology and proprietary time-of-flight (ToF) signal acquisition and processing algorithms, the module delivers high-precision, image-level 3D point cloud output with sub-centimeter accuracy.

The module incorporates a fully integrated system comprising the SPAD detector, VCSEL light source and driver, and optical lens assembly. Utilizing sub-nanosecond light pulses and an advanced eye-safe control circuit, it complies with IEC 60825-1 Class 1 eye safety standards. To minimize interference from ambient light, the sensor employs a narrow-band optical filter combined with an internal ambient light suppression algorithm, achieving reliable 3D ranging performance up to 10 meters in indoor environments and 2.5 meters outdoors.

Technical parameters

Parameter	Value
Sensor Model	VI4331
Measurement Range	0.1 m – 15 m
Measurement Resolution	1 mm
Pixel Array Size	Up to 240 × 96
Field of View	120° × 48°
Frame Rate	Up to 15fps
Typical Power Consumption (Measurement Mode)	< 1W （1）
Hardware Interface	FPCBTB connector, I2C MIPICSI2.0: Histogram mode 2 lines; DSP mode 1 line
Operating Voltage	5V; Laser power supply VLD: 15V - 30V
Operating Temperature	–20 °C to 70 °C
Laser Wavelength	905 nm
Mechanical Dimensions	32mm×19mm×13mm

（1）10K integration count, frame rate of 10 fps, starting peak power of 20W @ 1ns

Note： If you want to test the performance, it is recommended to purchase one VI4331 Lidar Evaluation kit

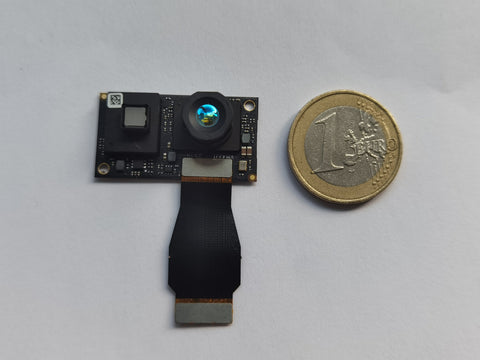

SPAD dToF Lidar Sensor VI4331 , 10 meters range / 240*96pixels / H120° * V48°
