Description:

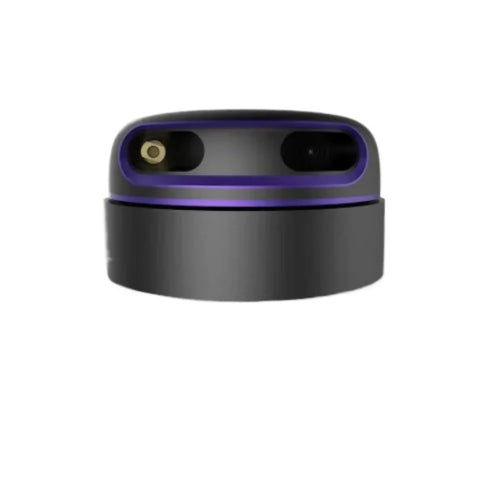

The RPLIDAR A3M1 is a 360° LiDAR sensor designed for both indoor and outdoor environments, offering a 25-meter range and a high sample rate of 16,000 times per second. With an enhanced optical design and advanced algorithm, it provides precise mapping and reliable obstacle detection. Featuring a 4 cm ultra-thin body, it integrates a brushless motor for low noise and long-lasting performance, utilizing SLAMTEC's OPTMAG technology for a lifespan of up to 5 years. Its versatile operation modes ensure optimal performance in both indoor mapping and outdoor daylight conditions. Certified with Class 1 laser safety standards.

Ranging 16000 Times per Second
The sample rate of LIDAR directly decides whether the robot can build map quickly and accurately.
RPLIDAR A3 improves the internal optical design and algorithm system to make the sample rate up to 16000 times, which is much better than most competitors.

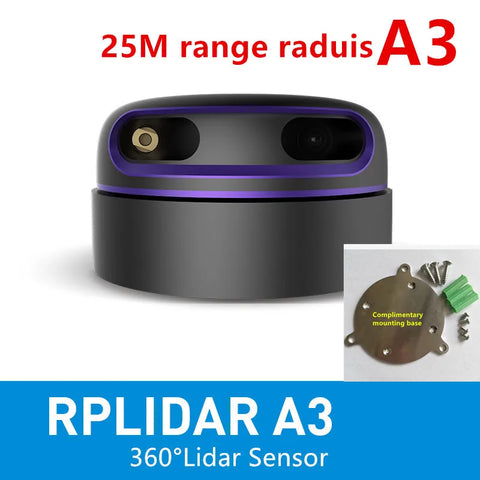

25 Meters Range Radius
With algorithm optimization, the ranging radius of RPLIDAR A3 has been increased to 25 meters,
which means more environment outline information is to be collected

Indoor and Outdoor Availability
PLIDRA A3 supports to work under two modes alternatively: enhanced mode and outdoor mode .
In enhanced mode, RPLIDAR A3 works with the maximum ranging radius and sampling rate to realize
an optimistic mapping performance in indoor environments.
While in outdoor mode, RPLIDAR A3 works with a more reliable resistance to daylight interference.
It keeps its stable performance when detecting white and black objects.

360 Degree Omnidirectional Laser Range Scanning
The ranging core of RPLIDAR A3 runs clockwise to perform a 360 degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.

4 Centimeters Ultra-thin
With the carefully designed parts and internal mechanical system, the RPLIDAR A3 keeps its exceptional performance within its 4-cm thick compact size. It is ideal for all kinds of service robots.

Brushless Motor, Low Noise, New Non-contact Drive
Compared with the traditional belt drive mode, RPLIDAR A3 uses the self-designed brushless motor to reduce the mechanical friction in running.
Therefore, the RPLIDAR A3 can run smoothly without any noise.

OPTMAG Original Design, 5 Years Ultra-long Life
Most traditional non-solid LIDARs use slip ring to transfer power and data information, however, they only have thousands of hours of life due tomechanical wearing out. SLAMTEC has integrated the wireless power and optical communication technology to self-design the OPTMAG technology, which breakouts the life limitation of traditional LIDAR system. It fixes the electrical connection failure caused by the physical wearing out so as to prolong the life to 5 years and even more.

The RPLIDAR A3 system adopts the low power infrared laser light as its light source, and drives it by using modulated pulse. The laser emits light in a very short time frame which can ensure its safety to human and pets. It has already reached Class 1 Safety Standard.

SLAMTEC RPLIDAR A3M1 360° LiDAR Sensor 25M Range, 16000 Samples
