Description:

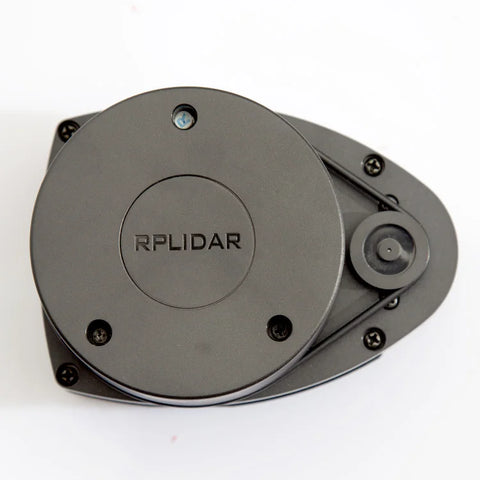

The RPLIDAR A1 from SLAMTEC is an affordable, high-performance 360° 2D laser scanner designed for a variety of applications including robotics, mapping, and object/environment modeling. With a scanning range of up to 12 meters and a configurable scanning frequency of up to 10 Hz, it provides accurate and reliable data for navigation and obstacle avoidance. This versatile LiDAR sensor works efficiently in both indoor and outdoor environments, delivering high-quality point cloud data for precise mapping and localization tasks.

Kind reminder: For customers in Russia, it is better to choose the warehouse in Russia (express) for delivery, so that you can receive the goods within 3 days at the soonest.

Dear buyer,
SLAMTEC original factory notice:

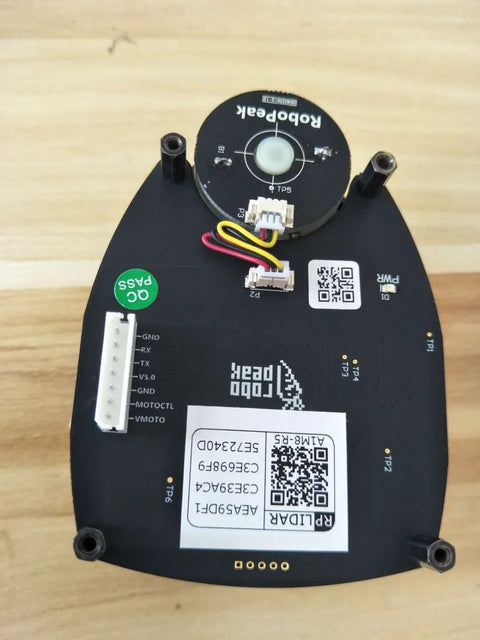

In December 2020, the RPLIDAR A1 lidar was upgraded from A1M8-R5 version to A1M8-R6 version. Therefore, the versions currently being shipped are A1M8-R6

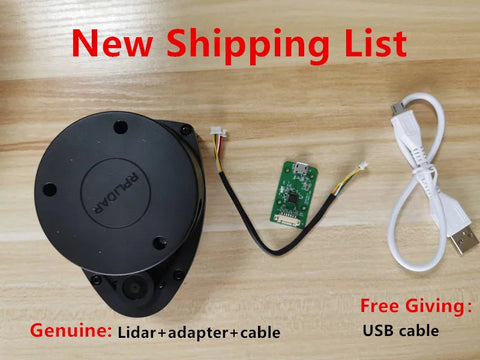

The main changes are as follows:
1. The white lines turn black
2. The black adapter plate turns green
3. A black bottom plate was removed from the back of the lidar

RPLiDAR A1 A1M8 360 Degree Omnidirectional 2D Laser Range Distance Lidar Sensor Module Scanning Scanner Kit 12M Range FZ3296

Description:

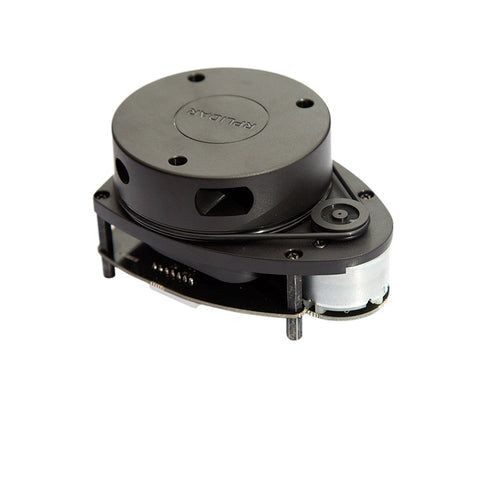

RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360degree scan within 6meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 360 points each round. And it can be configured up to 10 hz maximum.

RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight.

Features:
Measures distance data in more than 8000 times/s
360 Degree Omnidirectional Laser Range Scanning
8000 times sample rate,the highest in the current economical LIDAR industry
OPTMAG Original Design,prolong the life-span
Configurable Scan Rate from 2-10Hz
Ideal for Robot Navigation and Localization
Plug and Play

Slamtec RPLIDAR A1 360° 12m LiDAR Sensor for Robot Navigation
