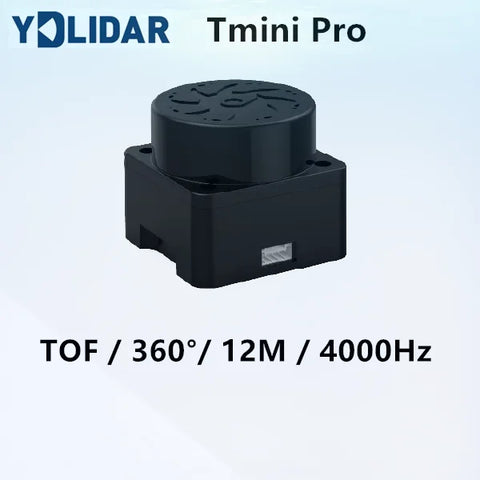

Product Introduction

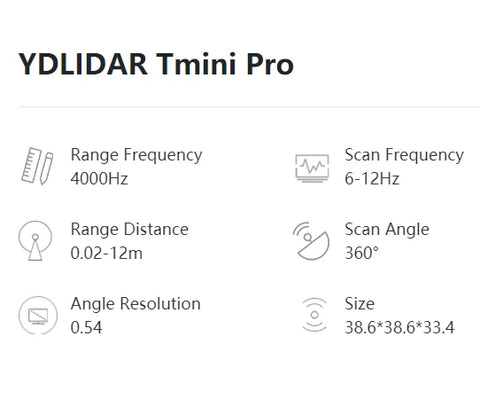

Product Features

Dustproof and waterproof

360 degrees scanning and ranging,6-12Hz scan frequency

Ranging frequency up to 4000Hz

High accuracy, stable performance

Strong ability to resist ambient light interference

Class I eye safety

Applications

Robot navigation and obstacle avoidance
Robot ROS teaching and research
Regional security
Environmental scanning and 3D reconstruction
Navigation and obstacle avoidance of home service robots/ robot vacuum cleaners

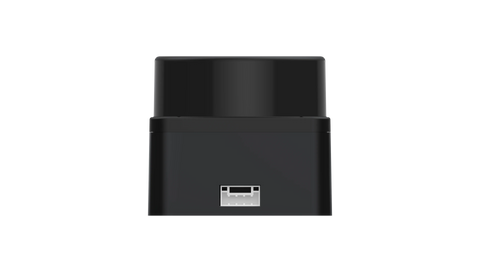

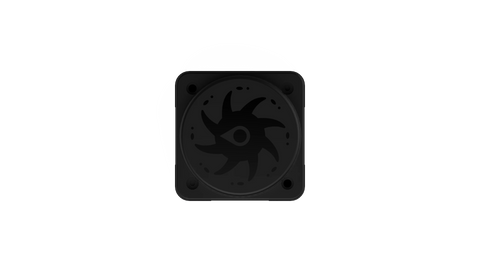

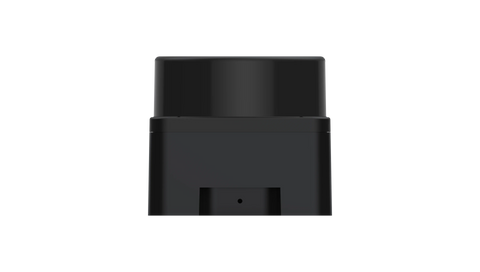

Installation and Dimensions

Development Kit

The principle of time-of-flight (ToF) laser detection

It adopts the mature ToF detection principle, it can be easy to integrate into the whole device with a small size, bringing the robot a 360° two-dimensional environment with strong stability and high precision.

Self-adjusting refresh rate 360° omnidirectional scanning

6-12Hz self-adaptive scanning frequency, the speed can be adjusted independently according to functional needs.

The mechanical structure rotates 360°, continuously obtains angle information, scans and measures in all directions, and outputs point cloud.

Lightweight and delicate, adaptable to a wider range

Smaller appearance and lower power consumption, which can greatly optimize the spatial structure of application products and are suitable for more scenarios.

Brushless motor runs efficiently, 10,000 hours of operation

The brushless motor operates efficiently and has a longer lifespan of 10000 hours.

robot mapping navigation YDLIDAR Tmini Pro LiDAR sensor EAI TOF LIDAR ranging sensor module 12m 360dgree
