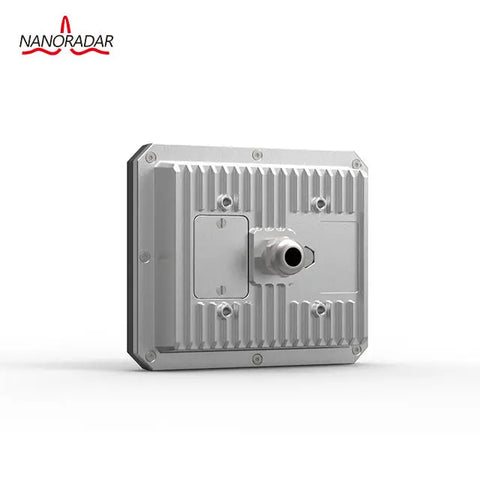

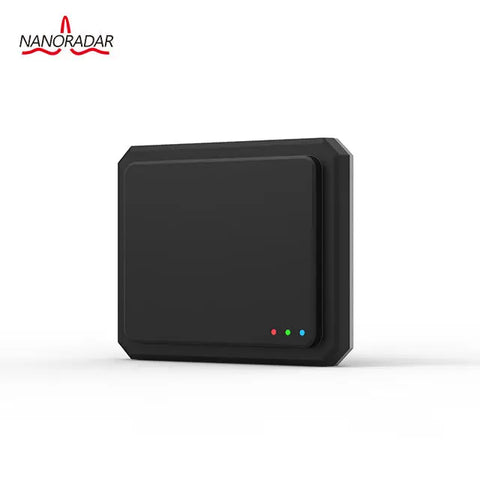

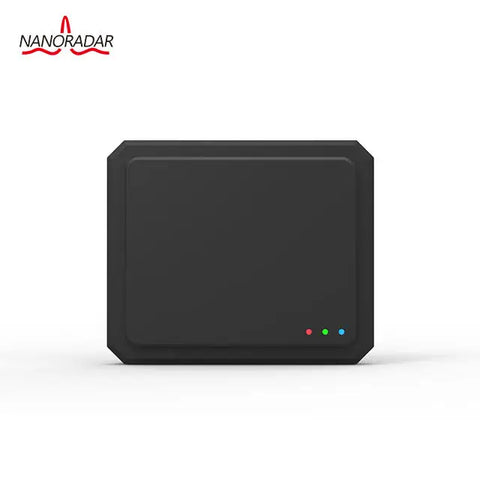

Nanoradar TSR40 mmWave radar sensor for multi-lane traffic speed measurement monitoring 128 targets

Integrated multi-lane traffic measurement radar sensor for high speed measurement

Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.

The speed sign system is made up of following:

Speed detection:Traffic speed radar

Video Records:Camera, Lights

Front Data Process

Unit:Identification on Server

Networking Unit:Switch, Optical Transmitter & Receiver

Multiple installation is controlled at the management center.

Application:

Speed warning of school zones, construction zones, residential areas, and college campuses etc.

Features:

TSR40 is a high-performance multi-target speed radar, using "MIMO+DBF"

technology, it can detect and track multiple vehicle information in multiple lanes in real time,

and periodically report vehicle speed, distance, angle, direction, etc. TSR40 has accurate

positioning and high capture rate. It can simultaneously detect 1-4 lanes, 32 targets, and the

farthest detection distance can reach 90 meters. It can be widely used in multi-lanes speed

measurement and traffic flow count.

Radar Specification:

Transmit frequency	60GHz
Transmit power(EIRP)	20dBm
Response time	20ms
Power	≤4W
Communication interface	RS484/RJ45
Speed range	10~300km/h
Speed accuracy	-1~0km/h
Direction	Coming/going direction could be distinguish
Distance range	5~200km/h
Distance accuracy	±0.5meter
Beam width/TX	Azimuth(-6dB)17deg
Beam width/TX	Elevation(-6dB)56deg
Working voltage	9~16V DC
Working current	0.13A@12V DC
Working temperature	-40~85℃
Working humidity	5%~95%RH
Size	14912642mm
Protection class	IP66

Speed Radar for LED Display

TSR40 multi-lane speed measurement radar adopts "MIMO+DBF" technology,

which can detect and track multiple vehicle information in multiple lanes in real

time, and periodically report vehicle speed, distance, angle, direction, etc. The

TSR40 has accurate positioning and high capture rate. It can simultaneously detect

1-4 lanes, 32 targets, and the farthest detection distance can reach 90 meters.

Compact structure, extremely low power consumption, can automatically calibrate

the angle according to the installation height, and quickly deploy to various

application scenarios on the road.

Nano Radar Advantages:

*Adopt 60GHz MMIC Technology

*Small size, light weight and convenient installation

*Accurate speed measurement and difference within 1km/h

*Trigger distance up to 250-300 Speed measurement range: 5-200km /

*Multiple lanes supported

*All weather resistance, not affected by light, dust, rain, snow, haze and other harsh environment

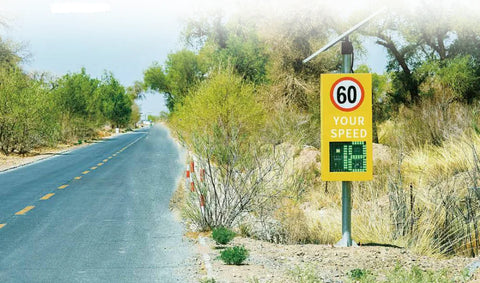

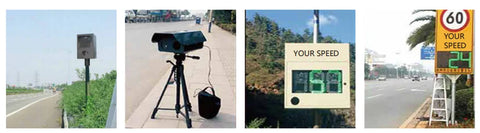

Installation Cases on Real Site

Snapshot Photos

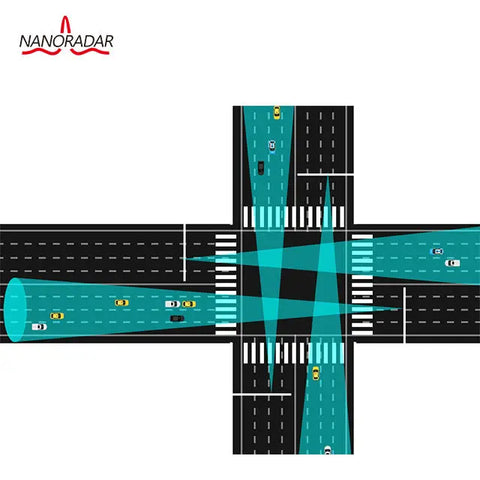

Application Drawing
