The LDS-M300 is a new non-repetitive multi-line lidar launched by Jinhua Lanhai Photoelectricity Technology Co., Ltd.This lidar is compact in size yet powerful in performance. The designers have made full use of the non-repetitive scanning structure to achieve image-level point clouds at a very high cost-performance ratio. Its standout features include a large field of view, high field of view coverage, resistance to sunlight interference, and the ability for multi lidar cross firing simultaneously. Additionally, the lidar has a round and transparent appearance, and its coating is not only resistant to dirt and wear but also possesses an elegant and aesthetically pleasing style that is very eye-catching. The M300 is a rising star and a strong competitor in the multi-line lidar market

	Specs
Model	LDS-M300
Laser Wave Length	905nm±15nm
Measuring Range	0.05-50m@90%；0.1-25m@10%
Measure Frequency	>200KHz
Scan Frequency	10Hz
Echo Mode	Support
Echo Intensity	Yes
Scanning Principle	Non-repetitive Mechanical Scanning
Laser Dot Count	/
Vertical Angle	+0°-+60°
Measure Angle	360°
Vertical Resolution	Horizontal/vertical resolution should be related to the actual point cloud and update speed
Horizontal Resolution	Horizontal/vertical resolution should be related to the actual point cloud and update speed
Ranging Accuracy	±3cm
Range Resolution	10mm
Communication Interface	Ethernet
Optical Interference Resistance	100KLux
Weight	<500g
Supply Voltage	9VDC-24VDC
Working Temperature	-10℃-60℃
Power Dissipation	≤ 4W
Protective Class	IP67
Size（mm）	78mm78mm81mm

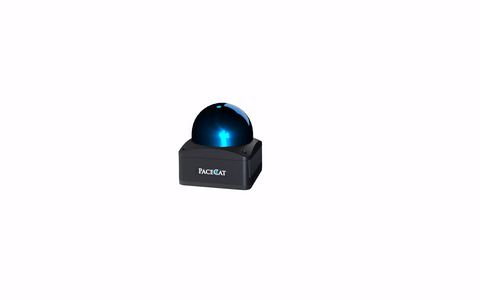

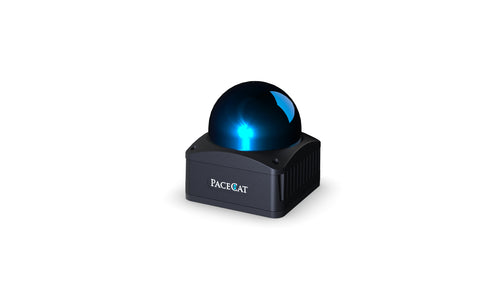

LSD-M300 LiDAR Sensor
