Note:

The shell of LDRR01 radar is metal, and the shell of LDRR03 radar is plastic. Except for the shell, there is no difference between the two models. The metal shell is harder and the plastic shell is more corrosion resistant.

Product Overview:

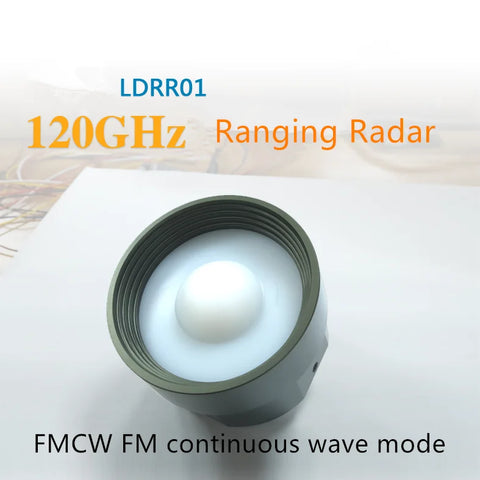

LDRR01 ranging radar adopts FMCW frequency modulated continuous wave mode, microstrip array antenna and independent replaceable lens antenna focusing, can replace laser ranging radar, industrial ultrasonic ranging radar and other products.Small size, compact structure, suitable for a variety of ranging application scenarios.

Main product parameters:

Note: The radar operating frequency band is 120GHz, ranging range of 20 meters as the standard measurement range, according to the size of the object RCS, the maximum detection range will have deviation (up to 30 meters).

Product size drawing:

Interface diagram:

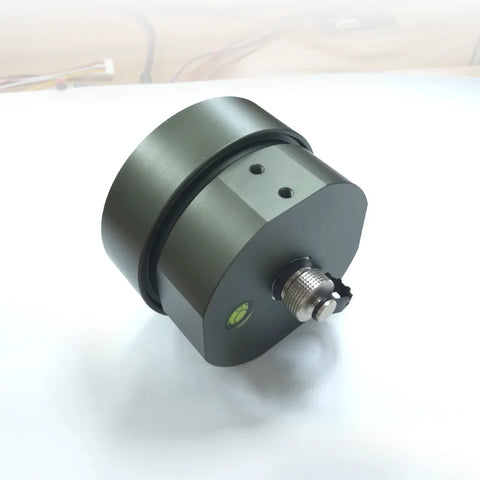

The interface adopts pure copper waterproof aviation plug seat connector 12G, the sequence is :1: VCC, 2: GND, 3:485A, 4:485B

For more information, please contact the seller.

LDRR01 and LDRR03 uses FMCW frequency modulated continuous wave mode ranging radar Millimeter wave radar 20 m 120GHz
