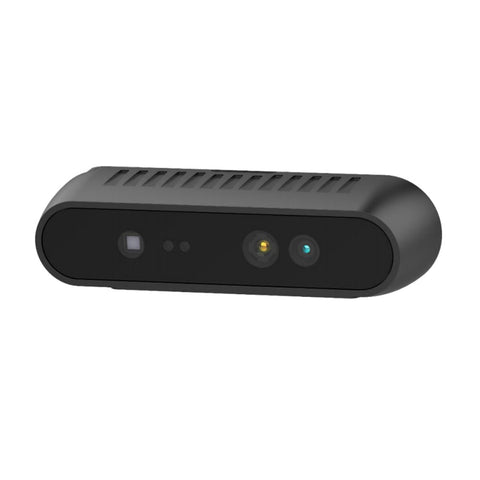

iHawk100R 3D Camera Module - Advanced Structured Light Technology for Precise Depth Mapping

The iHawk100R module is a cutting-edge 3D camera solution powered by structured light technology, designed to provide accurate depth maps for a wide range of applications in industrial control, consumer electronics, and other fields requiring advanced 3D imaging solutions.

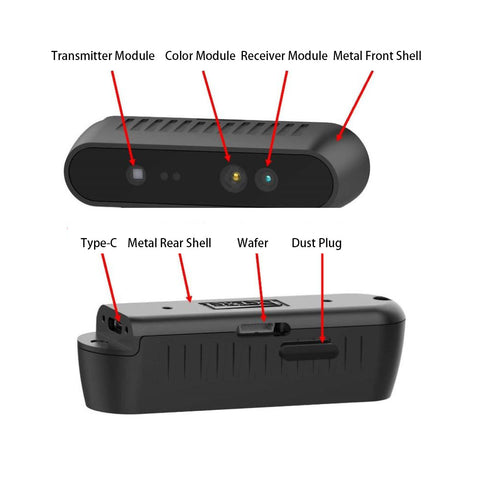

This product integrates three key components:

Optical components for high-precision imaging
Image processing hardware for efficient data handling
Software for seamless operation and integration

The iHawk100R offers high-precision depth maps while eliminating the need for external computational power, as all depth processing is carried out directly within the module. Furthermore, it comes with a self-developed, cross-platform SDK that supports Android, Windows, and Linux, enabling seamless integration into various industry applications.

Product specification

Name	Parameters
Type	iHawk100R
Baseline	40mm

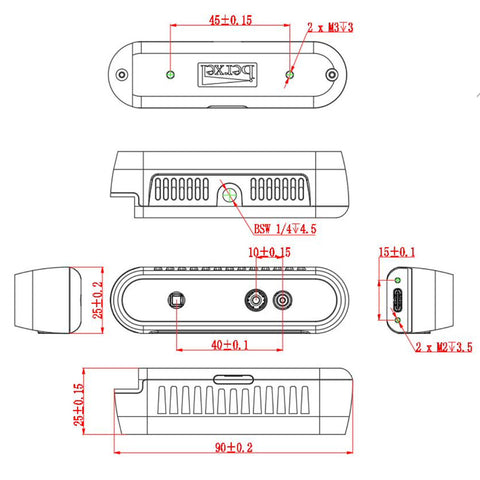

Size	90x25x25 mm
Range	0.3-8.0m
Depth accuracy	±1mm@60cm
Power	2.5W
Hardware interface	Type-C
Power supply	USB 5V
Laser wavelength	940nm
Operating temperature	-10°C~60°C
Depth image	Resolution/Frame rate ： 640 x 400 @30fps FOV： 72°(±3°) x 50.5°(±3°) Format： Raw16
RGB image	Resolution/Frame rate： 640x400@30fps FOV ：72°(±3°) x 50.5°(±3°) Image coding format：MJPEG
Firmware parameters	Support depth&RGB picture output , alignment, support OTA, automatic startup after the upgrade

iHawk 100R 8M 3D Camera – High Precision Structured Light
