iHawkP100E Product Description

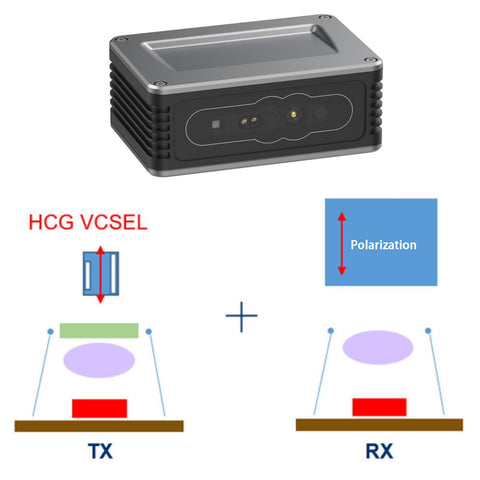

The iHawkP100E is a high-performance 3D structured light and polarized light camera that significantly reduces noise and depth loss in complex scenes. This advanced imaging solution is ideal for industrial control, consumer electronics, and various 3D imaging applications.

Its technical solution delivers high-precision depth maps (sub-millimeter accuracy) and full-HD color images, supporting pixel-aligned fused output. Additionally, it features a self-developed, cross-platform SDK (compatible with Android, Windows, and Linux), ensuring seamless integration across industries.

Product specification

Name	Parameters
Type	iHawkP100E
Baseline	40mm
Size	90x60x37 mm
Weight	200g
Range	0.3-8.0m
Depth accuracy	±1mm@60cm
Power	3.0W

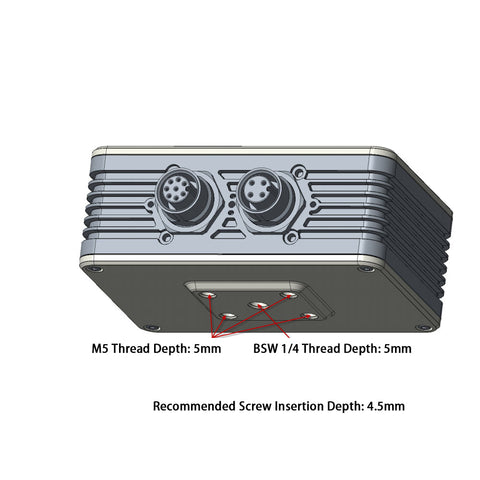

Hardware interface	M12 4-core(Ethernet)/M12 8-core( Power, Signal)
Power supply	DC 12V(9-36V)
Protection grade	IP67
Laser wavelength	940nm
Operating temperature	-10°C~60°C
Depth image ( Dual pictures mode）	Resolution/Frame rate ： 1280 x 800 @7fps / 640 x 400 @25fps FOV： 72°(±3°) x 50.5°(±3°) Format： Raw
RGB image ( Dual pictures mode）	Resolution/Frame rate： 1280 x 800 @7fps / 640 x 400 @25fps FOV ：72°(±3°) x 50.5°(±3°) Image coding format：MJPEG
Firmware parameters	Support depth & RGB output SSupport depth & RGB pictures pixel alignment Firmware upgrade, OTA, self-start after upgrade

iHawk P100E 8M 3D Camera – High-Precision Depth & Color Imaging
