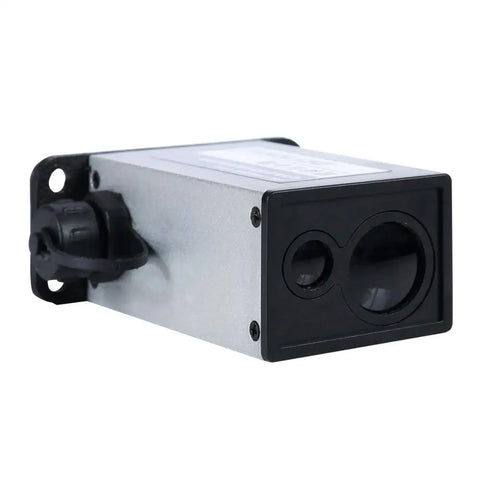

1. Features of FSB-50

The FSB-50 miniature laser ranging sensor is the smallest and most economical product newly developed in the FaseLase bee-eye series. It is used to detect fast-moving objects and fast-moving objects to the surrounding environment. Its speed, accuracy and detection distance can meet the needs of most customers. The main features of the product are fast speed measurement, small size, light weight, low power consumption and low cost. It is mainly used in the fields of UAV height setting and obstacle avoidance, active collision avoidance of vehicles, cleaning robots and AGV path planning. In addition, because FSB-50 can be measured by external timing control, which is convenient for ultra-dense installation, it is the best laser sensor for the detection of the length, width and height of fast-moving road vehicles and the detection of regional pedestrian flow.

characteristic:

 Measuring range: 0.15m ～ 50m

 Measurement frequency: up to 14.28kHz

 Measurement can be performed by external sequence control (easy for ultra-dense installation)

 Adopt first-class human eye safety protection laser, in line with international and domestic standards

 FSB-50 screw terminals are easy to connect

 FSB-50 fast product is designed to prevent dust and water vapor from immersing, and the shell protection grade reaches IP65

 You can download the visual data collection and analysis system on the website of www.faselase.com (standard for special use is not provided)

 A variety of installation methods and rich accessories make the application of FSB-50 simple

2. FSB-50 technical parameters

Measuring distance¹: 0.15m ～ 50m， 12m @ 10%

Accuracy²: ± 5cm (≤20m), 5 ‰ (> 20m)

Measuring speed³: 1.43KHz from the factory, up to 14.28KHz

Output interface: default TTL, others are customized

Minimum display unit: 1cm

Light source: Laser diode 905nm, ≤1mW; comply with EN60825

Eye Safety Requirements for Class I Laser

Power supply: DC + 5V ± 10%, <0.5W

Volume: 30 × 60 × 70 mm

Operating temperature range: -10 ℃ ～＋ 50 ℃

Storage temperature range: －20 ℃ ～＋ 70 ℃

Protection level: IP65; IEC60529

Weight: 75g

Note:

1. Refers to the case where only 20% reflectivity can measure 50m, the farthest range is 100m

2. Accuracy includes repeat accuracy and absolute accuracy

3. The factory default baud rate is 115200bps, the average is 10, and the measurement frequency is 1.43KHz. Only at 460800bps, the average number is 1, the highest measurement frequency can be output is 14.28kHz

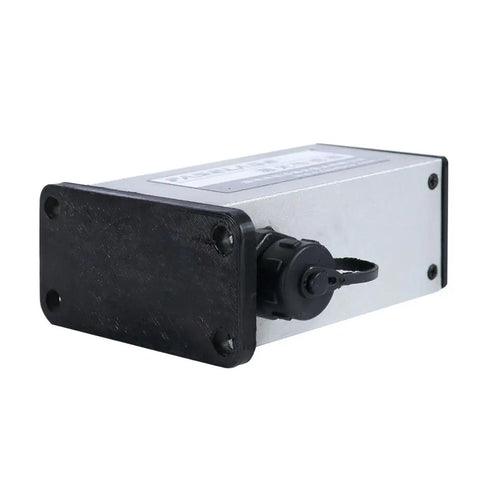

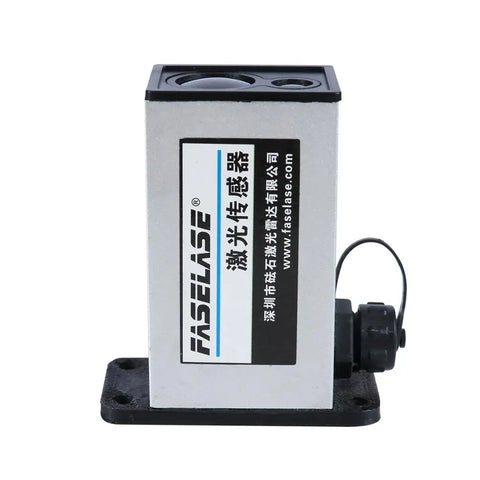

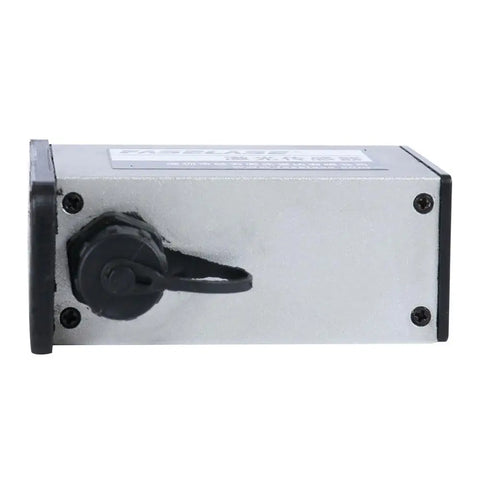

3. FSB-50 appearance and installation dimensions

4. Shipping list

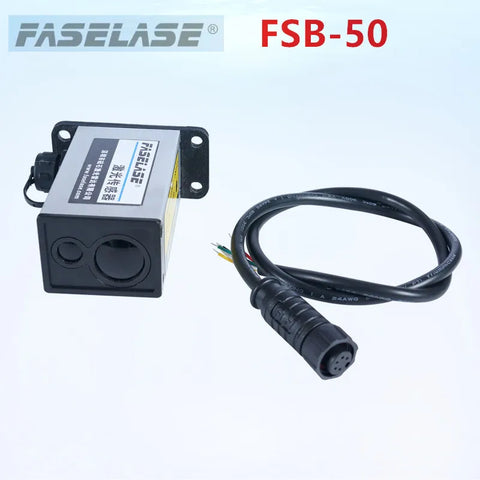

1*FSB-50 host

1* Certificate of conformity

1* 0.5m 5PIN air line
