Data download:

https://www.yahboom.com/study/YDLIDAR-X3

OVERVIEW

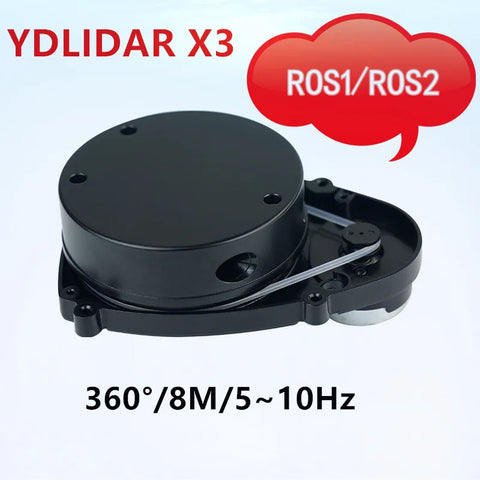

YDLIDAR X3 is a 360 degrees two-dimensional rangefinder (hereinafter referred to asX3) developed by EAl team. Based on the principle of triangulation, it is equipped withrelated optics, electricity, and algorithm design to achieve high-frequency and high-accuracy distance measurement.The mechanical structure rotates 360 degrees tocontinuously output the angle information as well as the point cloud data of the scanningenvironment while ranging.

Product Features

1) 360 degrees omnidirectional scanning ranging distance measurementSmall distance error, stable performance and high accuracy

2) Wide Ranging distance

3) Strong resistance to ambient light interference

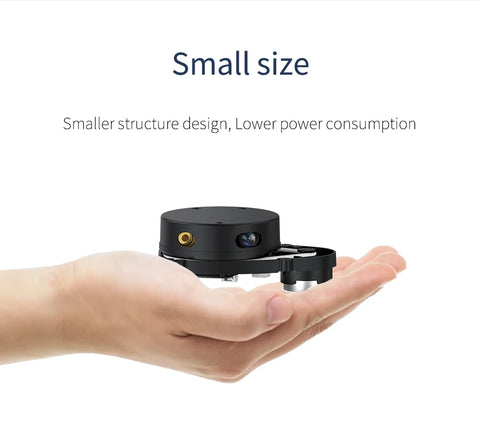

4) Low power consumption, small size and long service lifeLaser power meets Class l laser safety standards

5) Adjustable motor speed

Applications

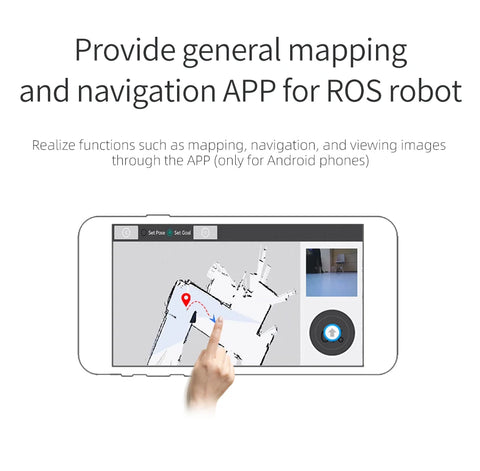

1) Robot navigation and obstacle avoidanceRobot ROS teaching and research

2) Regional security

3) Environmental scanning and 3D reconstruction

4) Navigation and obstacle avoidance of robot vacuum cleaner/ROS Learning robot

EAI YDLIDAR X3 and YDLIDAR X3 Pro Lidar TOF 360 degree Scanning Ranging Sensor 8m for ROS Robotics support ROS1 ROS2
