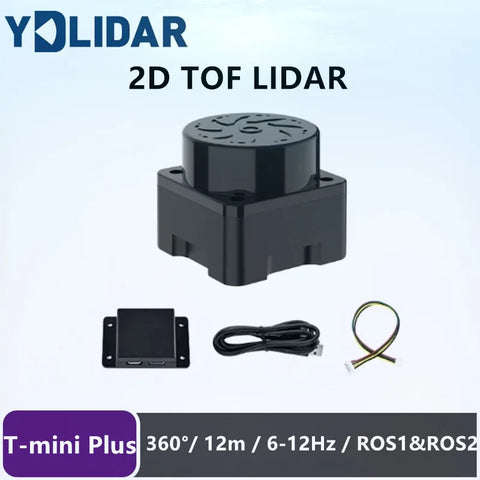

YDLIDAR T-MINI-Plus Lidar Sensor Kit TOF ROS Robot SLAM Navigation 360° 12m Distance Scanner Module Support ROS1 and ROS2

T-MINI-Plus Lidar Description:

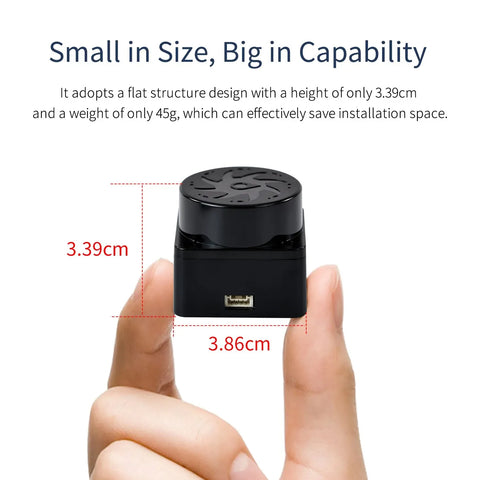

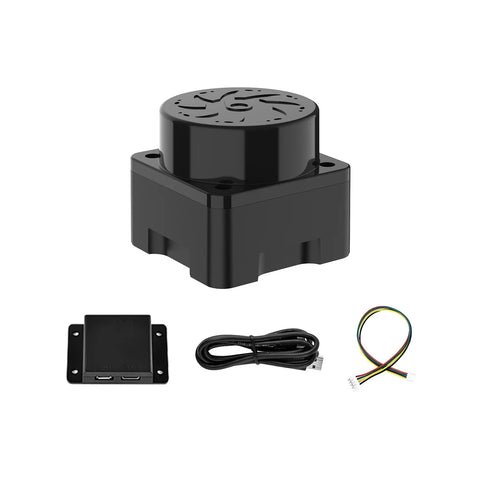

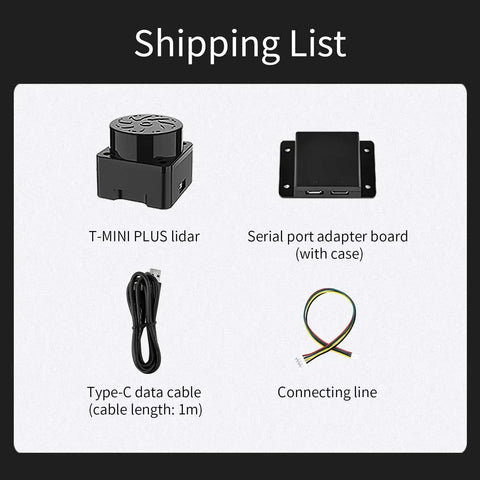

The size of this T-MINI-PLUS lidar is 3.39cm*3.86cm, can be easily installed on some compact devices. It adopts the TOF ranging principle, scanning radius up to 12M, can effectively perceive distant environmental information in 360°. Since it can resist 60kLux light, it is suitable for most indoor and outdoor environments. Based on the ROS robot, we provide ROS1, ROS2 driver code, debugging software and related usage tutorials for user reference. In addition to the separate lidar module, YDLIDAR also provide connecting cables and serial port adapter boards to facilitate user debugging.

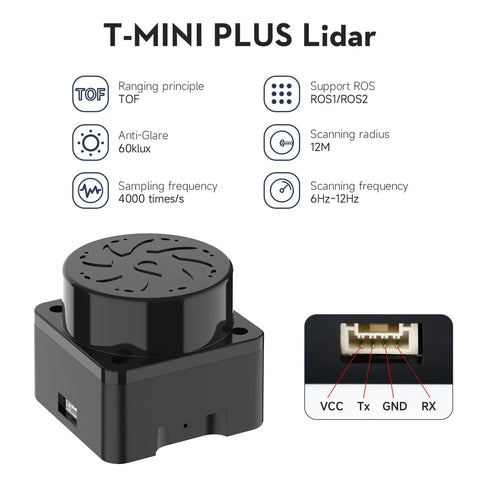

T-MINI-Plus Lidar Faetures:

1. The scanning radius can reach 12M, scanning frequency is 6Hz~12Hz, sampling frequency is 4000 times/S, and the light resistance is 60kLux.

2. Provides ROS1, ROS2 SDK, and Raspberry Pi 5 specific courses.

3. Can be used on Raspberry Pi/Jetson development boards, PC and other devices.

4. Adopts serial communication interface and supports 4.8V-5.2V working voltage.

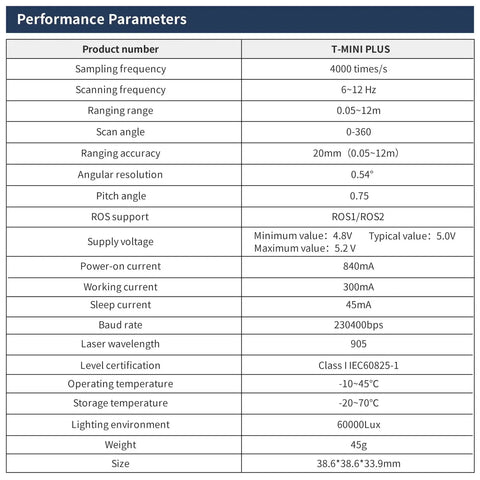

T-MINI-Plus Lidar Parameters:

EAI YDLIDAR T-mini Plus Lidar Sensor Kit TOF ROS Robot SLAM Navigation 360° 12m Distance Scanner Module Support ROS1 and ROS2
