TFmini Plus is a milestone product in Benewake's efforts to promote cost-effective LiDAR solutions. Building on the success of the TFmini, this upgraded version not only maintains the advantages of low cost, small size, and low power consumption, but also delivers substantial performance enhancements.

Now supporting UART, I²C, and I/O communication modes, TFmini Plus offers greater integration flexibility. Interfaces can be easily switched via software commands to meet various development needs.

With improved frame rate up to 1000 Hz, reduced minimum blind zone (down to 10 cm), and optimized internal compensation algorithms, TFmini Plus ensures stable and accurate ranging performance even in complex environments.

Additionally, the product introduces a sealed IP65-rated enclosure, offering dustproof and waterproof protection. It has passed drone-grade vibration tests, further broadening its range of applications to include both indoor and outdoor environments.

🔧 Key Features:

Measuring Range: 0.1 – 12 m
Frame Rate: 1 – 1000 Hz (configurable)
Average Power Consumption: ~550 mW
Weight: 12 g
Protection Level: IP65 (waterproof and dustproof)
Communication Modes: UART / I²C / I/O (switchable)

📌 Applications:

Obstacle avoidance in robotics
UAV altitude hold and landing assistance
Industrial and smart farming level sensing
AGV navigation and collision avoidance
IoT embedded systems requiring compact LiDAR

💡 The Good News!

TFmini Plus has been upgraded!

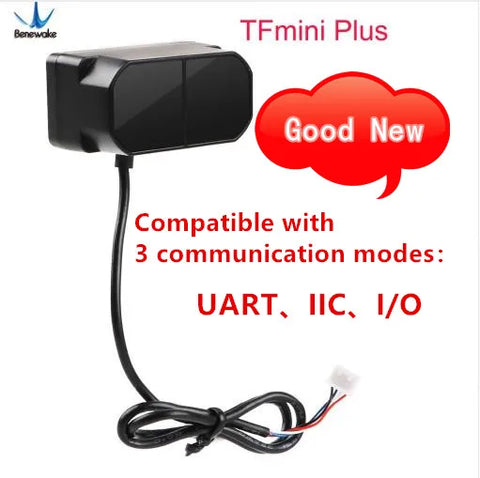

Now supporting UART, I²C, and I/O interfaces—configurable via command—this upgrade enables more flexible system integration and broader hardware compatibility.

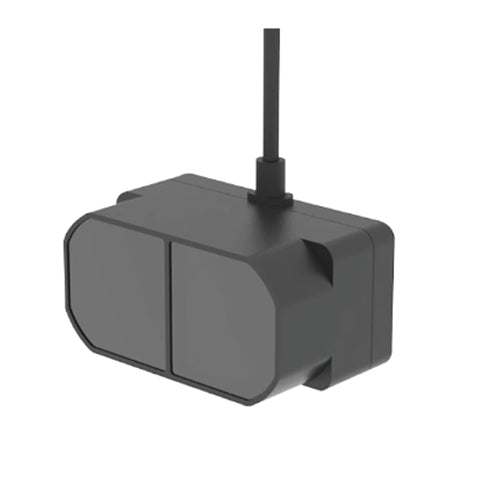

Benewake TFmini Plus ToF LiDAR Sensor – 12m IP65 Laser Range Module
