Product Description

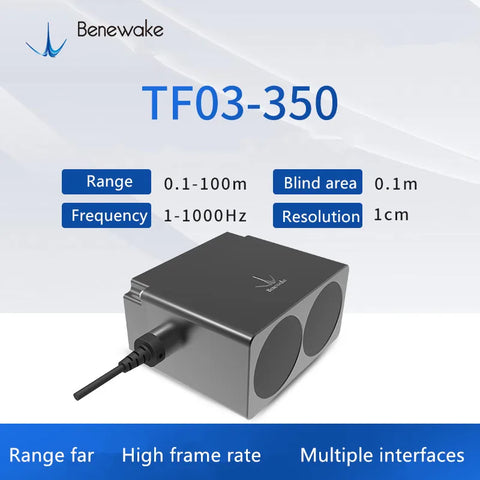

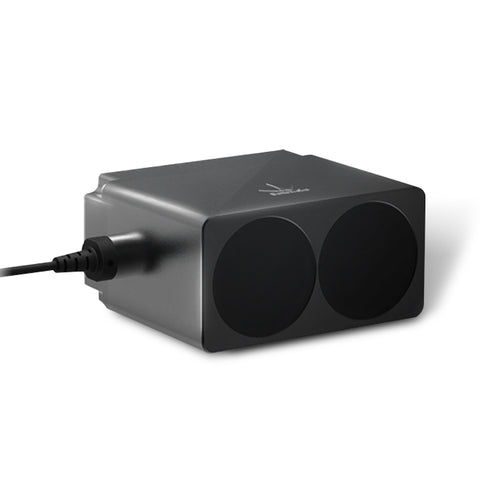

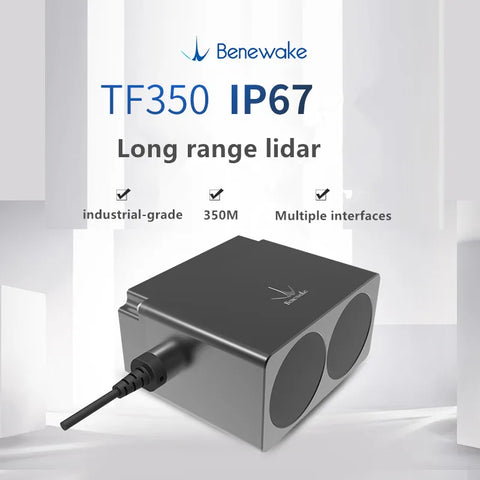

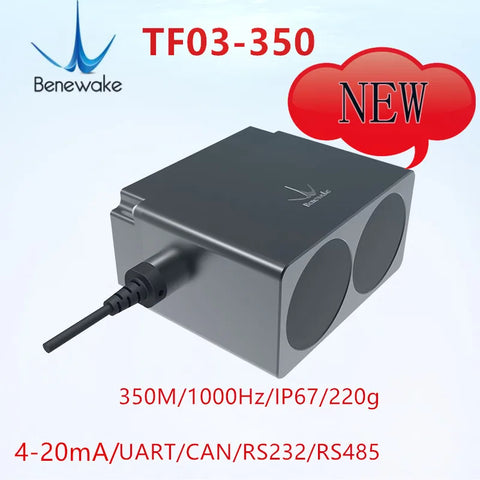

The Benewake TF350 is a high-performance, ultra-long-range single-point ToF (Time-of-Flight) LiDAR sensor engineered for industrial-grade applications. With a maximum range of up to 350 meters, the TF350 is designed for precision distance sensing in both indoor and outdoor environments. It features integrated algorithms for rain, fog, and high-light compensation, ensuring reliable data in even the harshest conditions.

With a narrow field of view (0.35°), the TF350 enables precise target acquisition, while its up to 7,000 Hz frame rate ensures fast and responsive measurements. The sensor’s robust IP67-rated aluminum alloy housing and infrared high-transmittance glass window provide excellent protection against dust, water, and mechanical stress.

Whether used in smart transportation, UAVs, perimeter security, level detection, or industrial automation, the TF350 offers multiple interface options (UART, CAN, RS485, RS232) and user-configurable modes, delivering exceptional adaptability, compact size, and competitive performance-to-cost ratio.

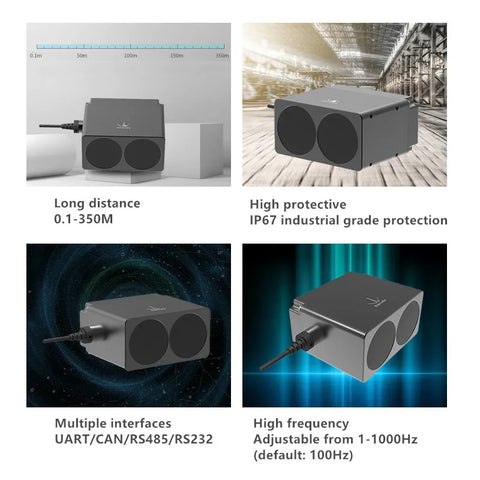

Key Features

📏 Up to 350 m detection range
🌧️ Rain & fog compensation algorithms
🔒 IP67 protection, durable aluminum alloy shell
🔦 Strong anti-interference up to 100 KLux sunlight
🎯 Narrow 0.35° field of view for accurate targeting
⚡ High frame rate up to 7 kHz
🔧 Multiple customizable parameters & user-configurable modes

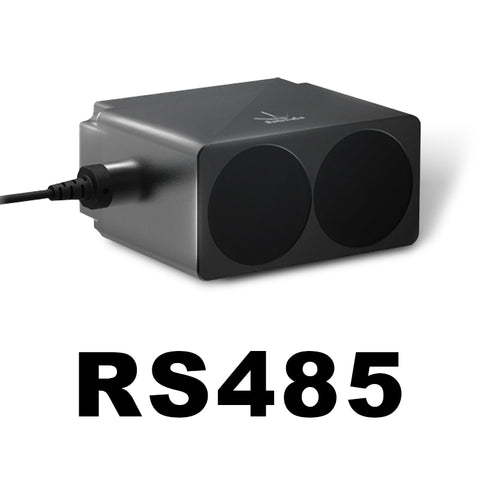

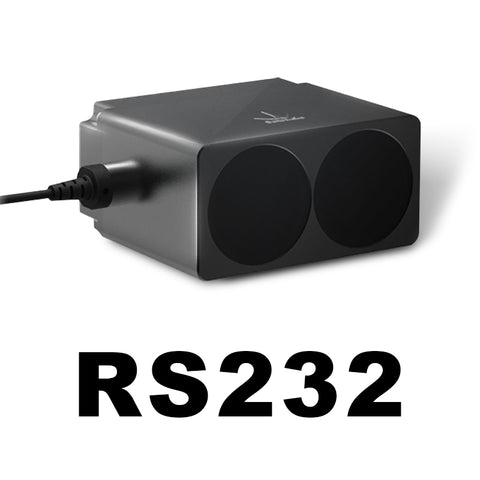

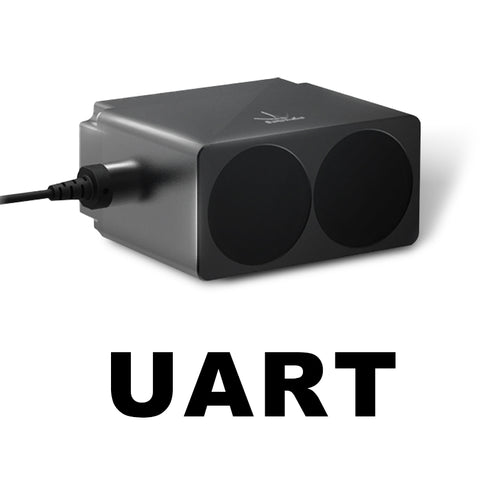

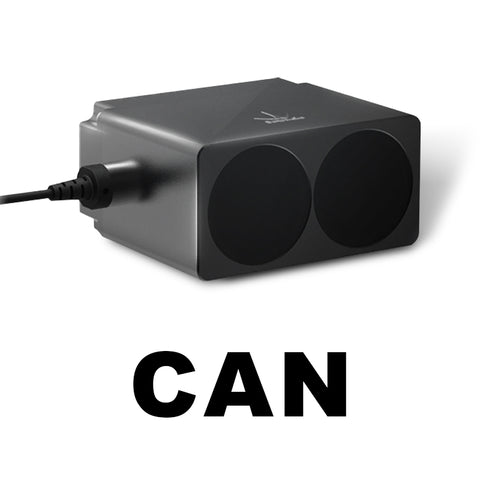

🔌 Interfaces: UART / CAN / RS232 / RS485

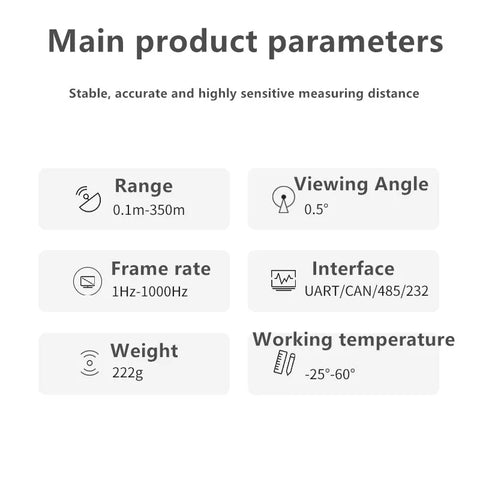

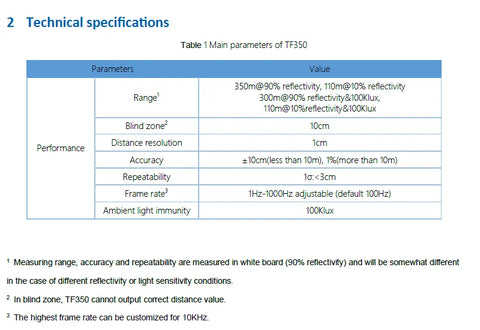

Technical Specs Summary

Parameter	Value
Detection Range	0.1 – 350 m
Frame Rate	Up to 7,000 Hz
Field of View	0.35°
Protection Level	IP67
Light Resistance	Up to 100 KLux
Interfaces	UART, CAN, RS232, RS485
Operating Temp	-20°C ~ 60°C

Benewake TF350 LiDAR – 350m Ultra-Long Range IP67 Industrial Sensor
