Product Description

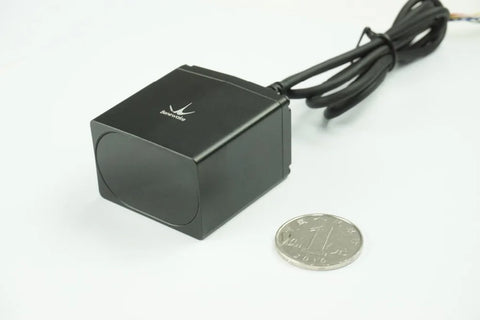

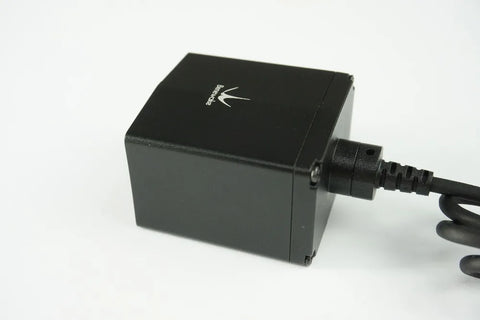

TF03-100/180 is the third-generation industrial-grade LiDAR sensor from Benewake, designed for long-range applications up to 180 meters. Building upon the strengths of its predecessors, TF03 significantly upgrades more than ten key performance indicators while offering customizable features for various use cases.

Despite its long-range capabilities, TF03 remains lightweight and compact, making it ideal for drones, smart transportation, and security monitoring. It also features IP67-rated protection, multiple interface options, and supports custom parameter settings for greater adaptability in demanding industrial environments.

Key Features

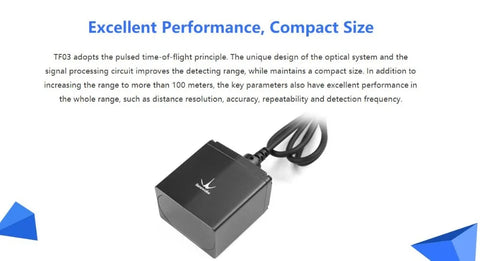

01. Outstanding Performance in a Compact Size
TF03 integrates a proprietary optical system and signal processing design, enabling precise and reliable detection up to 180 meters. Its accuracy and frame rate remain consistent across the full range. A lighter, shell-free version (only 10g, 31.0 mm × 30.2 mm × 19.2 mm) is also available for space-constrained platforms like UAV gimbals.

Measurement Range: Up to 180 m
Minimum Blind Zone: 0.1 m
Max Frame Rate: 7 kHz
Ambient Light Resistance: 100 KLux

02. Rugged IP67 Housing with Multiple Interfaces

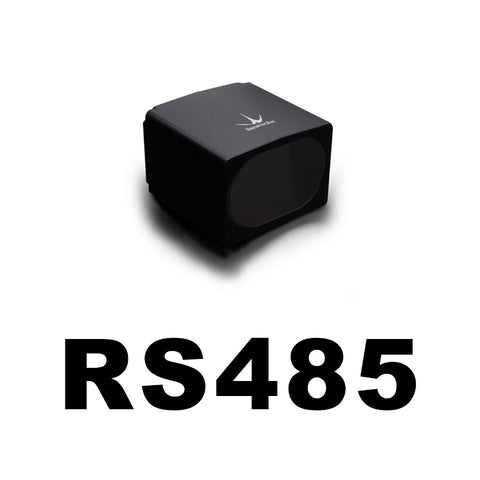

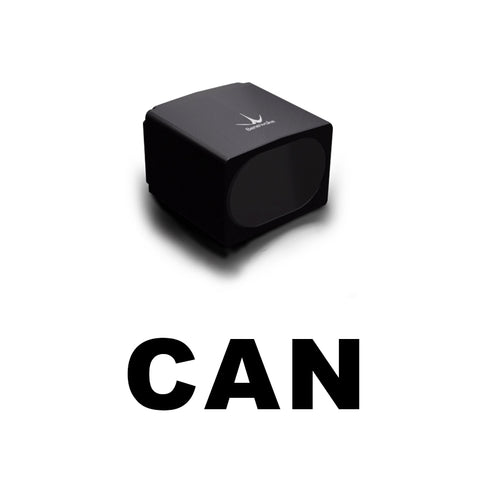

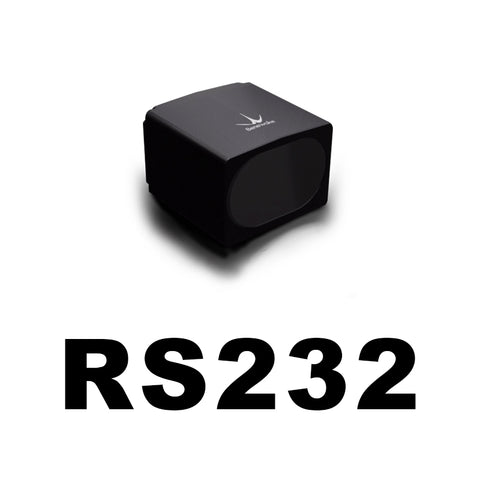

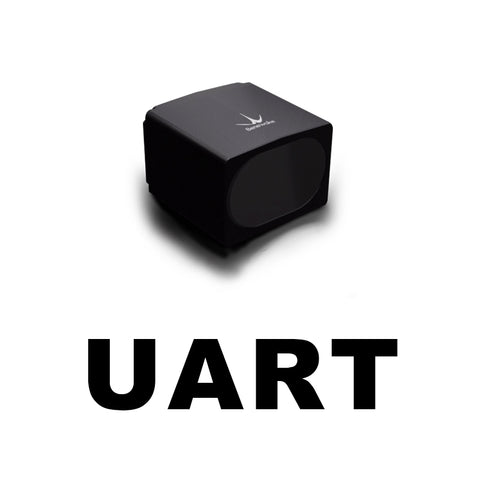

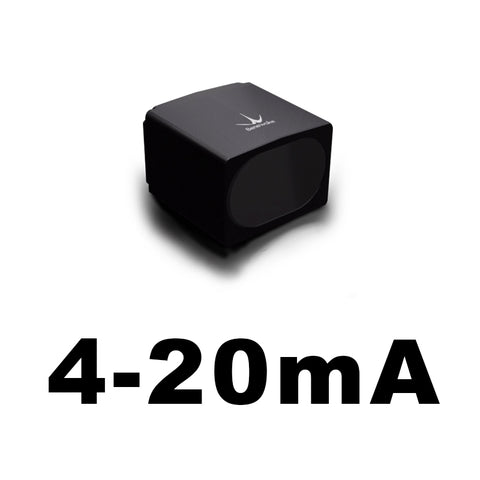

The TF03 features a reinforced aluminum alloy shell and high-transmission IR glass to enhance durability in harsh conditions. It supports a wide range of communication interfaces including UART, CAN, RS-232, RS-485, and analog (4–20 mA), making it compatible with diverse industrial systems.

03. Customizable Operation Modes
Users can configure key settings such as output frame rate, baud rate, trigger modes, and over-range thresholds. Built-in BootLoader functionality allows firmware upgrades directly via user terminal. A special variant for UAV applications is available upon request.

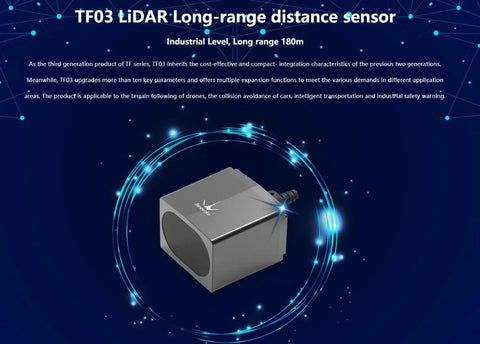

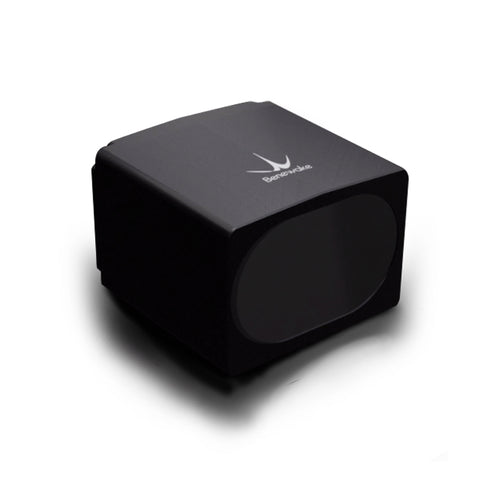

TF03 LiDAR(Long-range distance sensor)

As the third generation product of TF series, TF03 inherits the cost-effective and compact-integration advantages from the previous two generations. Meanwhile, TF03 upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application scenarios.

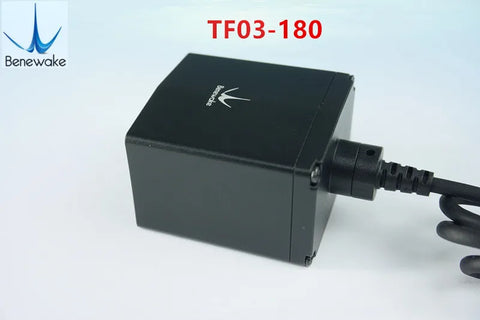

TF03-180 is a industrial high-speed LiDAR with a range of up to 180m. TF03-180 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions①. Different built-in operating modes let customers change parameters and configuration to meet their need.

Certificate

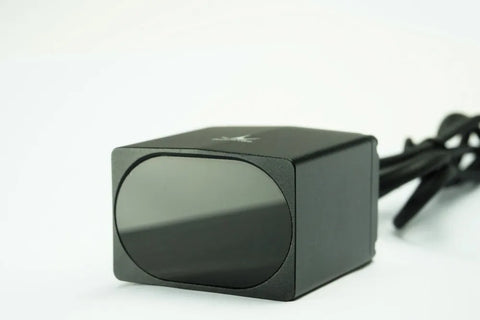

Benewake TF03-100/180 Long-Range Industrial LiDAR Sensor – IP67 Rated
