AllSENSE S150: High-Precision SPAD-Based Solid-State LiDAR for Advanced 3D Sensing

The AllSENSE S150 is a state-of-the-art solid-state LiDAR system that leverages SPAD (Single-Photon Avalanche Diode) technology for ultra-precise 3D imaging and distance measurement up to 50 meters. Engineered for high-performance spatial sensing, the S150 delivers superior depth accuracy using time-correlated techniques, perfect for next-gen robotics, smart automation, and AI-driven applications.

Key Features:

Advanced SPAD dToF Technology: Provides exceptional depth precision for 3D vision applications.
High-Speed Depth Mapping: With real-time processing and onboard laser driver control, ensuring fast and accurate data capture.
Versatile Integration: Supports I2C, SPI, and MIPI interfaces for seamless integration into autonomous navigation, industrial automation, UAVs, gesture recognition, and smart infrastructure.
Compact & Efficient: The S150’s small form factor and low power consumption (<10W) make it ideal for integration into a variety of platforms.

Designed for a wide range of industries, the S150 is ideal for robotics, AGVs, UAVs, security monitoring, and smart cities. With a robust IP67 rating, it thrives in harsh environments, providing reliable performance in any condition.

Technical Specifications:

Laser Wavelength: 905nm, Class 1 Laser Safety
Detection Range: 30m at 10% reflectivity, up to 50m max distance
Accuracy: ±5cm
Field of View (FOV): Horizontal 120° (-60°~~+60°), Vertical 50° (-25°~~+25°)
Resolution: 0.33° (H) x 0.33° (V)
Point Rate: 540,000 points/s at 10Hz
Operating Temperature: -20°C to 55°C

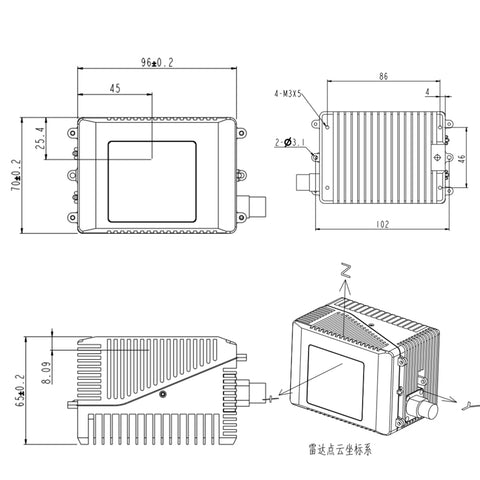

Dimensions: 108mm x 69mm x 49mm, Weight: 600g
Power Supply: DC 9-16V, power consumption <10W

Technical Specifications

Technology	SPAD dToF
Scan	Flash Fully Solid-State
Laser Wavelength	905nm
Laser Safety	Class1
Detection Range	30m@10% reflectivity，100Klux
Max Distance	50m
Min Distance	0.1m
Accuracy	±5cm
Horizontal FOV	120° （-60°~﹢60°）
Vertical FOV	50° （-25°~﹢25°）
Resolution	0.33° （H) x 0.33° (V)
Frame Rate	10Hz
Resolution	360 x 150
Point Rate（single return)	540,000pts/s @ 10Hz

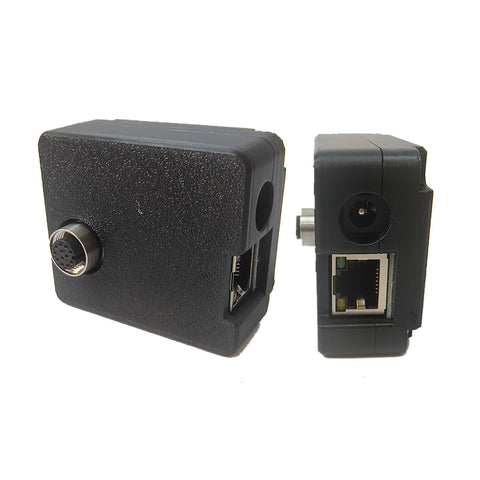

Data Port	1000 Mbps Ethernet
IMU	Supported
Power Supply	DC 9 ~ 16V
Power	<10W
Operating Temperature	-20~55℃
IP Rating	IP67
Dimensions	108mmx69mmx49mm
Weight	600g

Why Choose the AllSENSE S150?

Exceptional Accuracy & Reliability for 3D mapping
High-Speed Processing with built-in algorithmic support
Compact Design for easy integration
Versatile Applications across industries, from robotics to smart infrastructure

This revision aims to make the text clearer, highlighting the core features of the product while keeping it concise and impactful. It also emphasizes the versatility of the S150 across industries, which is key for attracting potential customers. Let me know if you'd like further adjustments！
