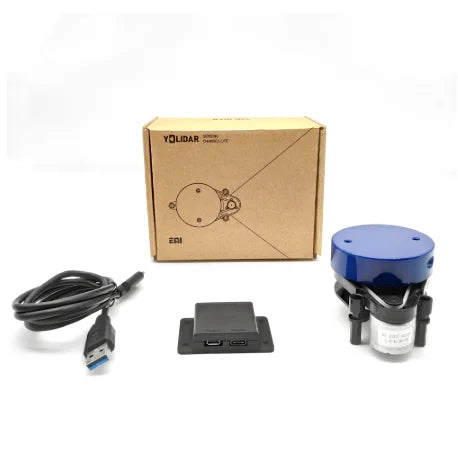

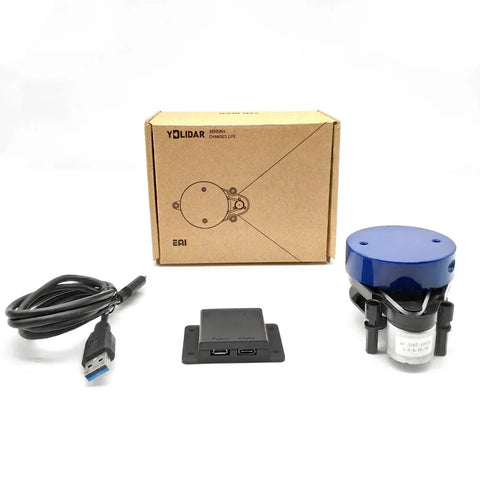

Shipping list:

1*lidar sensor

1*USB cable

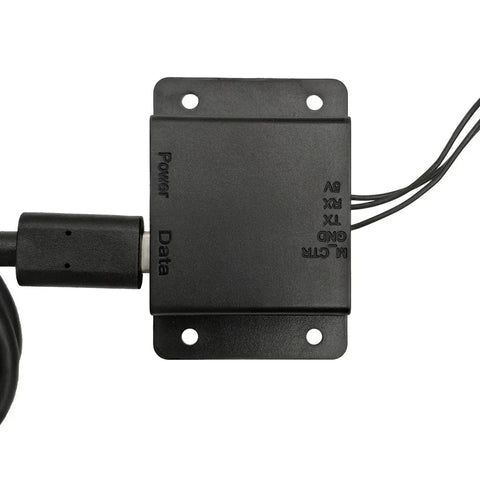

1*transfer module

OVERVIEW

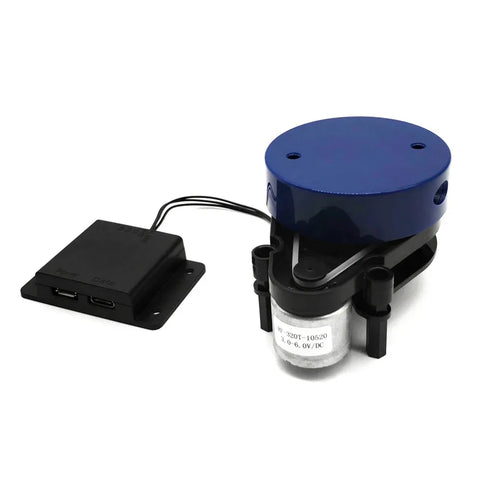

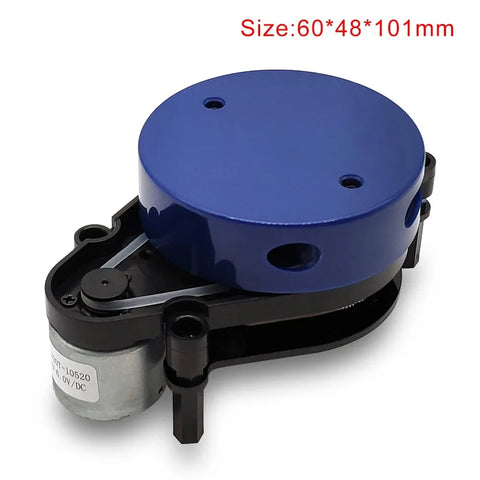

YDLIDAR X2L is a 360-degree two-dimensional rangefinder (hereinafter referred to as X2L) developed by YDLIDAR team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Product Features

 360 degree omnidirectional scanning ranging distance measurement

 Small distance error,stable performance and high accuracy

 Ranging distance is no less than 8m

 Strong resistance to ambient light interference

 Low power consumption, small size and long life

 Laser power meets Class I laser safety standards

 Adjustable motor speed(7HZ recommend)

 Ranging frequency up to 3kHz (support customization)

Applications

 Robot navigation and obstacle avoidance

 Robot ROS teaching and research

 Regional security

 Environmental scanning and 3D reconstruction

 Commercial robot /Robot vacuum cleaner

8M radius measurement range 3000Hz ranging frequency 7Hz scanning frequency Optical magnetic technology YDLIDAR X2L
